OPERATING MANUAL PSEN op4F/H-A series
1
.2.2 Height of protected field
T
he height of the protected field is understood to be the height protected by the safety light
curtain.

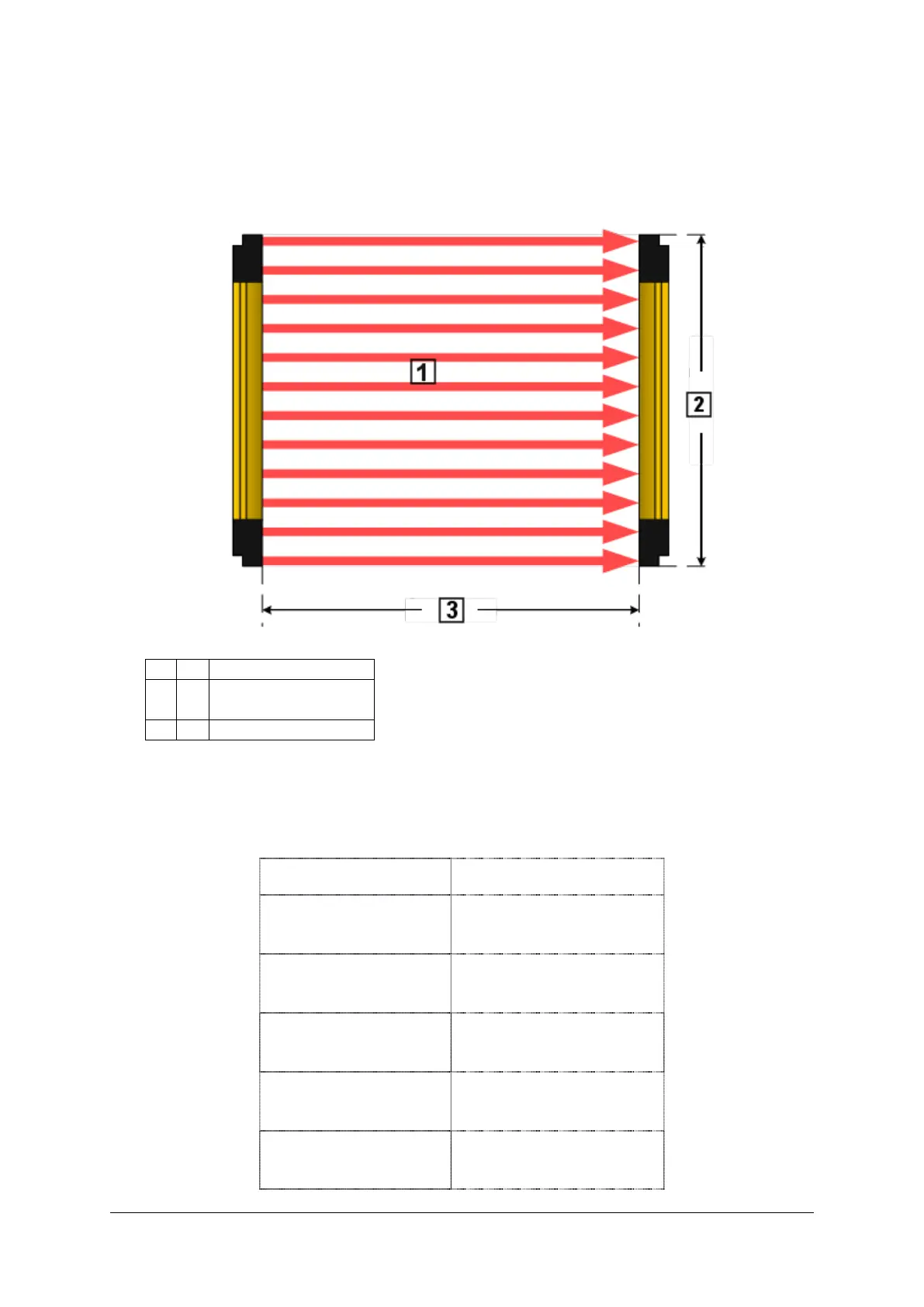

Fig. 2 – Height of protected field
1
=
Protected field
2
=
Height of protected
field
3
=
Operating range
T
he height monitored by the PSEN op4F/H-A corresponds to the overall height of the light
curtain.
With reference to the previous diagram, the height of the protected field can be taken from
the table below.
Model
Height of protected field
(mm)
PSEN op4F-A-14-030/1
PSEN op4H-A-30-030/1
300
PSEN op4F-A-14-045/1
PSEN op4H-A-30-045/1
450
PSEN op4F-A-14-060/1
PSEN op4H-A-30-060/1
600
PSEN op4F-A-14-075/1
PSEN op4H-A-30-075/1
750
PSEN op4F-A-14-090/1
PSEN op4H-A-30-090/1
900
8
1003067-EN-04
