OPERATING MANUAL PSEN op4F/H-A series
7.7.7 Partial muting
T
he muting type can be configured: total or partial muting. Partial muting can prove useful
when the user wishes to limit the effects of the muting function exclusively to the selected
zones.
With ACM configuration, the user can select a maximum of 5 muting zones, each of which is
defined in accordance with the following parameters:
- Position: First beam of muting zone (starting from the user display cover).
- Dimensions: Number of beams in muting zone

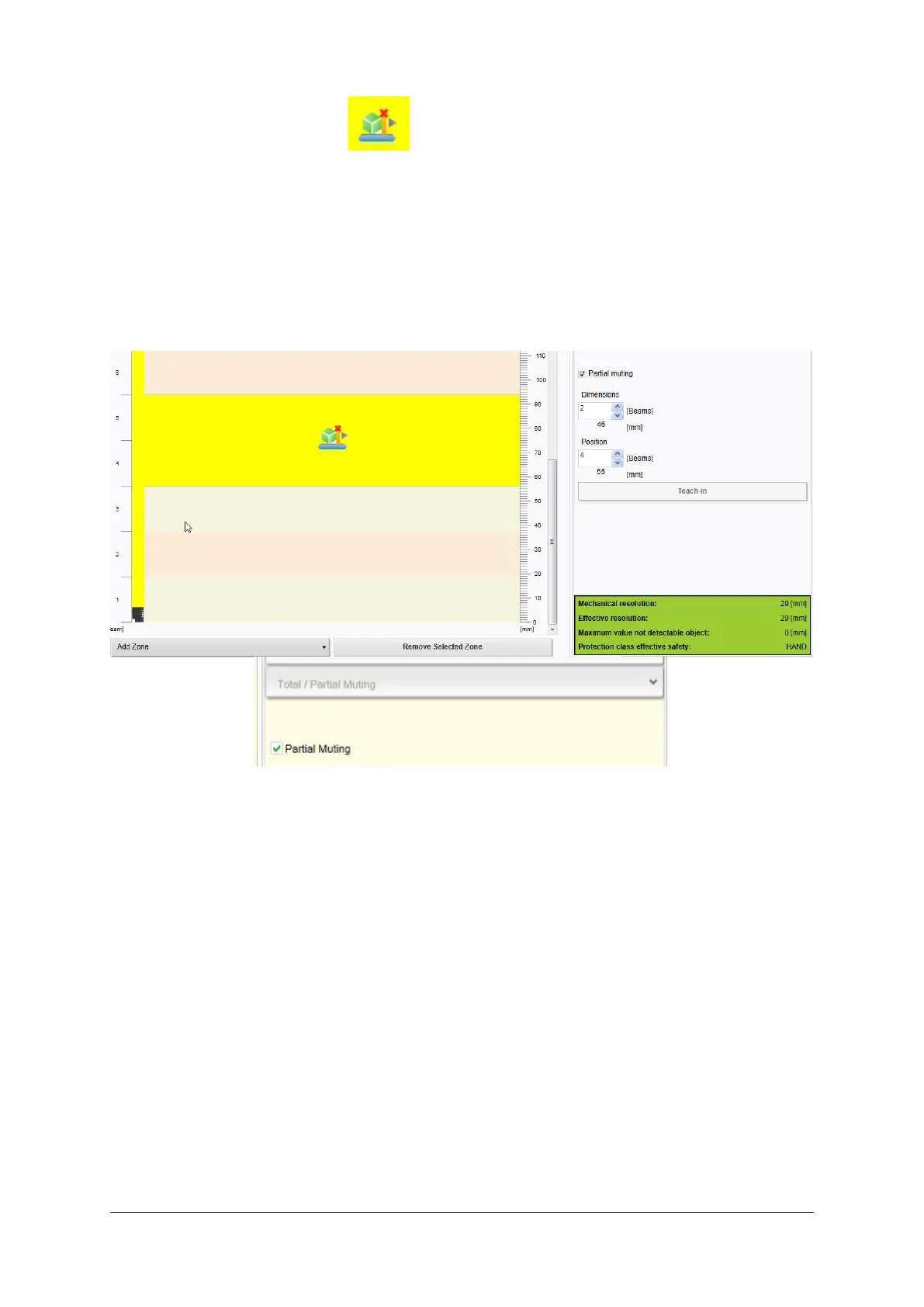

ACM configuration: Selection of partial muting
S
elect to enable the "partial muting" function.
• To add a new muting zone above the selected area:
Click the "Add area" button and then select: "Add after selected beam"
• To add a new muting zone below the selected area:
Click the "Add area" button and then select: "Add before selected beam"
• To remove an existing muting area:
Click the "Remove selected area" button.
• S
etting the muting zone:
Enter the values for dimensions and position of an area in the software. The display of the
s
oftware is adapted accordingly. When performing step "2 Programming" and the report has
been accepted, these values are also set in the light curtain or in the PSEN op Advanc
ed
Programming Adapter.
52
1003067-EN-04
