OPERATING MANUAL PSEN op4F/H-A series

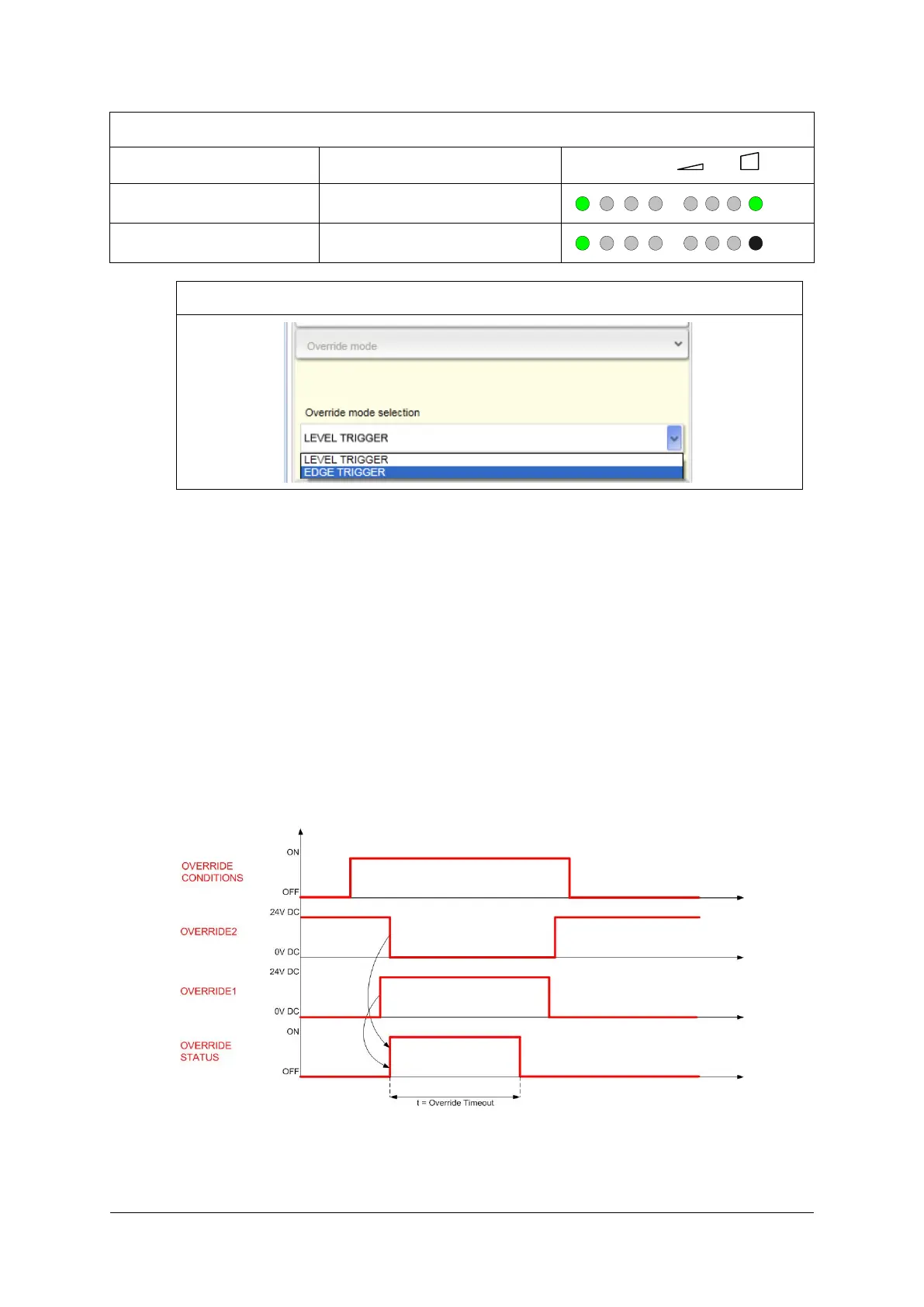

BCM configuration: Override mode
PWR OSSD EDM ACM
LEVEL
Level LED 8 ON green
Edge LED 8 OFF
ACM configuration: Override mode
7.8.2 Override timeout
BCM
mode
The timeout of the override status is 120 seconds in both operating modes. If the override
conditions remain active and both contacts remain closed for more than 120 seconds (this
condition only applies when the mode is activated by level), the override will go low after a
maximum of 120 seconds.
ACM mode
The override timeout represents the maximum duration of the override. This time can be set,
from a minimum of one minute to a maximum of 256 minutes.
Once the timeout has elapsed the override ends, even if the conditions that led to the
activation are still present and the override inputs are active.
OVERRIDE STATE: This is an output signal which provides the user with information as to
whether the override inputs are active and the override conditions are present.
Fig. 52 – Override timeout timings
1003067-EN-04
55
