7.7.6 Muting filter
This function prevents muting from being activated unintentionally.
The muting filter is a filter arranged on the muting inputs: Transitions of the muting signal
from high to low are only considered valid if they are maintained for a period (Tf) of over
100 ms.
If this function is disabled, the logic level of the muting sensors will correspond to the signal
level on the wire.

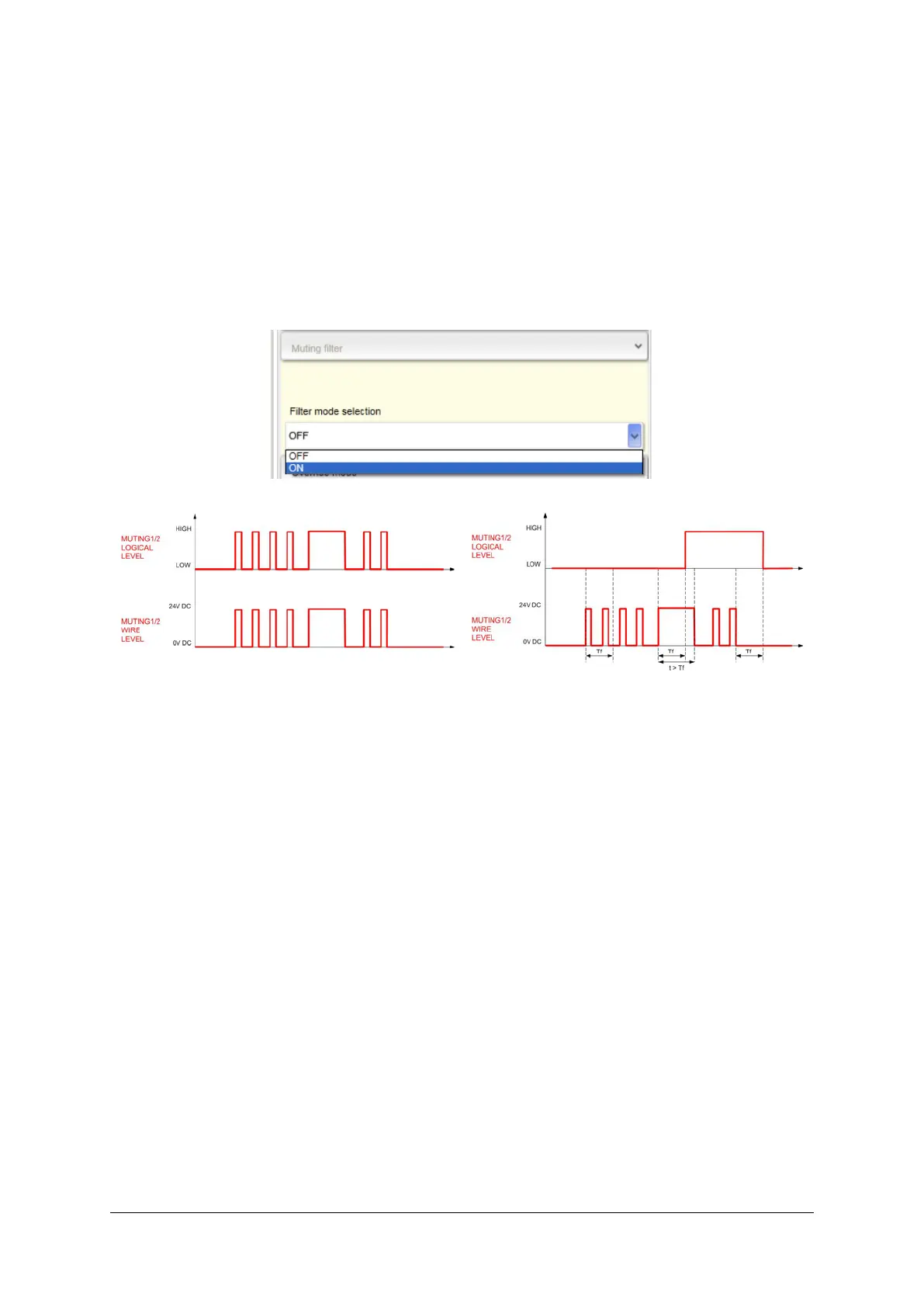

ACM configuration: Muting filter
F
ig. 47 – Muting filter disabled
Fig. 48 – Muting filter enabled
1003067-EN-04
51
