OPERATING MANUAL PSEN op4F/H-A series
ACM configuration: Override timeout
7.8.3 Override restart
This can only be selected when the light curtain is in manual restart mode; users can select
the type of override restart: normal or automatic.
The RESET/RESTART/ALIGN input (Pin 3 of the 12-pin M12 connector – RX-side) must be
connected to a 24 V DC N/O contact.

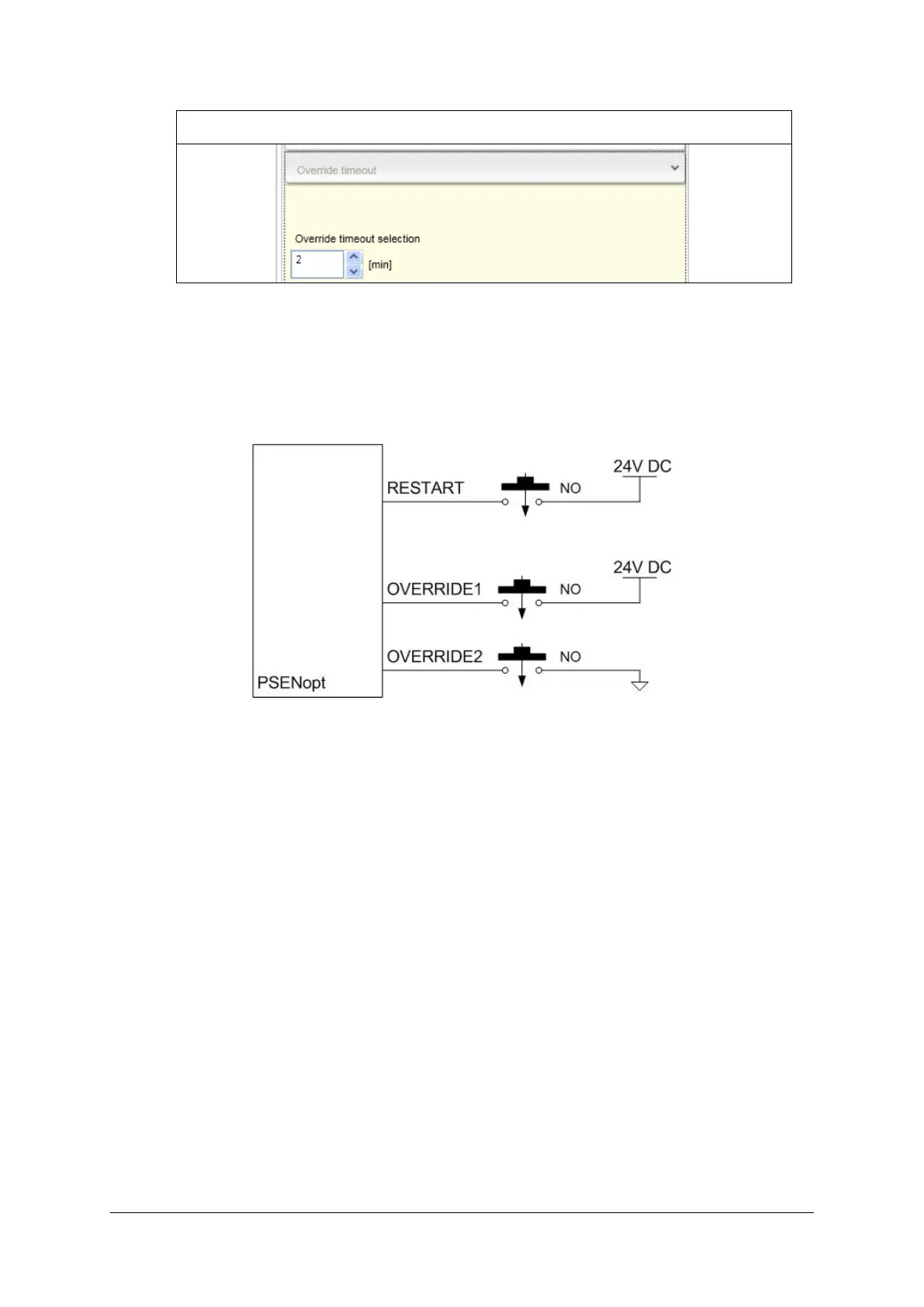

Fig. 53 – Override restart connection
56
1003067-EN-04
