First commissioning
Operating Manual PSEN sc B 5 Series
1004508-EN-02
52
WARNING 1
. The output is used as a warning output. Outputs Pin 5 and 6 are reserved
for OSSD1 and OSSD2 and cannot be changed.
Click on the arrow
. The next window Configure zone sets is opened.

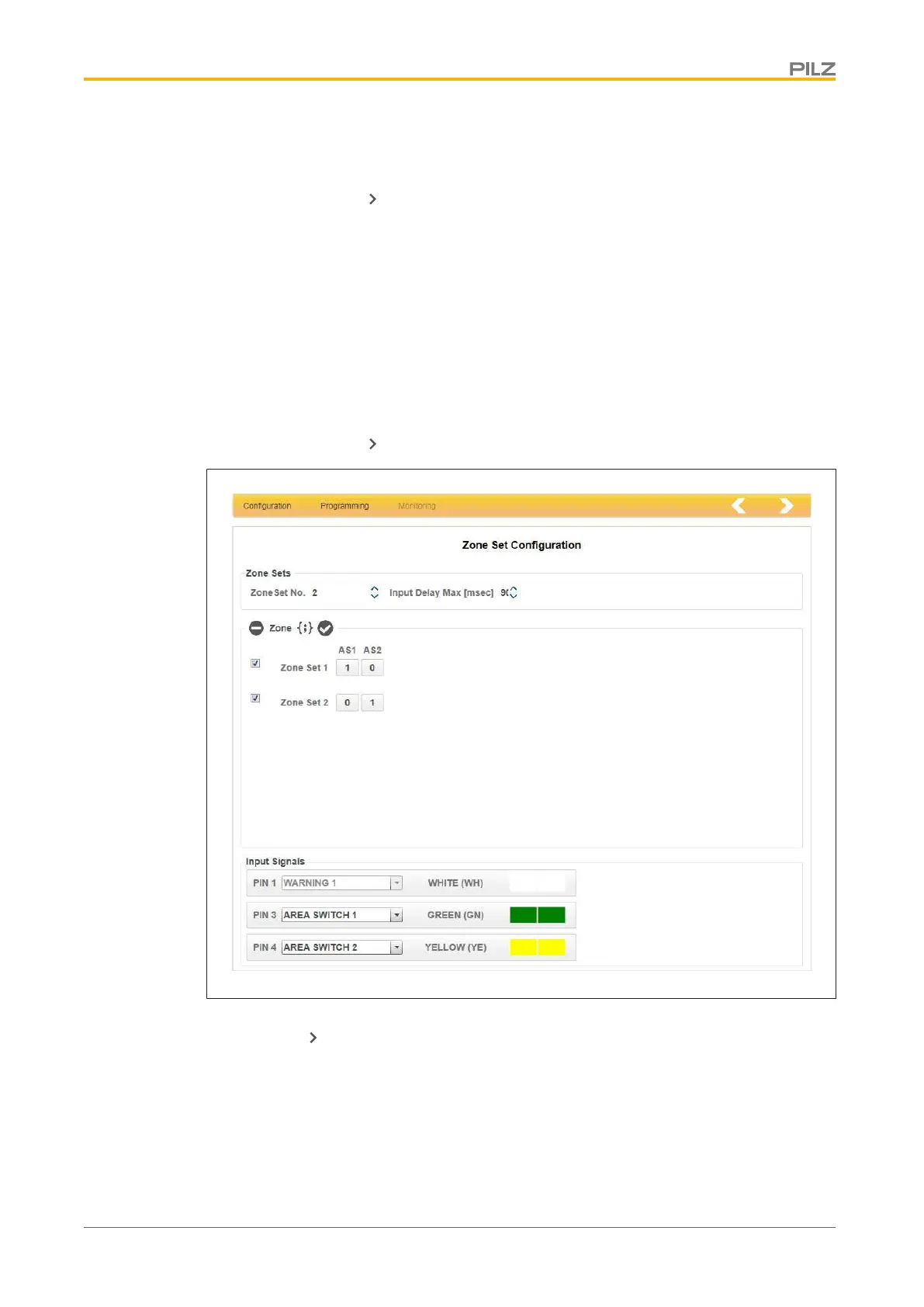

5. Select Zone set = 2 and enter for the PINs 3 and 4 each the Zone switching. Enter the
input delay.
For the configuration of switchable zones the PINs 3 and 4 have to be assigned to the
zone sets.
For Zone set 1 enter AS1 = 1.
For Zone set 2 enter AS2 = 1.
For PIN 3, enter
AREA SWITCH 1
.
For PIN 4, enter
AREA SWITCH 2
.
Click on the arrow
. The next window Input configuration is opened.
6. For Restart select the value Manual and define the Restart time (min. 80ms). Click on
the arrow
. The next window Configuration detection capability is opened
The wiring of inputs has already been configured by the previous selection.
7. Under Multiple evaluation, define the number of consecutive scans needed for detec-
tion.
Increasing the number of consecutive scans will increase the response time of the
safety laser scanner.
