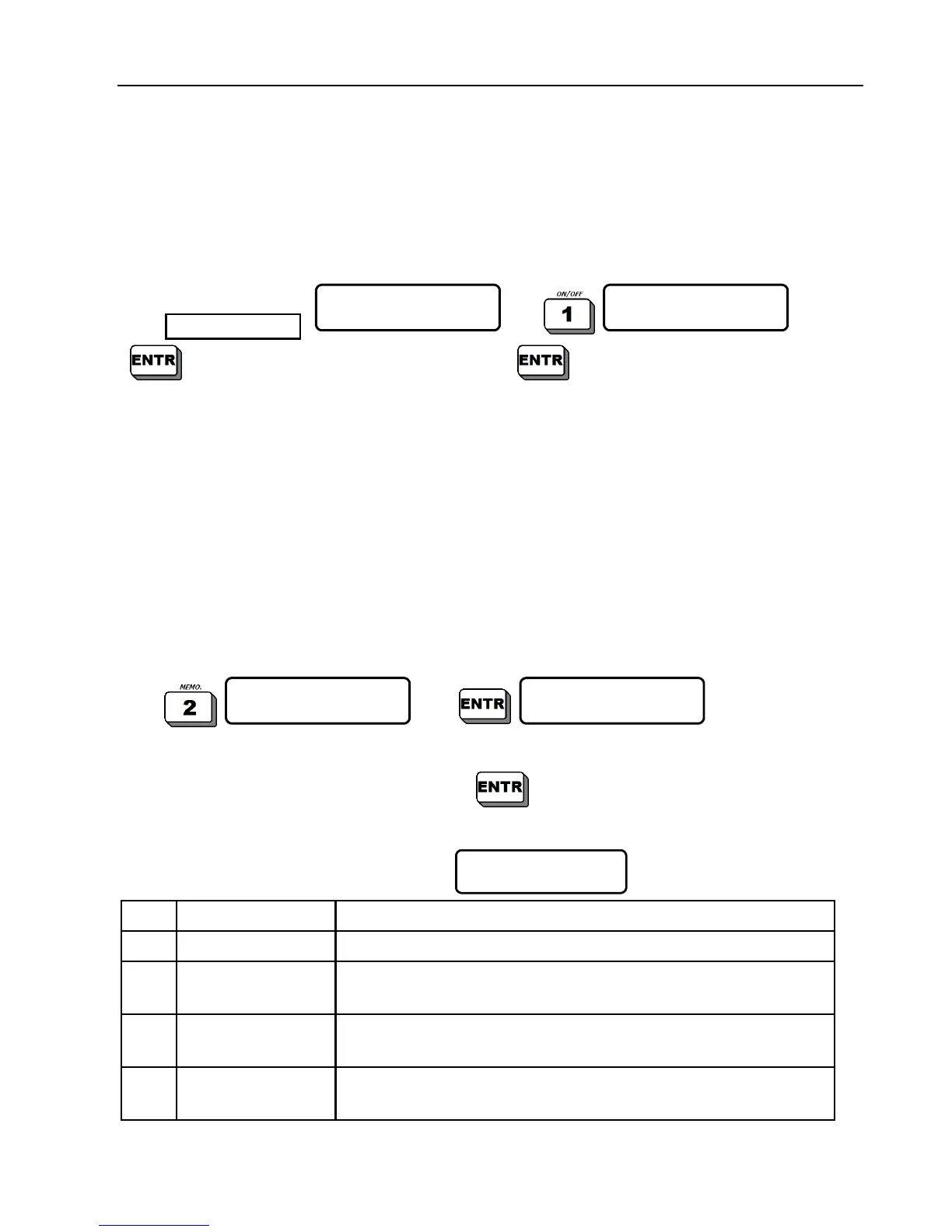

Captain-i Installation Guide 21
Chap 5. Programming
To enter technician menu, the technician code (default: 1234) must be entered. In all
the next sections, though not shown, this code is entered at the beginning of every
step. Also demonstrated in the first section is the ‘Select’ menu.
5.1.1 Zone sensitivity
[ Technician code
Select:
CPTN XX en 6.0
[
Sens. <X 50 mS>
ENTR/NEXT/END
[
. Enter the desired zone sensitivity. [
With the CAPTAIN-i, you may set the sensitivity level of each zone separately.
Zone sensitivity: The length of opening time of the magnet/detector after which the
zone causes an alarm. For a period less than this length of time, the opening is ignored
by the system. The minimum length of time that can be set is 0.05 sec. (50
milliseconds) and the maximum length of time is 12.75 seconds. The zone sensitivity is
set in increments of 0.05 sec. (50 milliseconds).
For example, if you wish Zone 1 to respond to any opening longer than 200
milliseconds (=50 milliseconds x 4) and Zone 2 to respond to any opening longer than
400 milliseconds (=50 milliseconds x 8), you program Zone 1 for sensitivity 4, and
Zone 2 for sensitivity 8
5.1.2 Zone characteristics
[
Zone character.:
ENTR/NEXT/END
. [
BOFHIDE Bypass
---++-- Zn.Char1
.
This is zone #1 screen. You can enter any zone number and program its characteristics.
(See how in section 4.4). To confirm,
[
The characteristics can be programmed for each zone independently. The following is a
description of the zone characteristics:
BOFHIDE Bypass
---++-- Zn.Char1
Par. Full name Description
B Bypass The system will ignore this zone
O N.O. Used for detectors that are normally open, i.e. the dry
contact is open when the detector is not activated
F 24 Hours Opening the zone will cause an alarm in any system state:
armed, home, or disarmed
H Active in
“Home” Mode
Zone allocated to the group of zones active in “Home”
