Captain-i, Installation Guide 18
Note: To connect TC-3 with an LCD keypad to the RXN-406 or to connect PRG-22 to
RXN-400/410, the keypad’s cover should be first removed as the RJ-11 connector is
internal.
4.3 LCL-11A: Adaptor for Local Programming
The LCL-11A unit is used for programming CAPTAIN-i using PC and COMAX
Upload/Download software. The unit provides the technician with an easy-to-use tool
for quick programming..
Note: The LCL-11A can be connected only to an LCD keypad (RXN-400/410 with TC-3
Technician Cable). If the customer has a LED keypad, connect it to the technician’s
LCD keypad, which you connect to the PC.

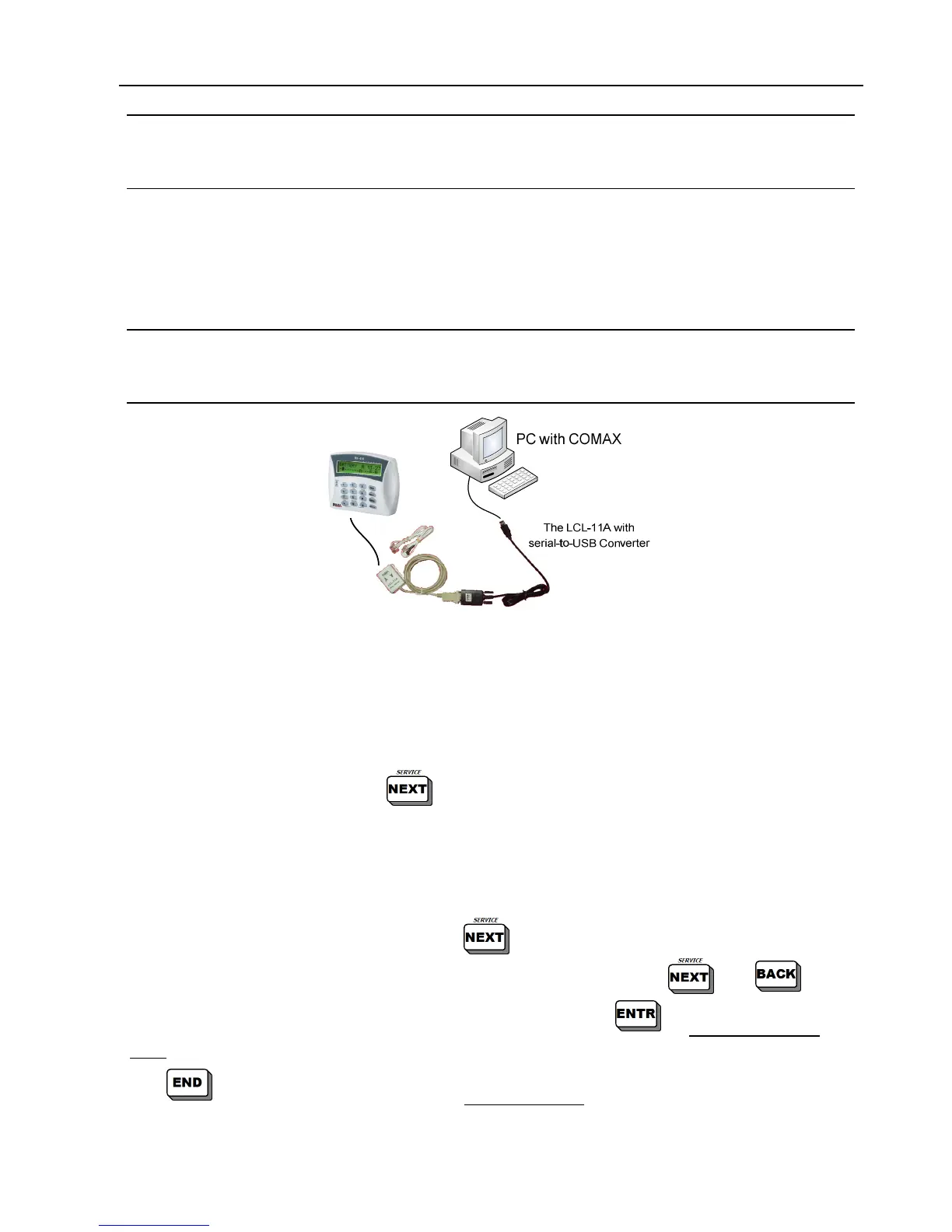

Connecting COMAX using LCL-11A with Serial-to-USB converter
4.4 Programming with an LCD Keypad
The CAPTAIN-i is operated and programmed by means of two menus: A User menu
and a Technician menu. To access the User menu enter the Primary Code. The
Technician menu can be accessed in two ways:
Enter Primary Code, press
and then enter Technician Code
OR
Access directly by entering the Technician Code (CAPTAIN-i Ver 5 and up only).
At the Technician Menu, various options can be selected by pressing the number keys.
Each key leads directly to a required menu.
In certain cases, it is necessary to press
afterwards. If you do not remember the
key for the required operation, simply press one of the keys, use
and until
you reach the display for the required menu. Always press
to confirm entered
data.
The
is used to exit from any state without saving the entered data.
To Next Page
