Pinnacle Systems, Inc. TARGA 3000 Hardware & Software Installation

1-5
Pinnacle Systems TARGA 3000
card lengthwise until the card is firmly seated. The board may need to be “seated”
twice. When pushed into the slot, the board will catch as if it were in place – gently
continue to exert pressure until the board “seats” again or until you see that the board
is completely installed.
Important: Don’t force the card. If there is resistance, remove the card and try
again.
8. If you are not going to use the 4-pin hole 1394 connector (refer to Figure 1-1),
put the cover back on the computer .
If necessary, check the owner’s manual for instructions on how to place the cover
back onto the computer.
9. Optional: If using the card's VIP connector and/or 4-pin hole 1394 connector,
attach the appropriate peripheral(s) at this time.
10. Connect Pro Analog or Pro Digital Breakout Box to the TARGA 3000 card.
Connect the cable from the back of the Pro Analog or Pro Digital Breakout Box to
the output connector on the bracket of the TARGA 3000 card. Refer to Figure 1-3.
Important: We recommend that you do not disconnect or reconnect the Breakout Box
cable from or to the TARGA 3000 card while the computer is powered up.

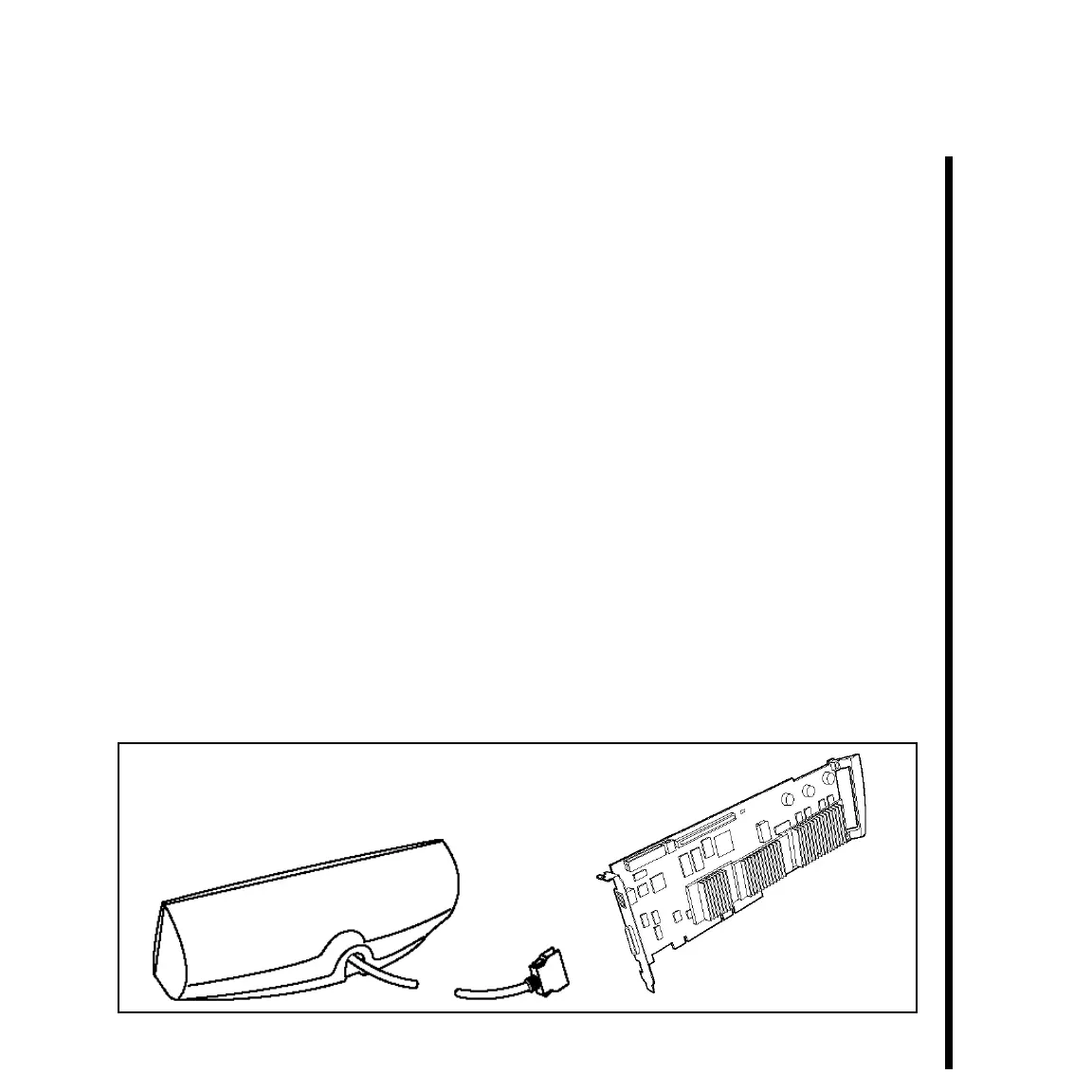

Figure 1-3 Pro Analog Breakout Box Cable To TARGA
6-Ft. Cord
