Chapter 1: Card Installation & Hardware Setup
About The TARGA 3000 Pro Analog Breakout Box
The TARGA 3000 Pro Analog Breakout Box supports XLR balanced audio, RCA
unbalanced audio, S-Video (YC), Component Video (Y, B-Y, R-Y), Composite Video
(CV/CS), Reference (synchronized or genlocked), and a key out (COMP-B). Refer to
Figure 1-4.
Rack Mounting The TARGA 3000 Pro Analog Breakout Box
An optional rack mounting kit for the TARGA 3000 Pro Analog Breakout Box can be
acquired from where the TARGA 3000 was purchased. Rack Mounting instructions for
the TARGA 3000 Pro Analog Breakout Box can be found in Appendix B.
Pro Analog Breakout Box Input And Output Connections
The input and output connections for the TARGA 3000 Pro Analog Breakout Box are
defined as follows:
XLR Audio: The dual-channel XLR connectors are for balanced analog input and output
audio. Use the XLR connector labeled “L” for Left and “R” for right.

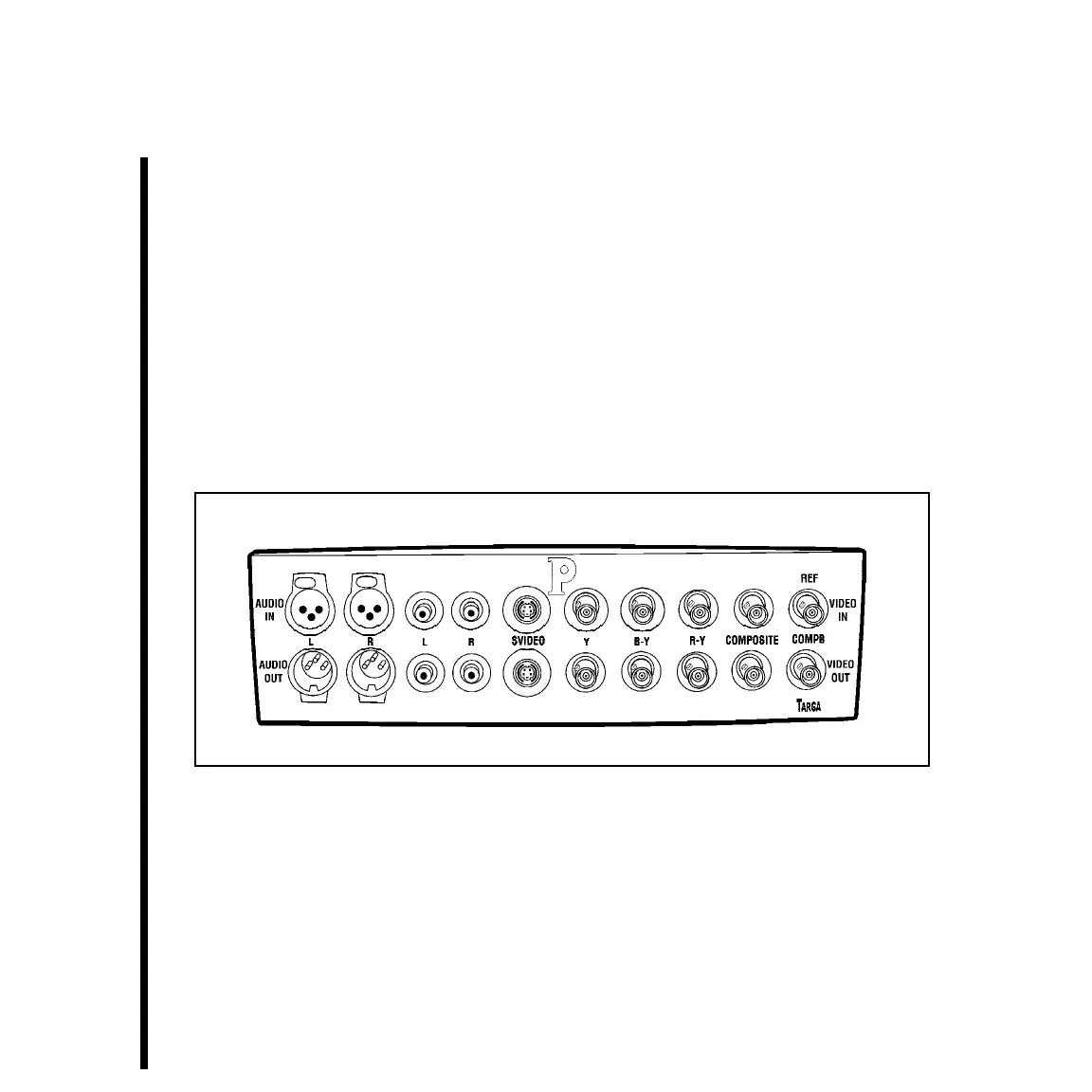

Figure 1-4 TARGA 3000 Pro Analog Breakout Box Input and Output Connections
