Appendix B: TARGA 3000 Rack Mount Assembly

9. Attach the rack mount bracket assembly with the screws included with the

rack-mount kit onto the rack (Figure 9).

This completes the rack installation.

Note: A rear-facing installation is also possible. The Pro Analog Breakout Box may be mounted to a

rack’s rear rails. The rear-facing installation is advantageous for direct connection of VTRs to the Pro

Analog Breakout Box.

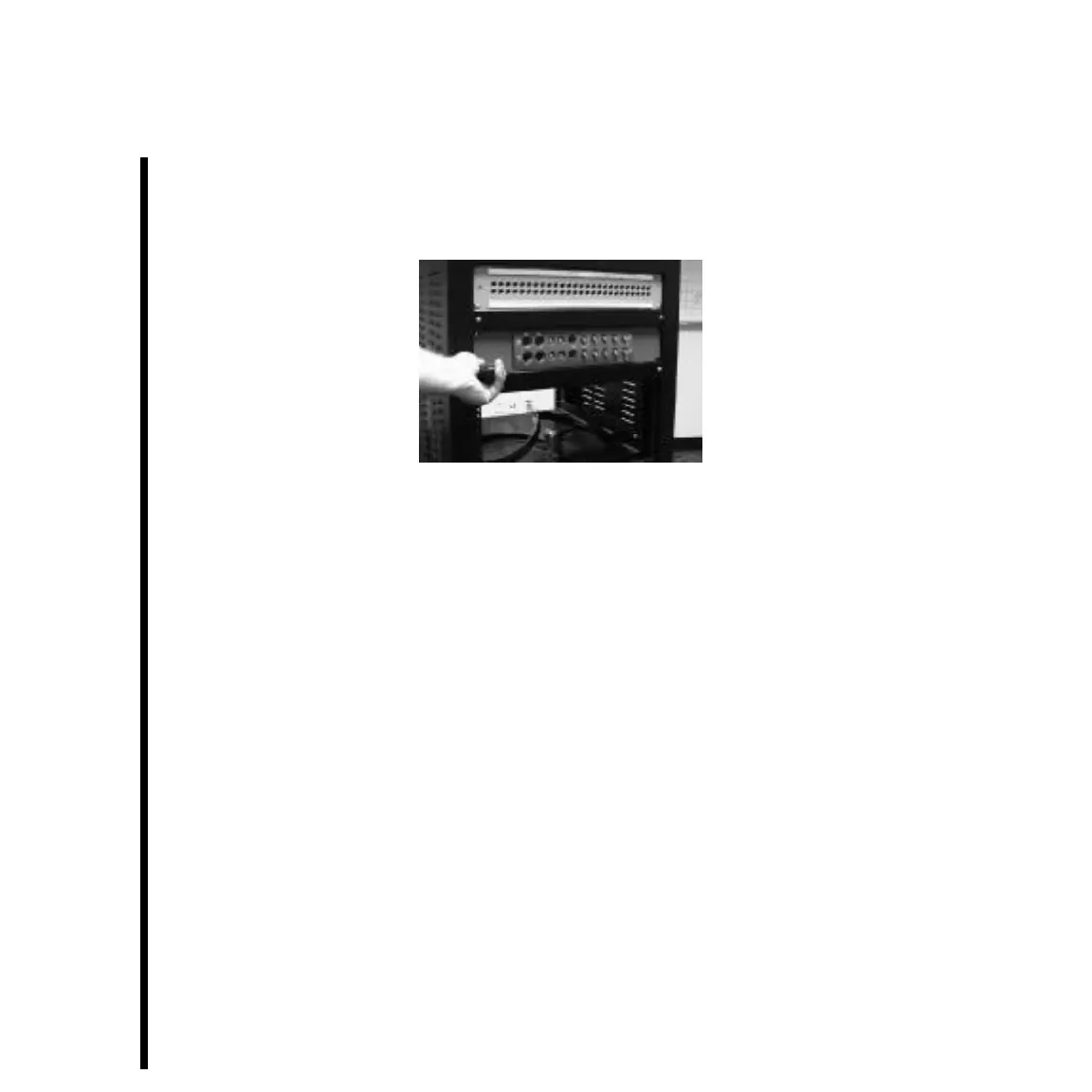

Figure 9
