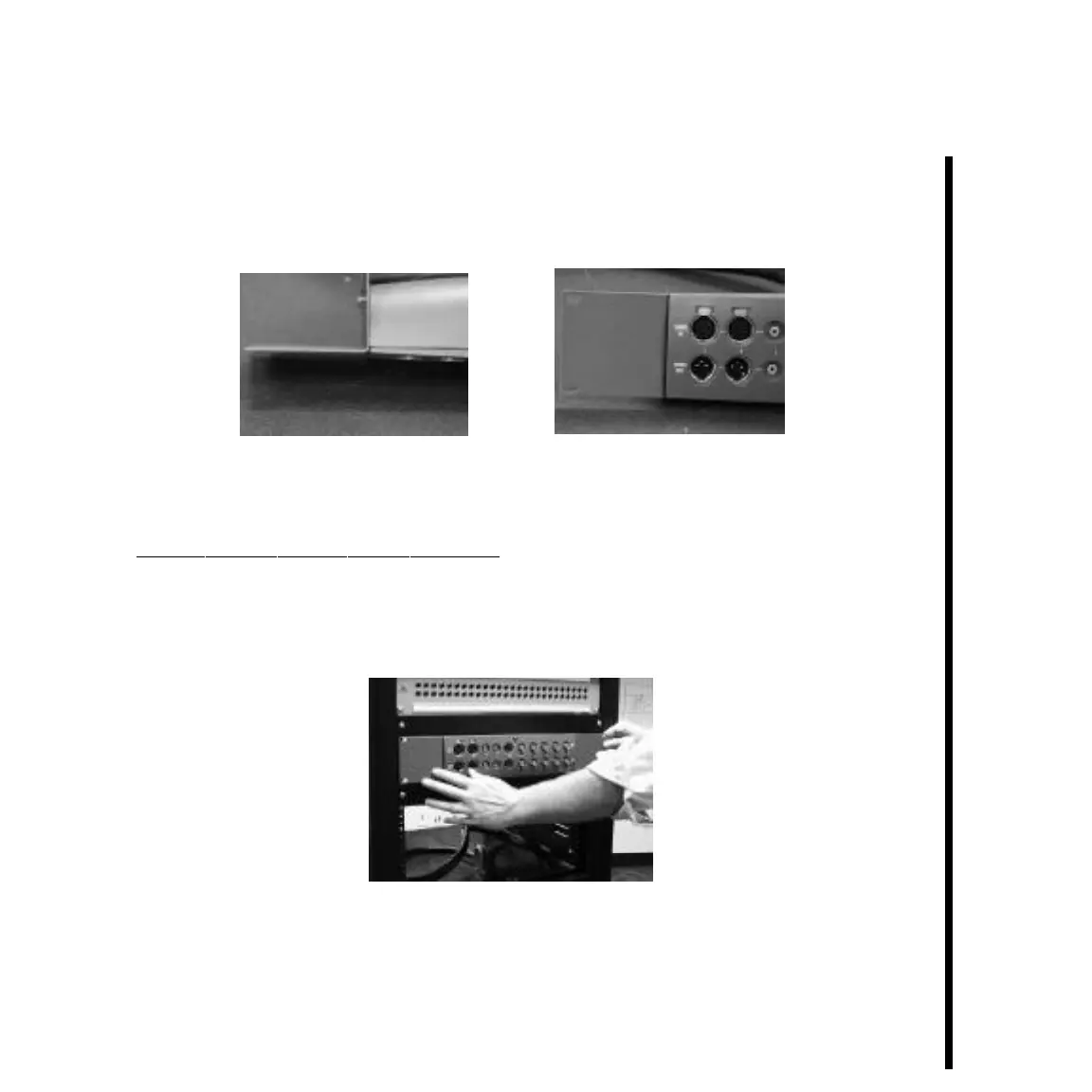

6. Center the Pro Analog Breakout Box in the rack mount bracket as shown in
Figure 6 and Figure 7.
Note that if your position is different from these, you may have difficulty sliding the
entire assembly into the rack.
7. Now tighten the four screws inserted in Step 5.
Be careful not to overtighten the screws.
8. Place the Pro Analog Breakout Box and rack mount bracket assembly into the
rack as shown in Figure 8.
Figure 8
Figure 7
Figure 6
