Pioneer PDP-42MXE10 User Manual

163
Integrator Mode
INTEGRATOR INPUT1
ENTER
SCREEN SETUP OPTION
PROGRAM T I MER
SCREEN MASK
S I DE MASK
V I DEO WALL
BAUD RATE
I D NO. SET
:
:
:
SET EXITMENU
GREEN
01H
38400BPS

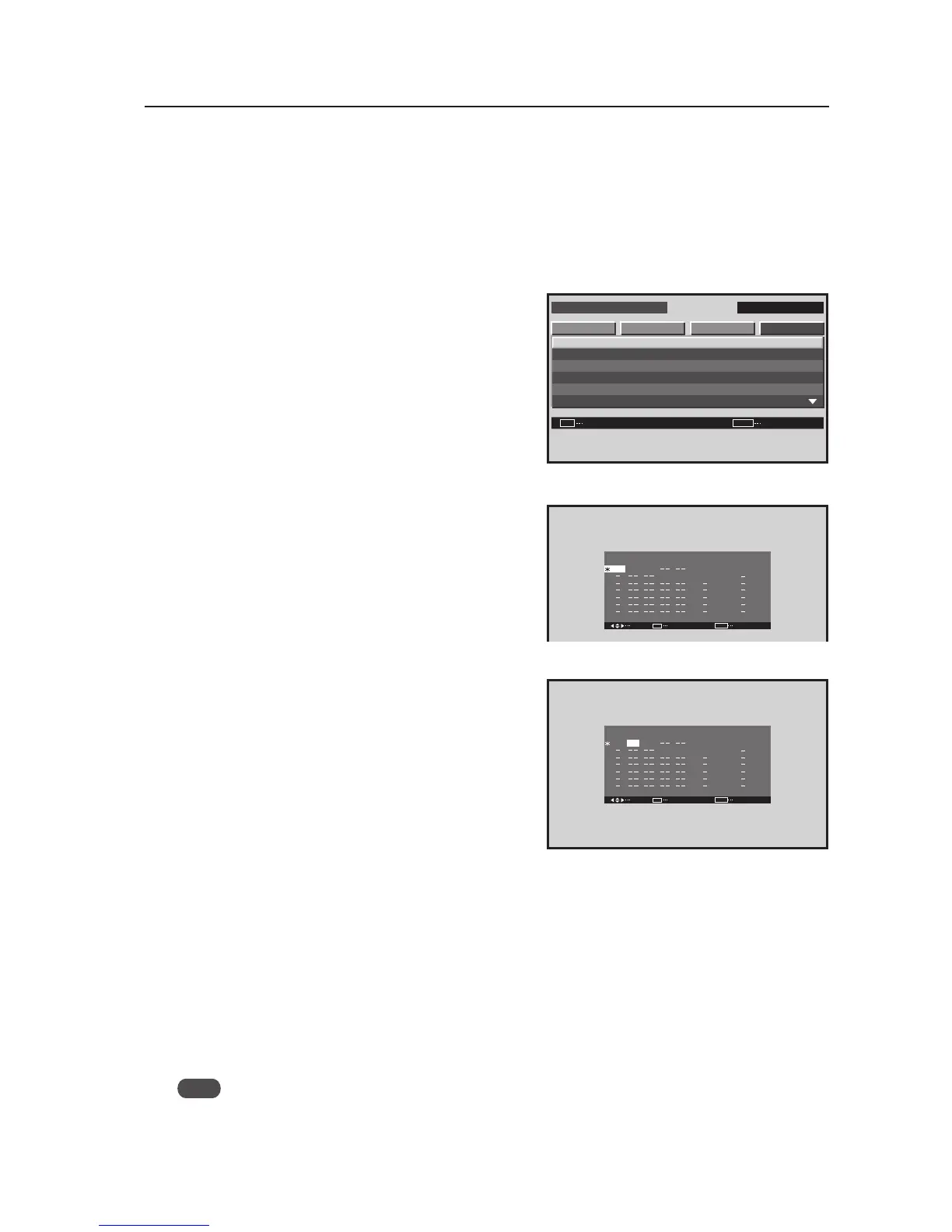

8) Program Timer Setting
This option can set the day of the week, time, input, and function desired when the power is turned ON/OFF.
1 Enter the integrator mode.
(Refer to section 5.4.1, “About the Integrator Mode” (pg. 154).)
2 Select ‘OPTION’.
3 Place the cursor on ‘PROGRAM TIMER’ then press the
[SET] button.
4 Select the item to be set with the [5/∞/2/3] buttons
then press the [SET] button.
5 Change the setting with the [5/∞/2/3] buttons then press
the SET button.
7 Program timer settings
DATE ........... Sets the day of the week the program timer
will be executed. It can be set as “every
day” or as “every Friday”
ON ............... Sets the power ON time
OFF ............. Sets the power OFF time
INPUT .......... Sets the input when the power is turned on.
FUNCTION .. Sets the function that will be executed when
the power is turned ON
7 To reset the program;
Press the CLEAR button with the cursor on DATE. This resets the program.
7 To clear the set contents;
Press the CLEAR button with the cursor on ON, OFF, INPUT, FUNCTION. This clears the item’s contents.
7 Viewing the program timer screen
• “∗” in the DATE column
This indicates “every”. When there is only “∗” in the DATE column, it means “every day”, while “*FRI” means
“every Friday”.
• ON, OFF column “–“
The hour and minute must be set for this option to function.
• INPUT, FUNCTION column “–“
It displays the “last” (state when the power is off) setting.
Note
The set time may slow by approximately 1 minute per month.
The ‘PROGRAM TIMER’ setting is common for all inputs.
When the program timer power has been turned ON, “POWER ON MODE“ is unavailable.
Screen 3
SEL. ADJ
PROGRAM T I MER
DATE
RETURN
FRI
EXIT
MENU
ON
:
:
:
:
:
:
:
OFF INPUT
INPUT4
INPUT1
FUNCT I ON
INVERSE
0000
23
:
00
:
SET
Screen 4
Screen 5
SEL. ADJ
PROGRAM T I MER
DATE
RETURN
FRI
EXIT
MENU
ON
:
:
:
:
:
:
:
OFF INPUT
INPUT4
INPUT1
FUNCT I ON
INVERSE
00
23
:
00
:
:
:
:
:
:
SET
00
