4.3 Installation of the Attachment Stand
Be sure to fix the supplied stands to the installation surface.
Use commercially available M8 bolts that are 25 mm
longer than the thickness of the installation surface.
Installation of the Attachment Stand

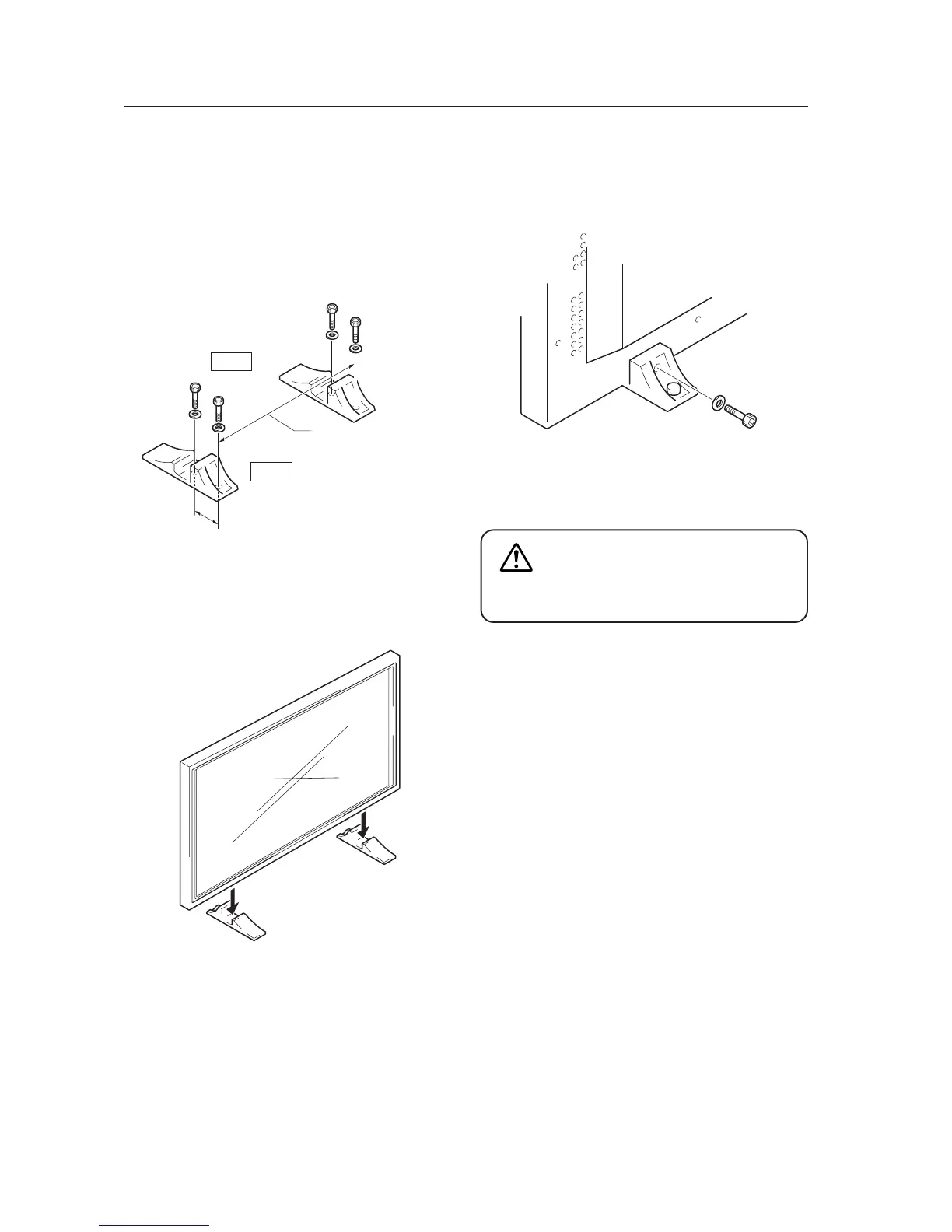

1.
Fix the supplied stands to the installation surface at
each of the 4 prepared holes using commercially
available M8 bolts.
2.
Insert the unit into the stand.
3.
Tighten the bolt against the washer so as to secure
the unit.
The unit weights 30 kg. or more.
Its thinness makes it unstable. Therefore,
it should be unpacked, carried, and
installed by two or more people.
CAUTION
Front
Rear
110 mm
Use a 6 mm hexagonal
wrench to tighten the bolt.
Always install the supplied display stands
according to the dimensions shown in
the accompanying illustration.
517 mm
(Bolt hole thread pitch)
