Integrator Mode
0 Press the [2/3] buttons to change the settings.
- Press the [SET] button.

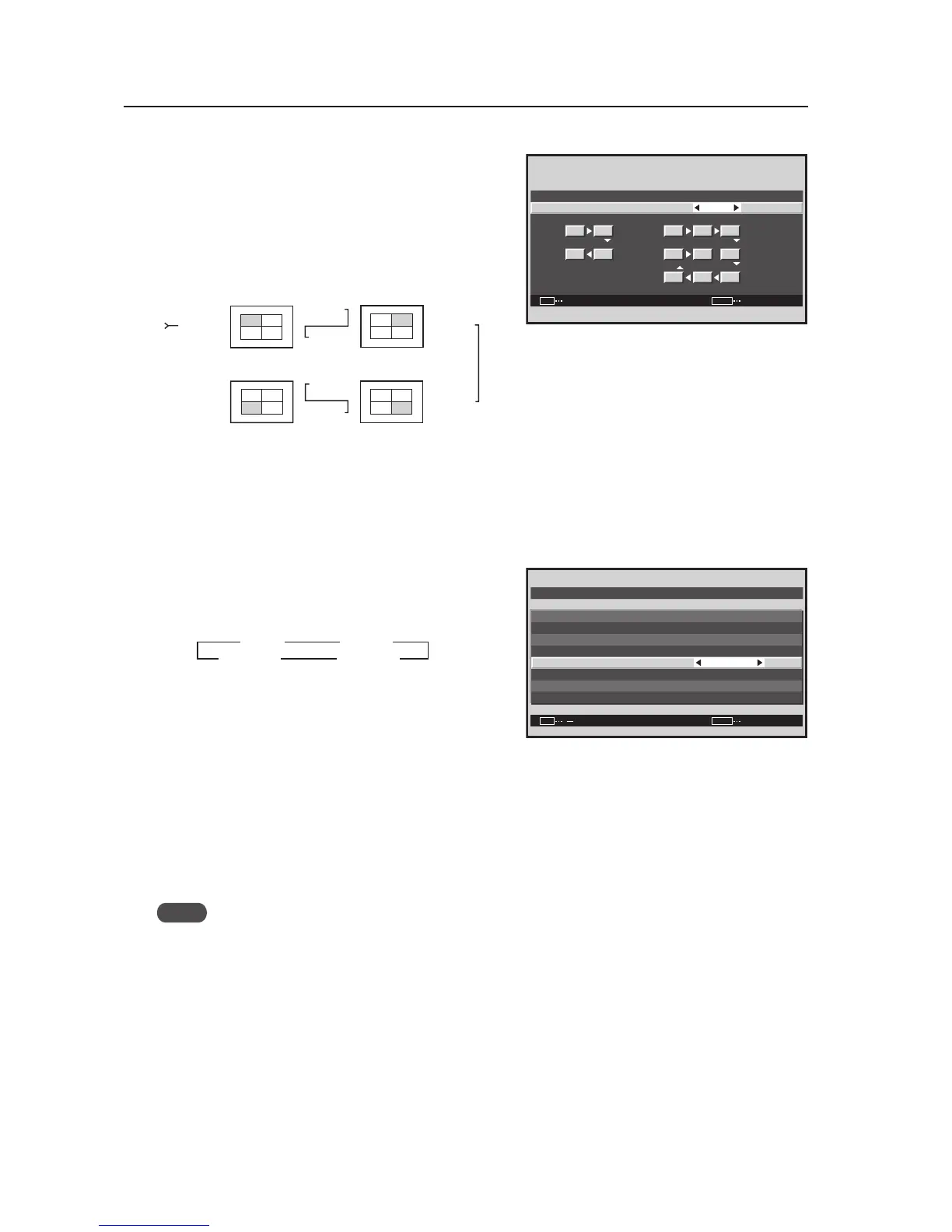

[Setting the AUTO ID]
ON ....... The AUTO ID function operates
In the case of the 4-screen configuration, shown below,
Display1 = ID1 and Display 4 = ID4.
Auto ID is only available for 4-screen/9-screen Video Walls.
OFF ..... The AUTO ID function does not operate.
7 Setting the POWER ON DELAY
This option sets the power ON timing for the panels that
make up a video wall to avoid a power surge.
= Place the cursor on ‘P.ON DELAY’ and press the [2/3]
buttons to change the settings.
Each time a [2/3] button is pressed, the setting changes
as shown below.
[Setting the POWER ON DELAY]
(When 1, 4, and 9 screen Video Walls)
ON ........... When the power is turned on, the power of
each is turned on at slightly different times.
OFF ......... When the power is turned on, the power of all
the displays turns on at the same time.
(When 16 and 25 screen Video Walls)
MODE1 ... When the power is turned on, after a delay, each panel turns on.
MODE2 ... When the power is turned on, after a longer delay, each panel turns on.
Notes
• This function is effective when the AUTO ID setting is ‘ON’ with 4 or 9 screens. Set the AUTO ID in advance.
• After setting this function, turning on the power to the first display causes the other units to turn on in succession.
• From the second display, it is not possible to turn on the power using the remote control or control panel. To
forcibly turn a panel on, press and hold the remote control’s STANDBY/ON button for three or more seconds.
Screen 0, -
Display 1
Display 2
Display 3
Display 4
No.1
No.2
No.3No.4
No.1
No.2
No.3No.4
No.1
No.2
No.3No.4
No.1
No.2
No.3No.4
COMBINATION
IN
COMBINATION
OUT
COMBINATION
OUT
COMBINATION
IN
COMBINATION
IN
COMBINATION
OUT
COMBINATION
OUT
COMBINATION
IN
ON
:
SET
EXITSET
MENU
AUTO I D
1123
894
765
2
34
AUTO I D
Screen =
VIDEO WALL
NORMAL
OFF
OFF
:
:
:
OFF
:
SET EXIT MENU
DIVIDER
T YPE
AUTO I D
P. ON DELAY
ABL L I NK
REPEAT TIMER
RETURN
POS I T I ON
3 ON 3 OFF
MODE1
2
MODE2 2
33
22
