Pioneer PDP-42MXE10 User Manual

75
Wall Mount Unit: PDK-WM01

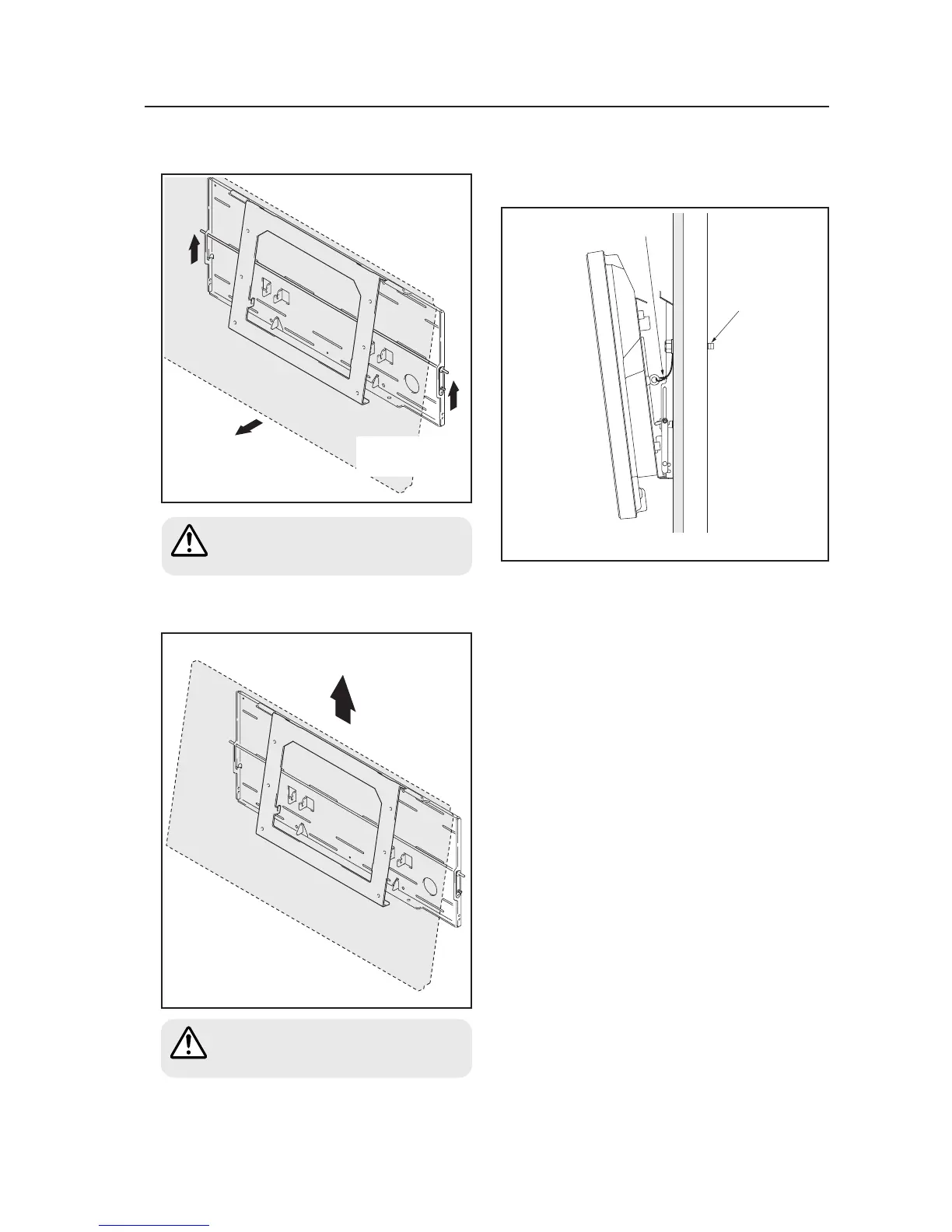

4 Raise the lock bar then pull the bottom of the Plasma
Display forward.
Pull out the bottom of
the Plasma Display.
5 Raise to remove the Plasma Display.
Raise and remove the Plasma Display.
Pull out the bottom of the Plasma Display
very carefully so that the hook on the PDP
side metal fitting is not displaced.
Always have at least 2 people manage this
task.
Raise the lock bar
(either the left or the
right side).
Caution
Caution
(Precautions when installing the hardware)
Firmly attach the safety wire to the attachment hole on
the Plasma Display. Anchor it firmly to the wall with a
bolt that extends through the structural wall.
Safety wire
Bolt
Decorative panel/structural wall
