Pioneer PDP-435HDG

05 Part Names
14
En

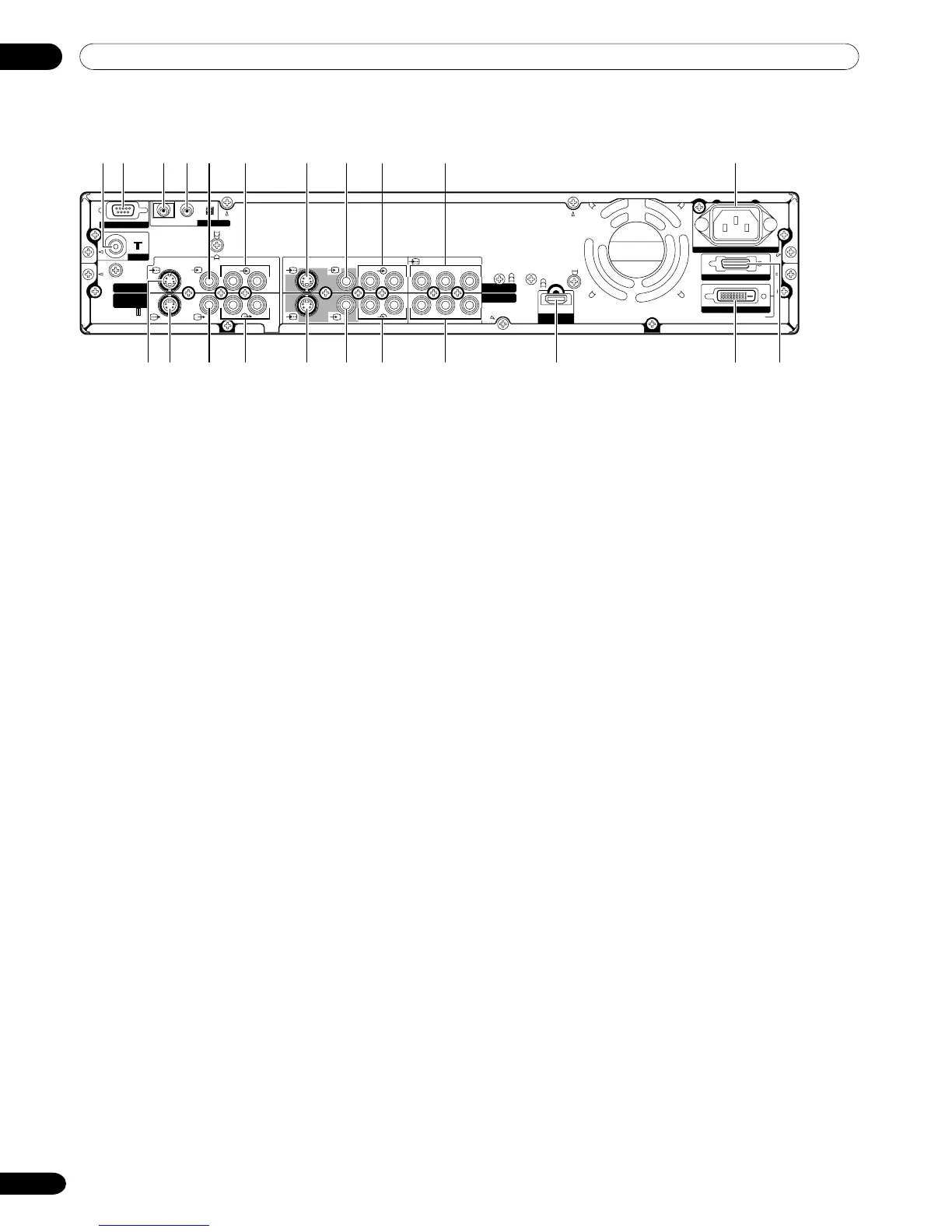

Rear view
SERVICE ONLY
ANT
INPUT 1
INPUT 3
INPUT 3
HDMI
INPUT 2
MONITOR
OUTPUT
CONTROL
IN OUT
AC INLET
BLACK
WHITE
SYSTEM CABLE
Y
Y
P B
P B
P R
P R
S-VIDEO
VIDEO
R-AUDIO-L
S-VIDEO
VIDEO
R-AUDIO-L
COMPONENT VIDEO
^*(=~ ! @ # $ %
67890 -23145
&
1 Antenna input terminal
2 RS-232C terminal (used for factory setup)
3 Control input terminal
4 Control output terminal
5 INPUT 2 terminal (VIDEO)
6 INPUT 2 terminals (AUDIO)
7 INPUT 1 terminal (S-VIDEO)
8 INPUT 1 terminal (VIDEO)
9 INPUT 1 terminals (AUDIO)
0 INPUT 1 COMPONENT VIDEO terminals
(Y, PB, PR)
- AC INLET terminal
= INPUT 2 terminal (S-VIDEO)
~ MONITOR OUTPUT terminal (S-VIDEO)
! MONITOR OUTPUT terminal (VIDEO)
@ MONITOR OUTPUT terminals (AUDIO)
# INPUT 3 terminal (S-VIDEO)
$ INPUT 3 terminal (VIDEO)
% INPUT 3 terminals (AUDIO)
^ INPUT 3 COMPONENT VIDEO terminals
(Y, PB, PR)
& INPUT 3 terminal (HDMI)
* SYSTEM CABLE terminal (WHITE)
( SYSTEM CABLE terminal (BLACK)
