Pioneer PDP-435HDG User Manual

10Enjoying through External Equipment
English
53
En

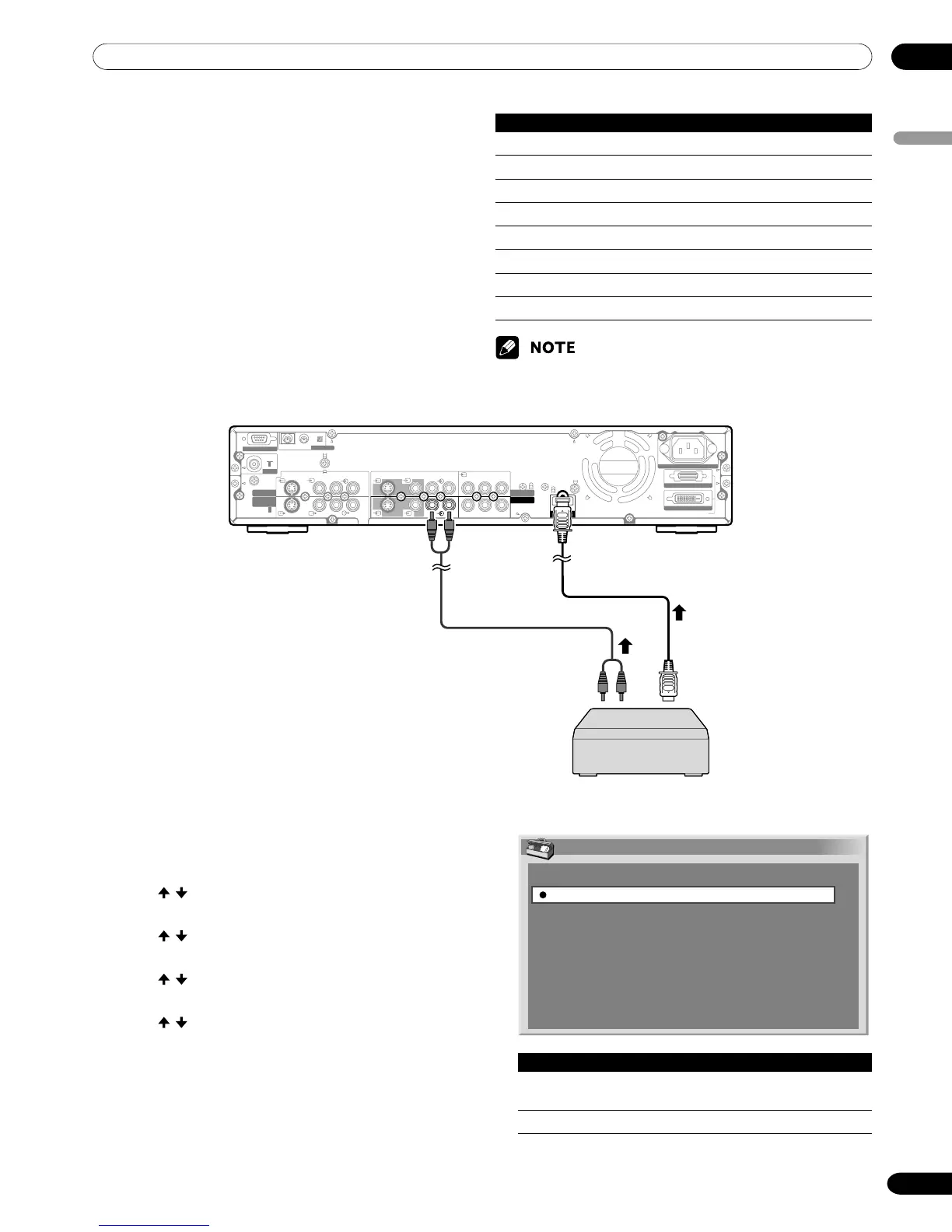

Using HDMI Input
The INPUT 3 terminals include HDMI terminals to
which digital video and audio signals can be input. To
use the HDMI terminal, activate the terminal and
specify the types of video and audio signals to be
received from the connected equipment. For the types
of these signals, see the operation manual that came
with the connected equipment.
To activate the HDMI terminal:
1
Press HOME MENU.
2
Press / to select “Option”, and then press
ENTER.
3
Press / to select “HDMI Input”, and then press
ENTER.
4
Press / to select “Setting”, and then press
ENTER.
5
Press / to select “Enable”, and then press
ENTER.
Setting
Disable
Enable
Item Description
Disable Deactivates the HDMI terminal.
(factory default)
Enable Activates the HDMI terminal.
6
Press HOME MENU to exit the menu.
SERVICE ONLY
ANT
INPUT 1INPUT 2
MONITOR
OUTPUT
CONTROL
IN OUT
AC INLET
BLACK
WHITE
SYSTEM CABLE
Y
Y
P B
P B
P R
P R
S-VIDEO
VIDEO
R-AUDIO-L
S-VIDEO
VIDEO
R-AUDIO-L
COMPONENT VIDEO
INPUT 3
INPUT 3
HDMI
Media Receiver (rear view)
HDMI cable
(commercially available)
HDMI equipment
Connecting HDMI equipment
Input signal correlation table
19 2 0
∗
1080i@50Hz
720
∗
576p@50Hz
128 0
∗
720p@50Hz
720(1440)
∗
576i@50Hz
19 2 0
∗
1080i@59.94/60Hz
720
∗
480p@59.94/60Hz
128 0
∗
720p@59.94/60Hz
720(1440)
∗
480i@59.94/60Hz
• PC signals are out of correspondence.
Audio cable (commercially available)
Make this connection when inputting
analog audio signals.
