Media Receiver (rear view)
Watching broadcasts via a digital tuner

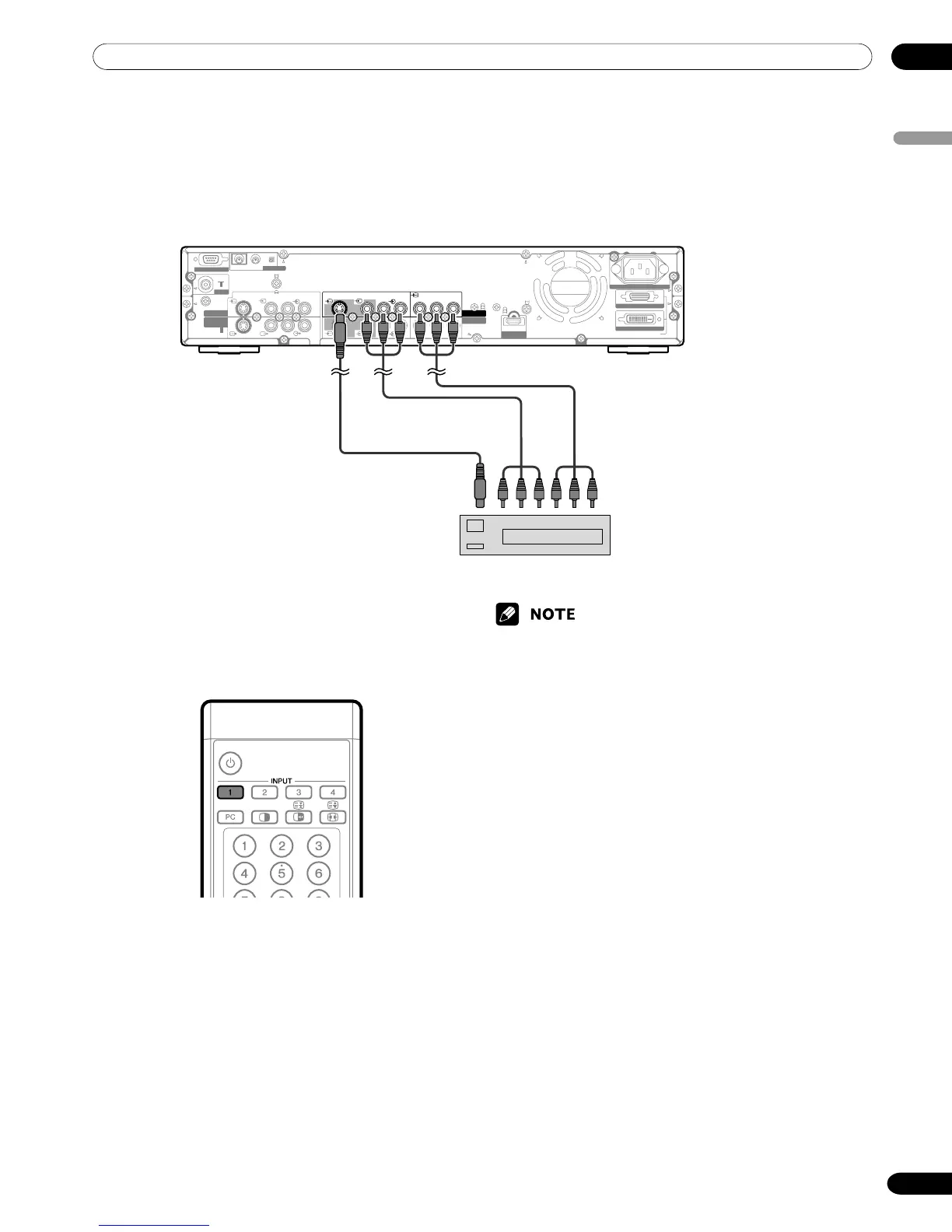

Connecting a digital tuner
You can use the INPUT 1 terminal when connecting a
digital tuner and other audiovisual equipment.
Digital tuner
Component video cable
(commercially available)
AV cable
(commercially available)
S-video cable
(commercially available)
Displaying broadcasts via a digital tuner
To watch a digital tuner image, press INPUT 1 on the
remote control unit or press INPUT on the Plasma
Display to select INPUT1.
•Refer to your digital tuner operation manual for the
signal type.
• The INPUT 1 terminal is checked for cable
connections in the order where; 1) Component video,
2) S-Video, 3) Video.
• Connect the external equipment to only terminals
that are to actually used.
