Pioneer PDP-435HDG User Manual

06 Preparation
22
En
Antenna cable-commercially available
If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325
plug (IEC169-2), plug it into the antenna terminal at the rear of the Media Receiver.

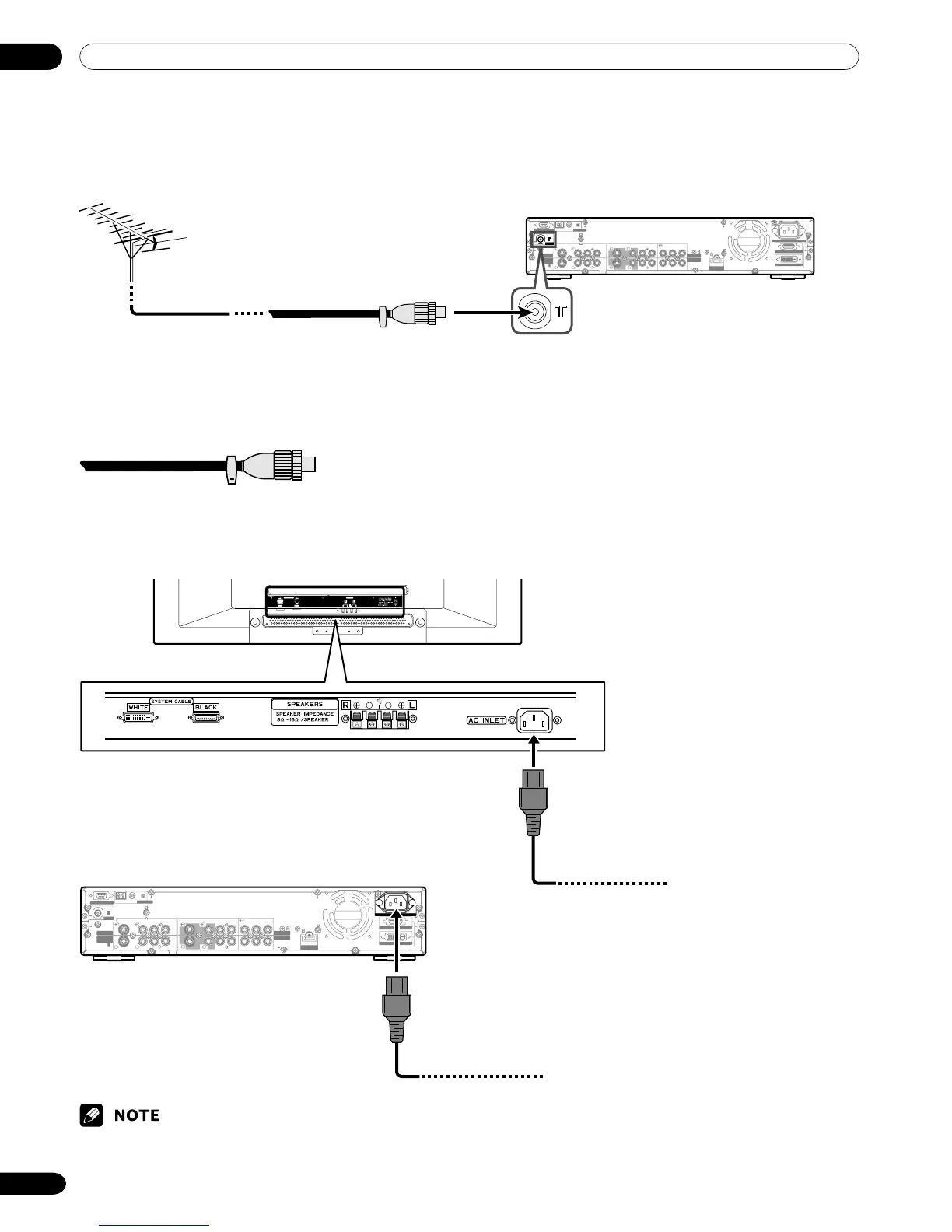

Basic connections
Connecting to an antenna
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections
that are used for a coaxial cable.
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)
(commercially available)
To a wall outlet
SERVICE ONLY
INPUT 1
INPUT 3
INPUT 3
HDMI
INPUT 2
MONITOR
OUTPUT
CONTROL
OUTIN
AC INLET
BLACK
WHITE
SYSTEM CABLE
Y
Y
P B
P B
P R
P R
S-VIDEO
VIDEO
R-AUDIO-L
S-VIDEO
VIDEO
R-AUDIO-L
COMPONENT VIDEO
ANT
SERVICE ONLY
INPUT 1
INPUT 3
INPUT 3
HDMI
INPUT 2
MONITOR
OUTPUT
CONTROL
OUTIN
BLACK
WHITE
SYSTEM CABLE
Y
Y
P B
P B
P R
P R
S-VIDEO
VIDEO
R-AUDIO-L
S-VIDEO
VIDEO
R-AUDIO-L
COMPONENT VIDEO
ANT
AC INLET
Connecting the power cord
Plasma Display (bottom view)
• Always turn off the main power of the Plasma Display and Media Receiver when connecting the power cords.
• Disconnect the power cord from the power outlet, Plasma Display and Media Receiver when the system is not
going to be used for a long period of time.
Media Receiver (rear view)
To a wall outlet
