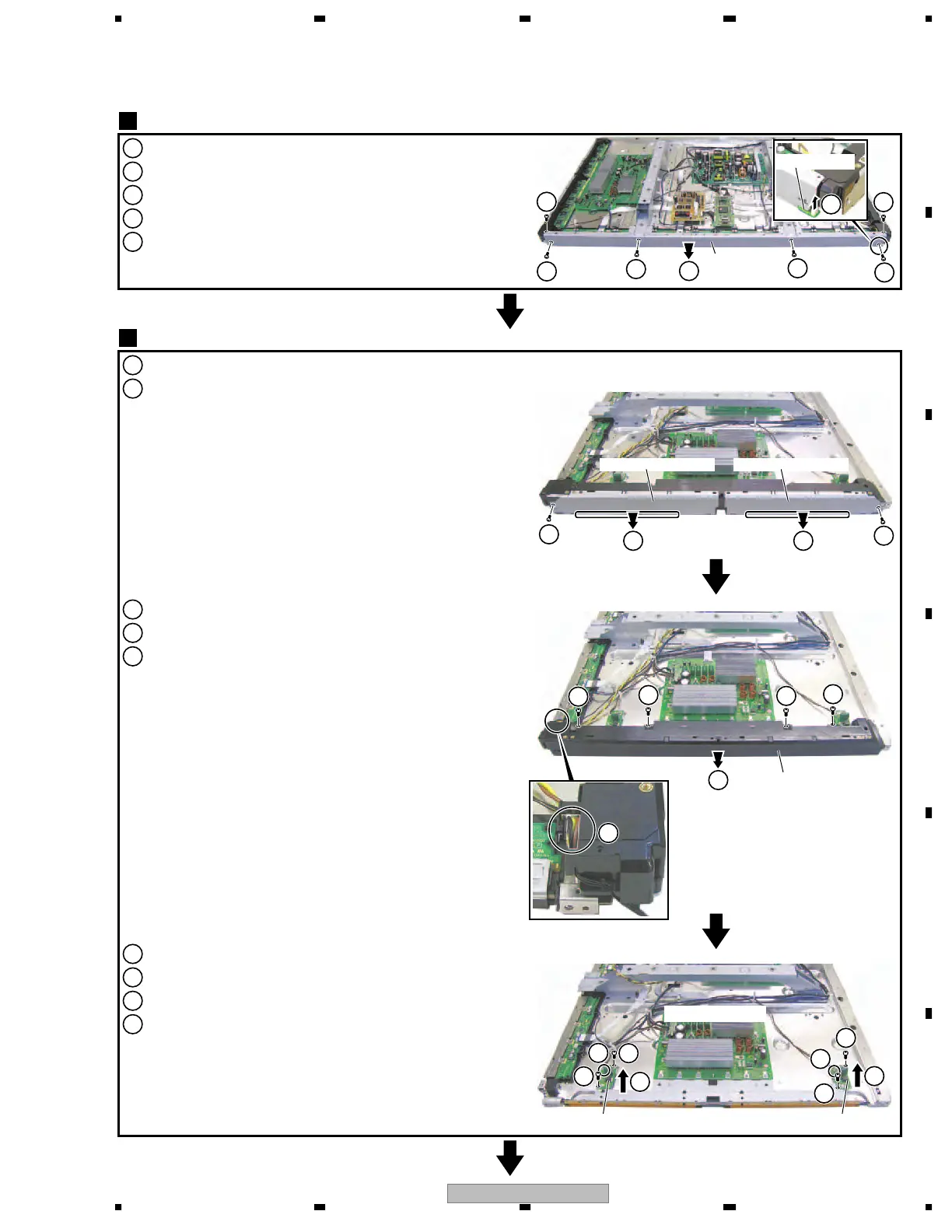

Pioneer PDP-506PG - 4 Front Chassis Η Assy (50); 5 SUS CLAMP 1 and 2 Assys

PDP-506PE
83
5678
56
7
8
C
D
F
A
B
E
1
Remove the two screws.
2
Remove the two screws.
3
Remove the two screws.
4
Disconnect the connector.
5
Remove the front chassis H Assy (50).
Front Chassis H Assy (50)
4
1
Remove the two screws.
2
Remove the panel holder V1 (50) and V2 (50)s.
(Unhook the six hooks.)
3
Release the housing wire.
4
Remove the four screws.
5
Remove the front chassis VR (50).
6
Remove the two screws.
7
Remove the two screws.
8
Unhook the two PCB spacers.
9
Remove the SUS CLAMP 1 and 2 Assys.
SUS CLAMP 1 and 2 Assys
5
3
2
1
5
2
5
3
6
9
9
8
8
6
7
7
2
3
2
1
1
1
Front chassis
H Assy (50)
Panel holder V1 (50)
Hook
×3
Front chassis VR (50)
Hook
×3
SUS CLAMP 2 Assy SUS CLAMP 1 Assy
Panel holder V2 (50)
4
4
4
4
50 X DRIVE Assy
4
HD LED Assy
