8.2 FACTORY MENU
8.2.1 INFORMATION
Operation items
1 VERSION(1) The Flash memory versions for each device are
displayed. (Common Part)
QS1
2 VERSION(2) QS6
3 VERSION(3)
The Flash memory versions for each device are
displayed. (Individual Part)
QS6
4MAIN NG The Shutdown Message ID/Event Times in Main
Microcomputer are displayed.
QNG
5 TEMPERATURE The Temperature/FAN rotating status are
displayed.
QMT
6 HOUR METER The HOUR METER/P-COUNT information are
displayed.
QIP
7HDMI SIGNAL INFO 1 -
8HDMI SIGNAL INFO 2
The Information of HDMI information files are
displayed.
-
9VDEC SIGNAL INFO Display the Signal Information on VDEC. -
10 DTV TUNING STATUS 1 -
11 DTV TUNING STATUS 2 -
12 DTV TUNING STATUS 3
Digital broadcast information and status is displayed
upon receiving digital broadcast signal.
-
13 DTV TV-GUIDE BER TV-Guide Bit Error Rate Information -
14 DEBUG INFO Debug Information. -

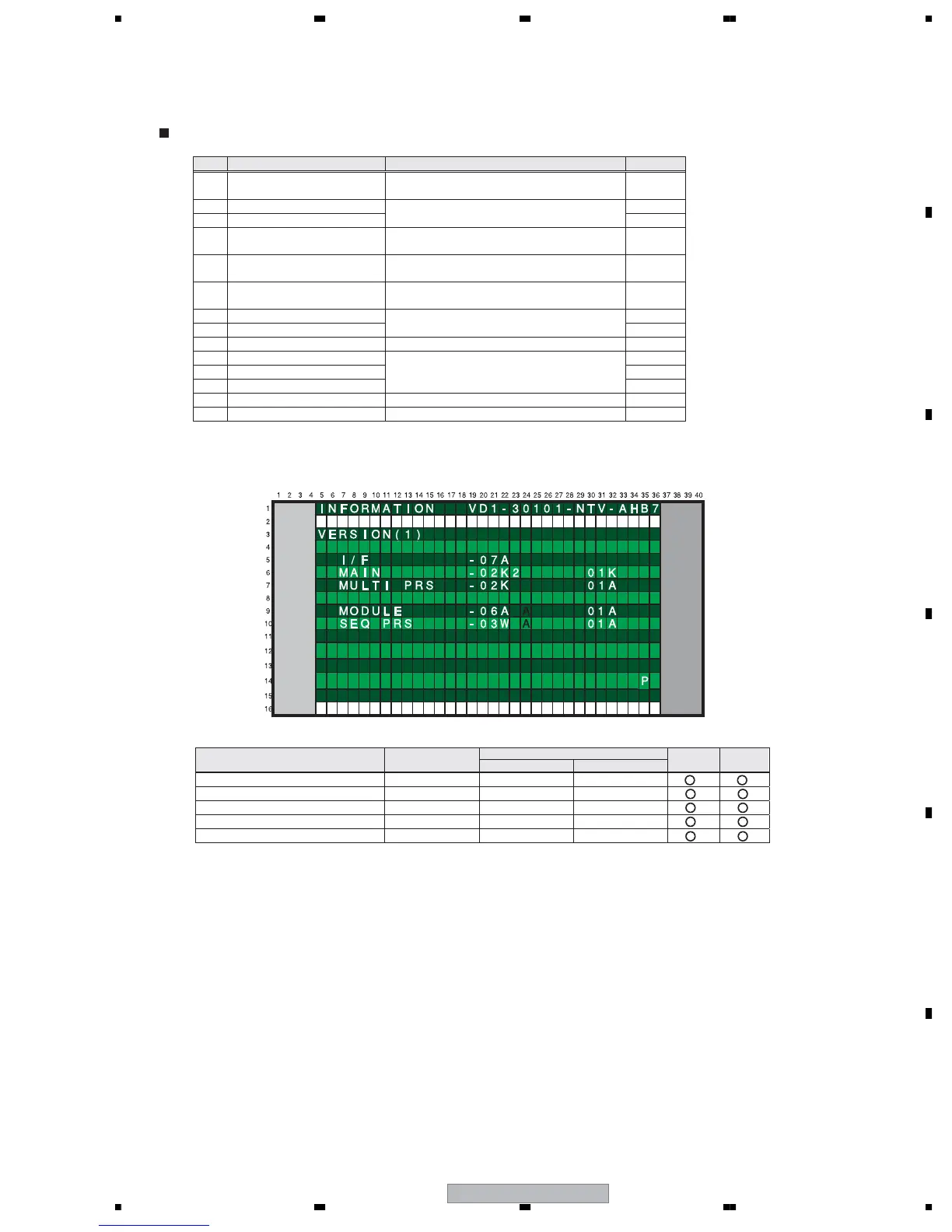

8.2.1.1 Version(1)
IF microcomputer I/F -07A
MAIN microcomputer MAIN -02K2
Multi processor MULTI PRS -02K2
MODULE microcomputer MODULE -06A_A
Sequence processor SEQ PRS -03W_A
–
01K
01A
01A
01A
In the 29-32 rows, ROM version information on each device is displayed.
In the 19-24 rows, Version information on a common treatment is displayed.
At the position "14x35", The Past/Highly effective panel distinction information is displayed.
" P " : The past panel, "F" : The highly effective panel
