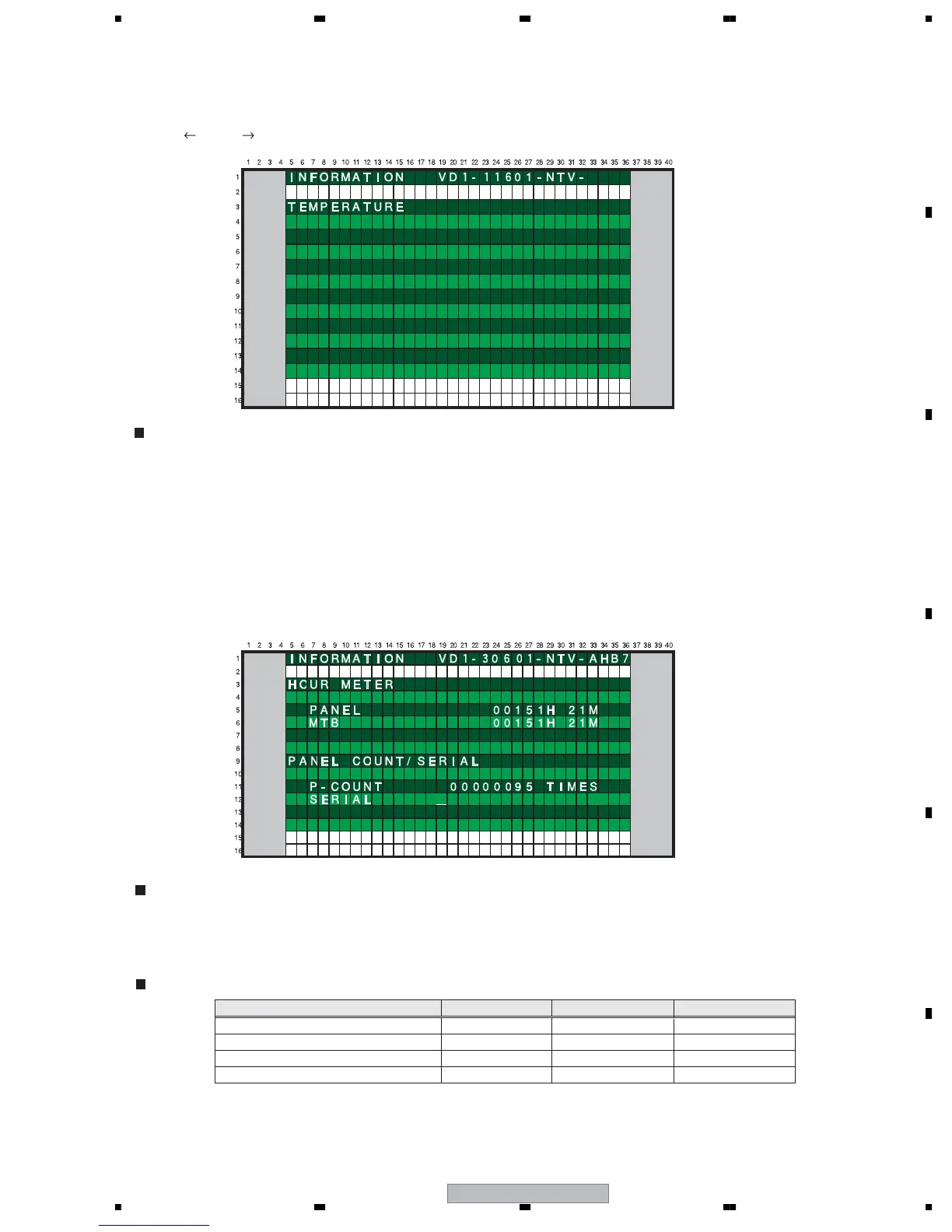

8.2.1.5 TEMPERATURE
A present temperature and the FAN rotation are displayed.
If either [ ] key or [ ] key is pressed, the display data is refreshed.
Display/Meaning
TEMP1 : The temperature of the sensor on the panel side is displayed by Fahrenheit (F).
TEMP2 : The temperature conversion display is done with 10bit the A/D input value of
Main uCON 76PIN(AN0). It is displayed by both Fahrenheit (F) and 8bit A/D value.
(Remark:When temperature (C) of the sensor becomes more than a specified
temperature, the shutdown start of processing.)
FAN : The value of the Fan rotating state is displayed.
STOP:stopped, LOW:slow speed, HIGH:high speed.
8.2.1.6 HOUR METER
Operation:
In HOUR METER screen on Factory Menu, press the [ENTER] key, and then it moves to
the screen to clear MTB HOUR METER.
Display/Meaning:
HOUR METER(PANEL) PANEL 00151H 21M QIP
–
QIP
QIP
HOUR METER(MTB) MTB 00151H 21M
POWER ON COUNTER P-COUNT 00000095 TIMES
SYSTEM SERIAL SERIAL
Meaning Item Name ExEx. RS-232C command
TEMP1 : 104 . 3 ( F )
TEMP2 : 104 13 0.3(F ( D/A))
FAN : LOW
AHB7
To Next Page
