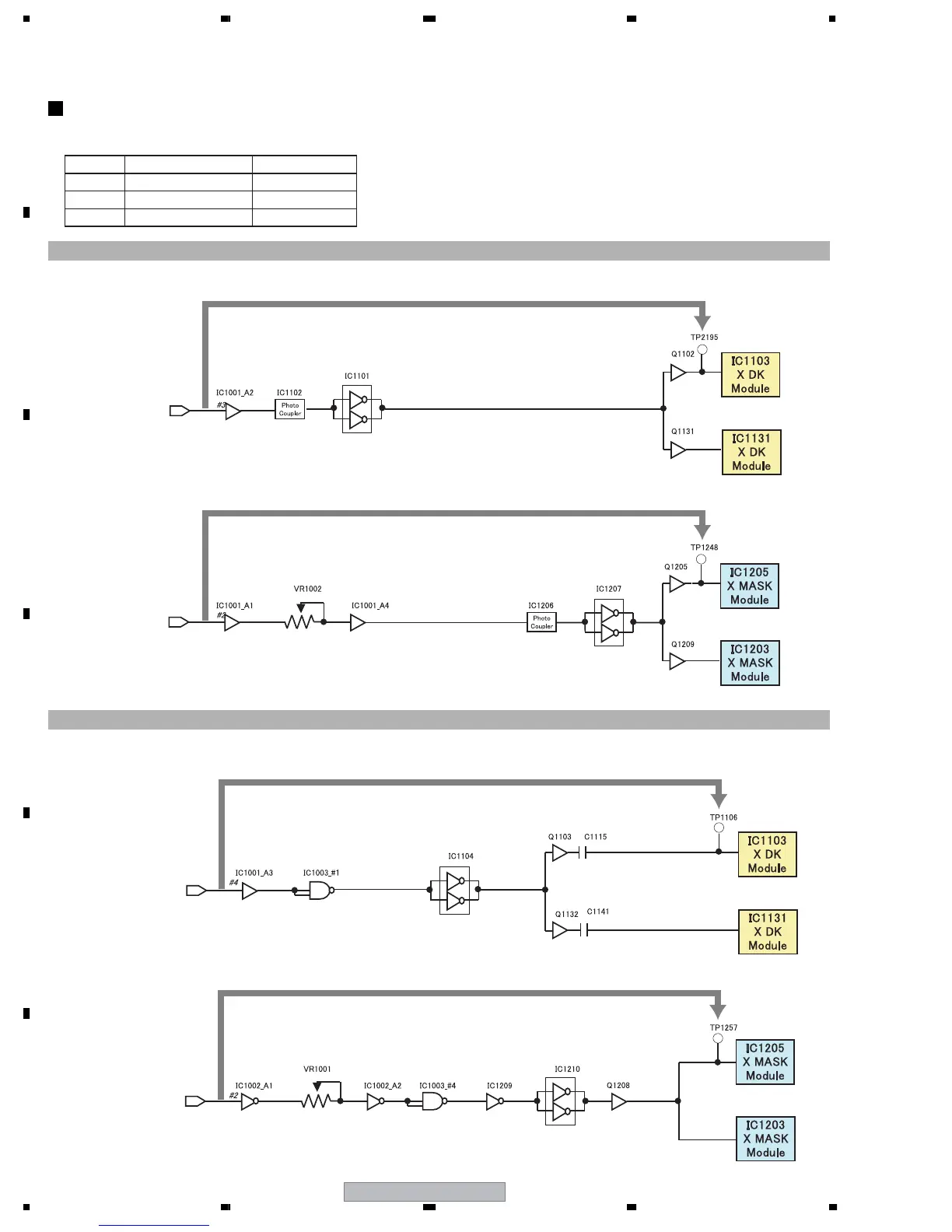

7.6 ADJUSTMENTS WHEN THE DRIVE ASSYS ARE REPLACED
1 Measure the SUS-U input delay time (∆ Tsus-u).
2 Adjust the SUS-B input delay time so that it becomes "∆ Tsus-u + α ± 5 nsec."
2 Adjust the SUS-G input delay time so that it becomes "∆ Tsus-d + β ± 5 nsec."
1 Measure the SUS-D input delay time (∆ Tsus-d).
XSUS-U
XSUS-B
XSUS-D
XSUS-G
60 X DRIVE Assy
SUS-B ADJUSTMENT
SUS-G ADJUSTMENT
from
DIGITAL Assy
from
DIGITAL Assy
from
DIGITAL Assy
from
DIGITAL Assy
Object parts
Ref. No. Part Category Part No.
IC1206 Photo Coupler PS9117-TLB
IC1207 FET Driver TND307TD-TBB
IC1210 FET Driver TND307TD-TBB
