PDP-6071PU
131
5678
56
7
8
C
D
F
A
B
E

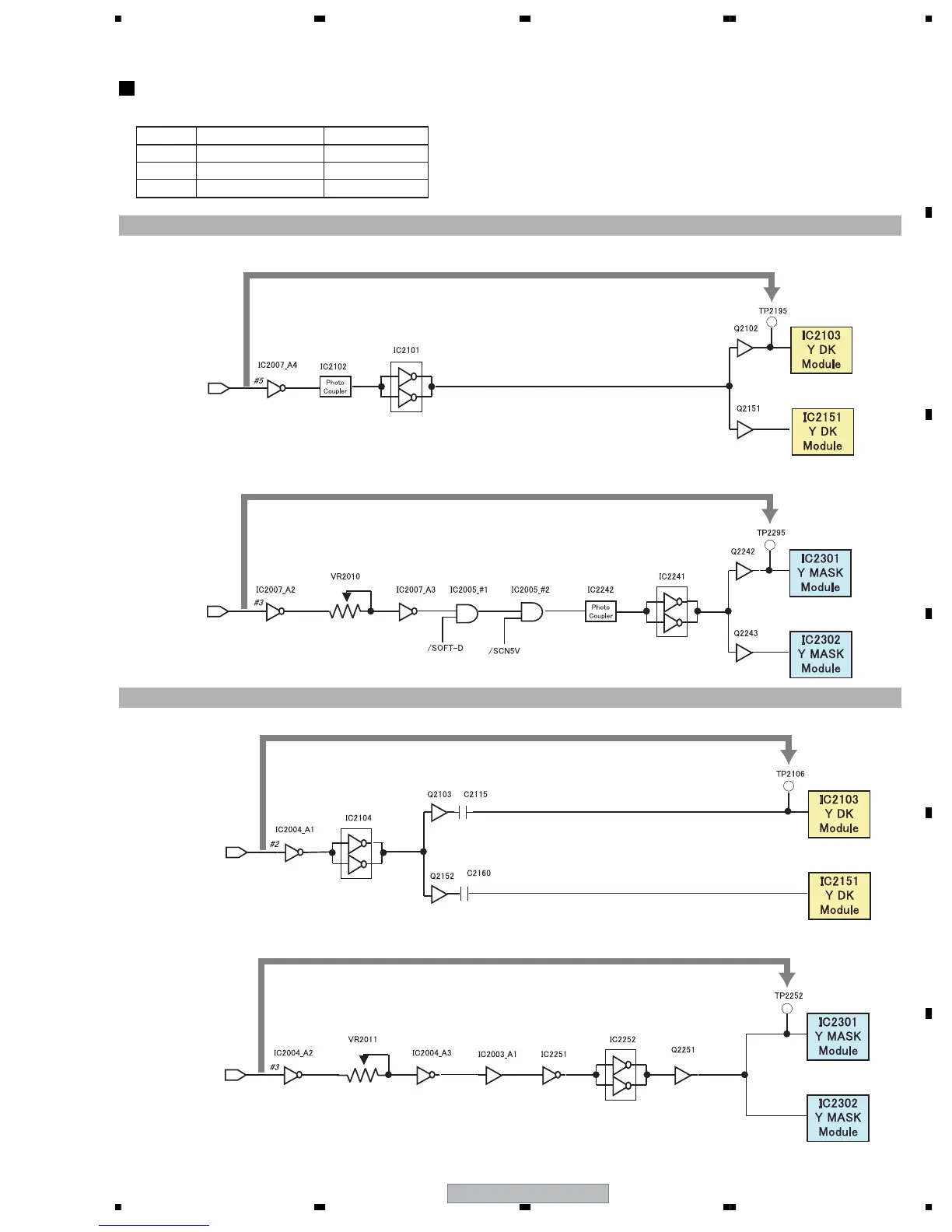

60 Y DRIVE Assy
SUS-B ADJUSTMENT
SUS-G ADJUSTMENT
YSUS-U
from
DIGITAL Assy
YSUS-B
from
DIGITAL Assy
YSUS-D
from
DIGITAL Assy
YSUS-G
from
DIGITAL Assy
1 Measure the SUS-U input delay time (∆ Tsus-u).
2 Adjust the SUS-B input delay time so that it becomes "∆ Tsus-u + α ± 5 nsec."
1 Measure the SUS-D input delay time (∆ Tsus-d).
2 Adjust the SUS-G input delay time so that it becomes "∆ Tsus-d + β ± 5 nsec."
Object parts
Ref. No. Part Category Part No.
IC2242 Photo Coupler PS9117-TLB
IC2241 FET Driver TND307TD-TBB
IC2252 FET Driver TND307TD-TBB
To Next Page
