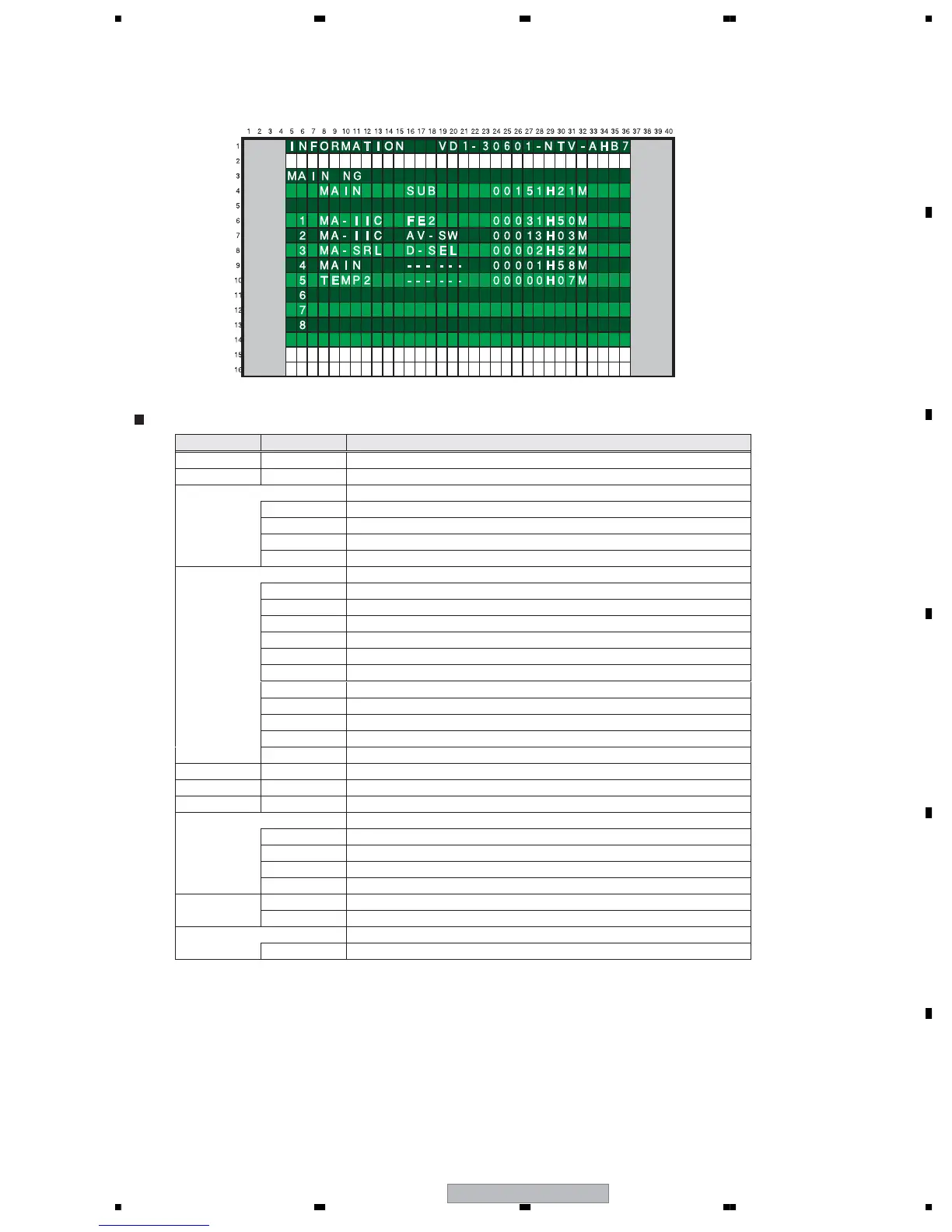

8.2.1.4 MAIN NG
MTB side’s Shutdown NG information
AUDIO ----
MODULE ---- Failure of communication to Module microcomputer
Shortcircuit of Speaker terminal
MA-SRL 3-wire Serial Communication of Main microcomputer
IF
- Communication failure of IF microcomputer
MULTI1 - MANTA communication failure (MULIT1)
I/P - MANTA communication failure (I/P)
D-SEL - MANTA communication failure (D-SEL)
MA-IIC IIC Communication failure of Main microcomputer
FE1 - Analog Tuner 1 (Front End 1)
FE2 - Analog Tuner 2 (Front End 2)
MPX - MPX
- Volume IC
AUDIO
AV-SW - AV Switch
RGB-SW - RGB Switch
M-VDEC - Main VDEC
ADC - AD/PLL
HDMI - HDMI
CCD - CCD
MAIN Communication failure of Main microcomputer &Unknown Error
MA-EEP - 64k EEPROM
FAN Fan stopped
TEMP2 Abnormally high temperature
DTUNER Failure of Digital Tuner
PS/RST - Failure to DTB Starting
DEVICE - DTB Device Error
TV-G - TV-Guide Error
HOME-G - Failure at Home Gallary
MA-PWR M-DCDC -Abnormally in RST2 of MAIN Assy (power decrease of DC-DC converter)
-Abnormally in RST4 of MAIN Assy (power decrease of Relay power)RELAY
HMG Failure at Home Media Gallary
START -
OSD:MAIN OSD:SUB Cause of shutdown
