PDP-6071PU
7
5678
56
7
8
C
D
F
A
B
E

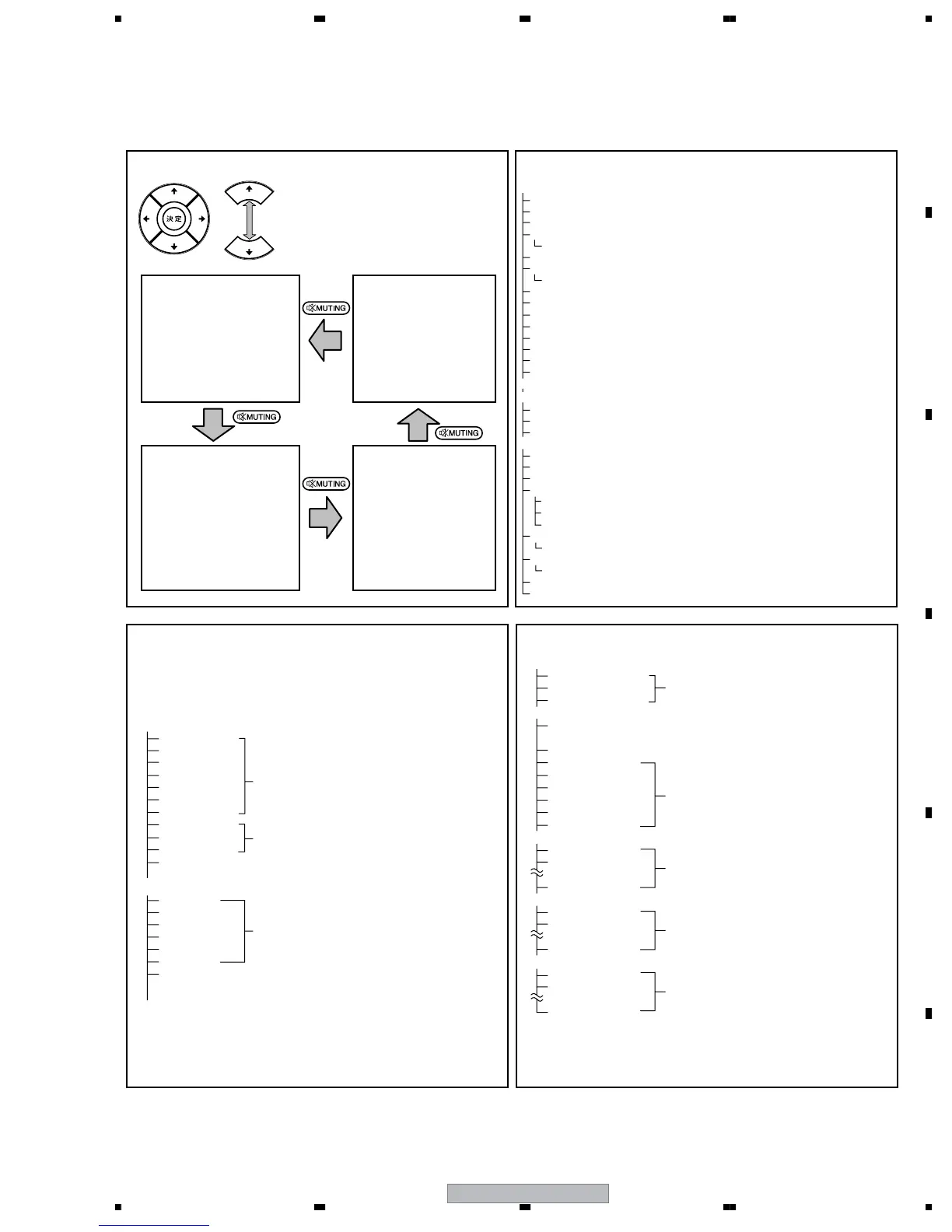

Structure of Layers in Service Factory Mode
INFORMATION mode
1. VERSION (1) Flash Versions for PANEL system and MAIN system
2. VERSION (2) Flash Versions for DTV system
3. VERSION (3) Flash Versions for CCD ucom and HM
4. MAIN NG SD histories for MAIN (Going Clear model by SET key)
4-1. CLEAR Select Yes by [\] key \ pushing and hold [SET] key
5. TEMPERATURE TEMP 1, TEMP2 and FAN mode are displayed
6. HOUR METER Hour meter and number of Power ON are displayed
6-1. CLEAR Select Yes by [\] key \ pushing and hold [SET] key
7. HDMI SIGNAL INFO 1 For factory use
8. HDMI SIGNAL INFO 2 Signal info of HDMI are displayed ( Detail are on SM )
9. VDEC SIGNAL INFO For factory use
10. DTV TUNING STATUS 1 Detail information for DTV is displayed
11. DTV TUNING STATUS 2 Detail information for DTV is displayed
12. DTV TUNING STATUS 3 Detail information for DTV is displayed
13. DTV TV-GUIDE BER For production line use
14. DEBUG INFO For factory use
PANEL FACTORY mode Refer to [PANEL FACTORY MODE]
OPTION
1. EDID WRITE MODE For factory use
2. ANTENNA MODE For production line use
3. AFT For production line use
INITIALIZE
1. SYNC DET (+) For factory use
2. SG MODE SG signal from MAIN VDEC (
Composite signal is required
)
3. SG PATTERN For factory use
4. SIDE MASK LEVEL(+) For factory use
4-1. R MASK LEVEL
4-2. G MASK LEVEL
4-3. B MASK LEVEL
5. FINAL SETUP Set to Factory default settings (it should perform after
5-1. DATA RESET replacing a MAIN board )
6. HMG/HG SERVICE MODE Information for a USB device is displayed
6-1. MODE SIFT
7. CVT AUTO For factory use
8. HDMI INTR POSITION(+) For factory use
Quick Reference upon Service Visit 2
Mode transition and structure of layers in Service Factory mode
Structure of Layers in Panel Factory Mode 1
1. PANEL INFORMATION Version indication of the panel
2. PANEL WORKS Indications of the accumulated power-on time, pulse-meter
count, and power-on count of the panel
3. POWER DOWN Indication of the Power-down history
4. SHUT DOWN Indication of the Shutdown history
5. PANEL-1 ADJ (+)
1. X-SUS B
2. Y-SUS B
3. Y-SUSTAIL T1
4. Y-SUSTAIL T2 Modification not required because these items are basically
5. Y-SUSTAIL W for factory presetting
6. XY-RST W1
7. XY-RST W2
8. VOL SUS
9. VOL OFFSET Settings required after replacement of the panel
10. VOL RST P
11. SUS FREQ. For AM noise prevention (Depending on the mode,
brightness of the screen changes.)
6. PANEL-2 ADJ (+)
1. R-HIGH
2. G-HIGH
3 .B-HIGH Parameters for the WB adjustment of the panel, which are
4. R-LOW required during adjustment after panel replacement
5. G-LOW
6. B-LOW
7. ABL Setting of the power consumption. A setting table is
available for each vertical signal.
To "Structure of Layers in Panel Factory Mode 2"
Structure of Layers in Panel Factory Mode 2
7. PANEL REVISE (+)
R-LEVEL
G-LEVEL Items for use by engineers
B-LEVEL
8. ETC (+)
1. BACKUP DATA For transferring backup data (after replacement of
the DIGITAL Assy)
2. DIGITAL EEPROM To clear data of the digital video
3. PD INFO.
4. SD INFO. For clearance of data for the corresponding items.
5. HR-MTR INFO. The clearing method is the same: Select "CLEAR",
6. PM/B1-B5 using [\], then hold [SET] pressed for at least 5
7. P COUNT INFO. seconds. After clearance is completed, {ETC} is
8. MAX TEMP. automatically selected.
9. RASTER MASK SETUP (+)
1. MASK OFF
2. RST MASK 01 For use while Raster Mask (full mask) is displayed.
• • • • • Use [»] or [«] to select the type of mask.
25. RST MASK 24
10. PATTEN MASK SETUP (+)
1. MASK OFF
2. PTN MASK 01 For use while Pattern Mask is displayed. Use [»] or
• • • • • [«] to select the type of mask.
40. PTN MASK 39
11. COMBI MASK SETUP (+)
1. MASK OFF
2. CMB MASK 01 For use while Combination Mask is displayed.
• • • • • Use [»] or [«] to select the type of mask.
11. CMB MASK 10
INFORMATION mode
1. VERSION (1)
2. VERSION (2), (3)
3. MAIN NG
4. TEMPERATURE
5. HOUR METER
6. HDMI SIGNAL INFO1, 2
7. VDEC SIGNAL INFO 2
8. DTV TUNING STATUS 1, 2, 3
9. DTV TV-GUIDE BER
10. DEBUG INFO
PANEL FACTORY mode
1. PANEL INFORMATION
2. PANEL WORKS
3. POWER DOWN
4. SHUT DOWN
5. PANEL-1 ADJ
6. PANEL-2 ADJ
7. PANEL REVICE
8. ETC.
9. RASTER MASK SETUP
10. PATTEN MASK SETUP
11. COMBI MASK SETUP
INITIALIZE mode
1. SYNC DET
2. SG MODE
3. SG PATTERN
4. SIDE MASK LEVEL
5. FINAL SETUP
6. HMG/HG SERVICE MODE
7. CVT AUTO
8. HDMI INTR POSITION
OPTION mode
1. EDID WRITE MODE
2. ANTENNA MODE
3. AFT
Up
Down
• To shift to another mode, press [MUTING].
• To shift to another item in a specific mode,
press [»] or [«].
• To shift to the next nested layer below for an
item with a "(+)" indication, press [ENTER].
To return to the next nested layer above,
also press [ENTER].
Mode transition in Service Factory mode
To Next Page
