Pioneer PDP-607CMX User Manual

151
Integrator Mode
INTEGRATOR INPUT1
ENTER
SCREEN SETUP OPTION
PROGRAM T I MER
SCREEN MASK
S I DE MASK
V I DEO WALL
BAUD RATE
I D NO. SET
:
:
:
SET EXITMENU
GREEN
01H
38400BPS

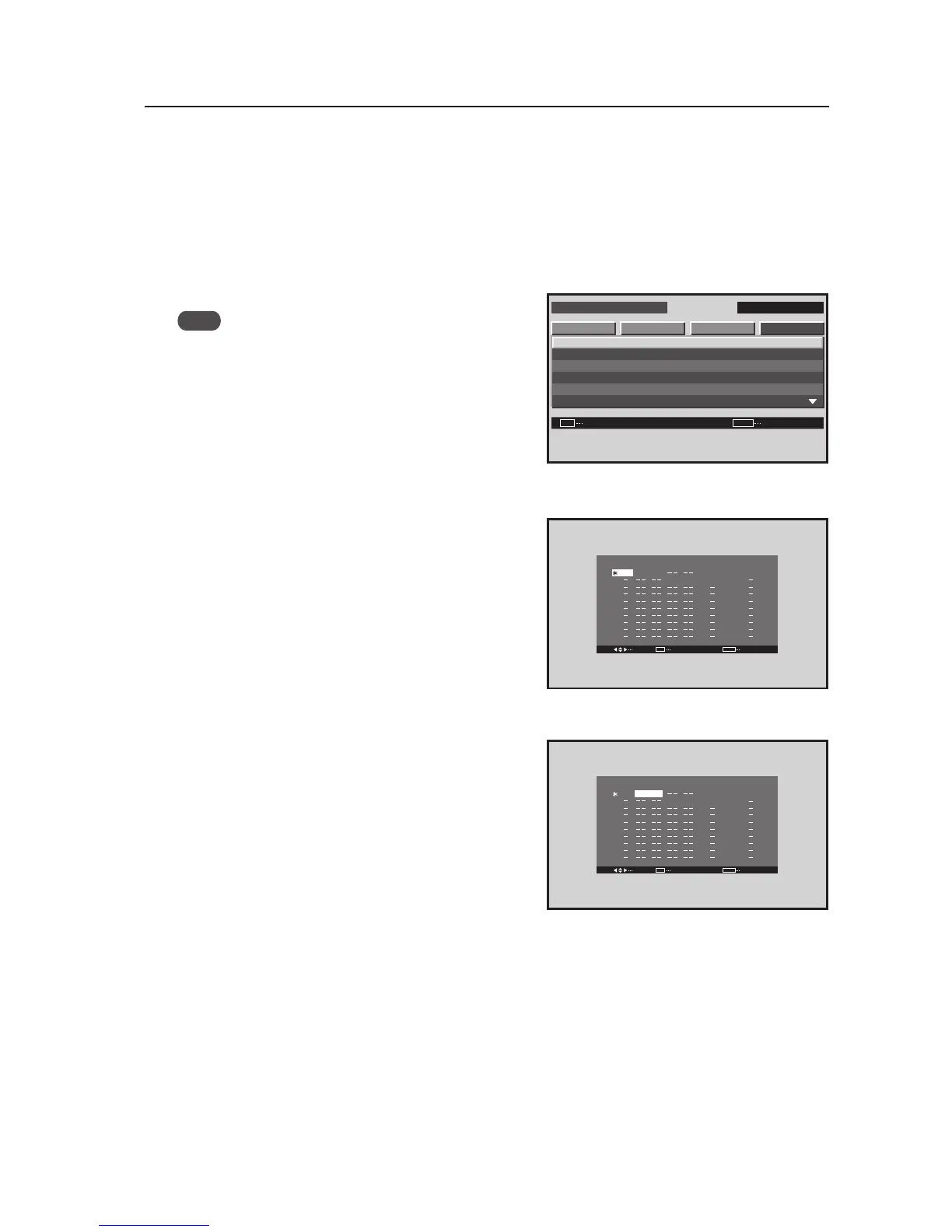

8) Program Timer Setting
This option can set the day of the week, time, input, and function desired when the power is turned ON/OFF.
1 Enter the integrator mode.
(Refer to section 5.4.1, “About the Integrator Mode” (pg. 142).)
2 Select ‘OPTION’.
3 Place the cursor on ‘PROGRAM TIMER’ then press the
[SET] button.
Note
To set REP.1 to REP.3, press the [3] button. For the
setting method, see “REPEAT TIMER Setting (pg. 180)”.
The contents of the setting are reflected individually in
REP. 1 to 3 in this page and in REPEAT TIMER in pg. 180,
so be careful about this point.
4 Select the item to be set with the [5/∞/2/3] buttons
then press the [SET] button.
5 Change the setting with the [5/∞/2/3] buttons then press
the [SET] button.
7 Program timer settings
DATE ........... Sets the day of the week the program timer
will be executed. It can be set as “every
day” or as “every Friday”
ON ............... Sets the power ON time
OFF ............. Sets the power OFF time
INPUT .......... Sets the input when the power is turned on.
FUNC. ......... Sets the function that will be executed when
the power is turned ON
ORB. ........... Sets the Orbiter
INV. ............. Displays inverted
REP.1 .......... Sets the REPEAT 1 input mode.
REP.2 .......... Sets the REPEAT 2 input mode.
REP.3 .......... Sets the REPEAT 3 input mode.
7 To reset the program;
Press the [CLEAR] button with the cursor on DATE. This resets the program.
7 To clear the set contents;
Press the [CLEAR] button with the cursor on ON, OFF, INPUT, FUNCTION. This clears the item’s contents.
Screen 3
SEL. ADJ
PROGRAM T I MER
DATE
2
3
4
5
6
7
8
9
1
RETURN
FRI
EXIT
MENU
ON
:
:
:
:
:
:
OFF INPUT
INPUT4
INPUT1
FUNC.
INVERSE
0000
23
:
00
:
:
:
:
10
:
SET
Screen 4
Screen 5
SEL. ADJ
PROGRAM T I MER
DATE
2
3
4
5
6
7
8
9
1
RETURN
FRI
EXIT
MENU
ON
:
:
:
:
:
:
OFF INPUT
INPUT4
INPUT1
FUNC.
INVERSE
0000
23
:
00
:
:
:
:
10
:
SET
