70
Wall Mount Unit: PDK-WM03
4.5.3 Hardware assembly and Plasma Display attachment

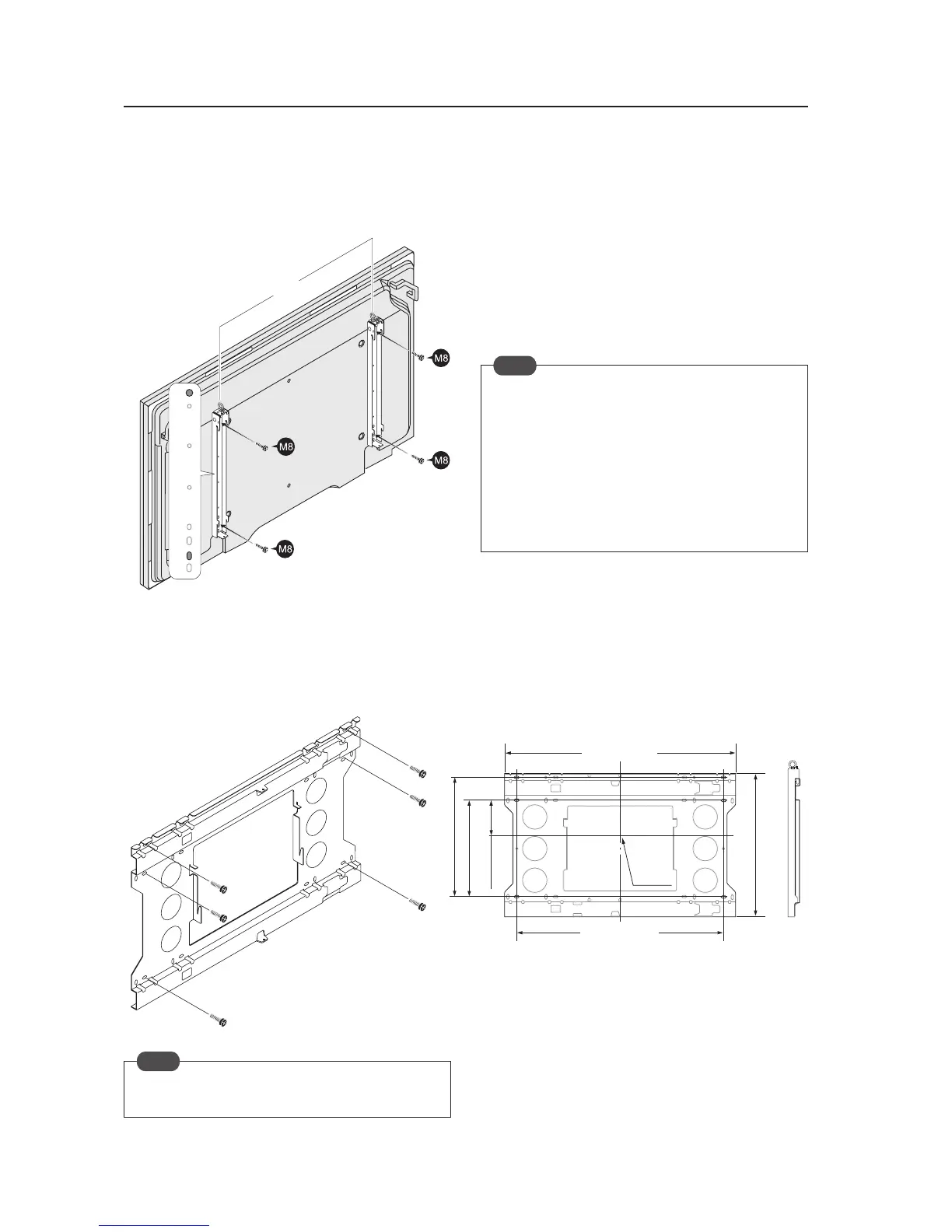

1) Attaching the metal fittings
The display comes with left side hardware and right side hardware. Do the installation so that the two eyebolts are both
on the inside.
ɔ9
Right
Eyebolt
Left
1 Align the screw holes (ø9) at the positions on the
drawing above and below the display metal fittings (one
each on the left and right side) with the screw holes
(M8) on the back surface of the Plasma Display to
anchor the two attached M8 screws.
Note
When using the optional stand PDK-TS26, you can
attach the display metal fitting with the stand installed.
When doing this, before attaching the display metal
fitting, remove the four M6 screws that anchor the
display to the stand. Make sure that when you lift the
Plasma Display, you do not also lift the stand with it. If
the stand is displaced, it may cause injuries or be
damaged.
2) Installing the hung on wall unit on the wall
Fix it in position with off-the-shelf anchors or with six M8 screws.
Center of
the display
Unit: mm (inch)
950 (37-13/32)
850 (33-15/32)
591 (23-9/32)
494.5 (19-15/32)
400 (15-3/4)
187 (7-3/8)
Note
Be sure to attach the anchors or screws to locations
of wall beams.
To Next Page
