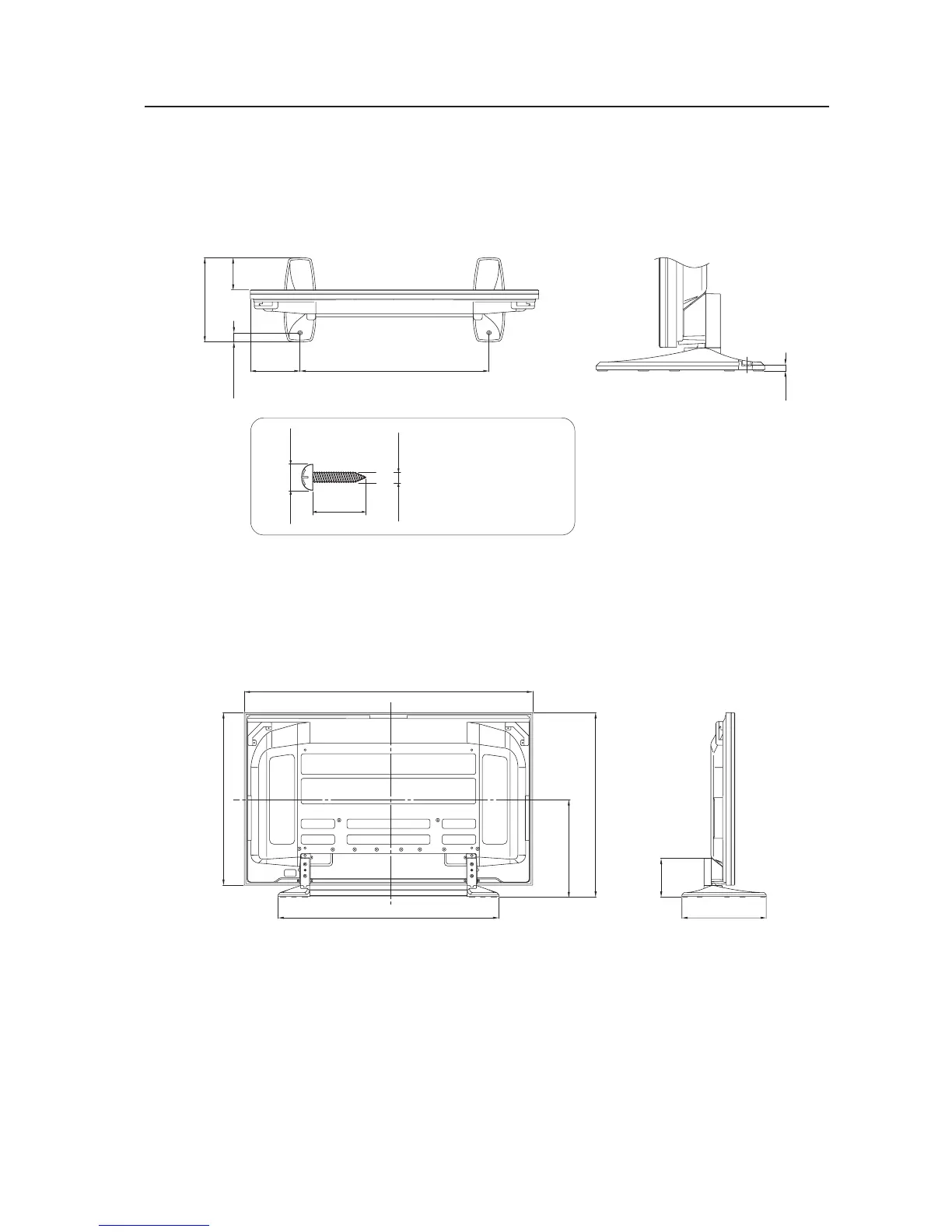

4.4.2 Installation coordinates for screws used to attach the stand to a surface
* To stabilize the equipment on the floor, use screws that have a nominal diameter of 6 mm to 8 mm (1/4 inch to
5/16 inch) and that are at least 25 mm (31/32 inch) long.
Unit: mm (inch)
Table Top Stand: PDK-TS26
4.4.3 External Dimensions
7 When using Plasma Display
Unit: mm (inch)
To stabilize the equipment on
the floor, use screws that have
a nominal diameter of 6 mm to
8 mm (1/4 inch to 5/16 inch)
and that are at least 25 mm
(31/32 inch) long.
Min. 25 mm
(31/32 inch)
6 mm to 8 mm
(1/4 inch to 5/16 inch)
12 mm to 18 mm
(15/32 inch to 23/32 inch)
963 (37-29/32)
16
(5/8)
46.5
(1-27/32)
430 (16-15/16)
253.5
(9-31/32)
164.5
(6-15/32)
1125 (44-9/32)
197
(7-3/4)
430 (16-15/16)
941 (37-1/16)
1470 (57-7/8)
880 (34-21/32)
501 (19-23/32)
[Cente of the display]
