Pioneer PDP-607CMX User Manual

58
Video Card: PDA-5003/PDA-5004

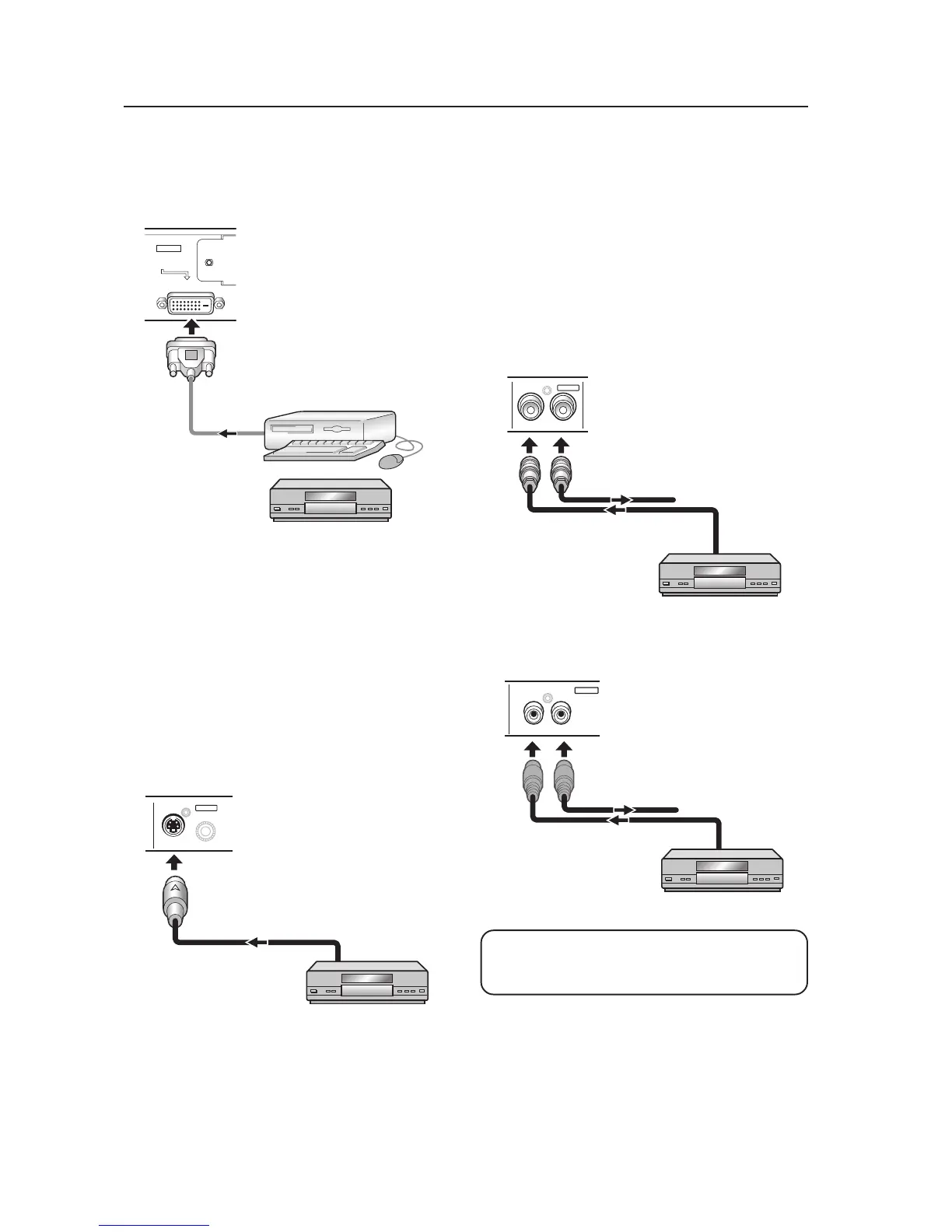

4.3.7 Connection to INPUT2
A computer equipped with DVI output (digital RGB signal)
or an AV component equipped with DVI output, can be
connected to the Plasma Display’s DVI connector.
DIGITAL RGB
(DVI-D)
INPUT2
On-screen setup is necessary after connection.
Note
Use a DVI-D 24-pin (digital only) cable for the connection.
NOTICE
¶ INPUT2 is compatible with Microsoft’s Plug & Play (VESA
DDC 2B).
¶ For screen sizes and input signals compatible with INPUT2,
please refer to the Plasma Display’s Operation Instructions.
4.3.8 Connection to INPUT3
Connect an AV component that has S-video output jack
to the video card’s S-VIDEO (INPUT3) jack.
S-VIDEO
INPUT3
AV component
AV component
To a monitor or a
recording device
4.3.9 Connection to INPUT4
Connect an AV component that has a video output jack
to the video card’s INPUT4 jack. The VIDEO OUT
(INPUT4) jack can be used to output the video signal to
a separate monitor, recording device or other
component with video input capability.
Note
A video signal will not be output from the VIDEO OUT
(INPUT4) jack when the main power of this display is off or in
standby mode.
[When using PDA-5003]
OUT
VIDEO
INPUT4
IN
[When using PDA-5004]
IN OUT
INPUT4
VIDEO
Signals to the INPUT3 and INPUT4 jacks are all
compatible with the following TV systems: NTSC,
PAL, SECAM, 4.43NTSC, PAL M and PAL N.
AV component
To a monitor or a
recording device
Computer or AV component
