Wall Mount Unit: PDK-WM03

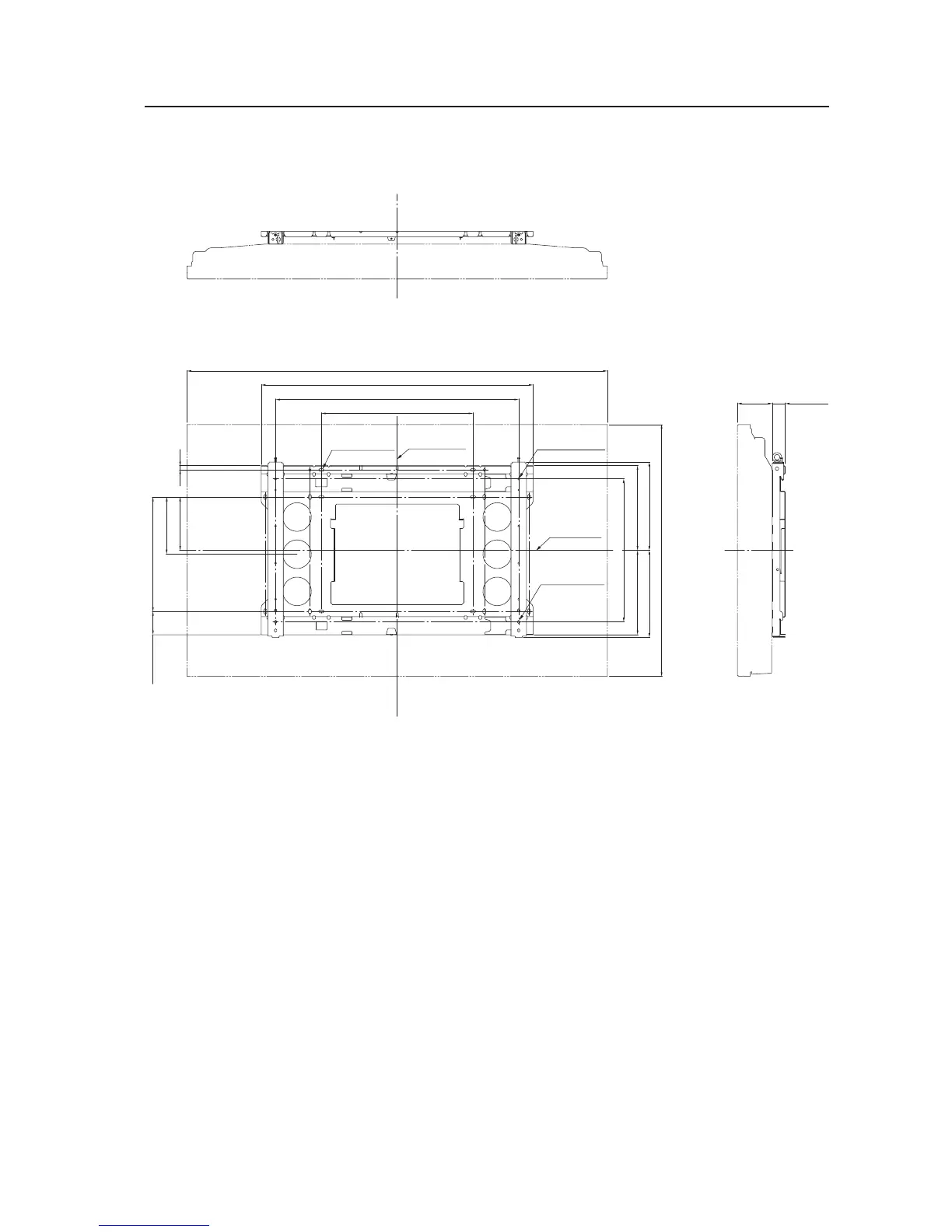

4.5.2 External Dimensions
Unit: mm (inch)
1470 (57-7/8)
950 (37-13/32)
850 (33-15/32)
530 (20-7/8)
Center of
the display
14-10x20
(14-13/32x25/32)
2-8.5x12
(2-11/32x15/32)
[Set screw position]
296 (11-21/32)
309 (12-5/32)
880 (34-21/32)
500 (19-11/16)
295 (11-5/8)
304 (11-31/32)
15 (19/32)
187 (7-3/8)
200 (7-7/8)
400 (15-3/4)
81.5 (3-7/32)
122
(4-13/16)
45
(1-25/32)
2-ø8.5 (2-ø11/32)
[Set screw position]
Center of
the display
