17
Installation Conditions
3.2 Installation Conditions
3.2.1 Heat dissipation

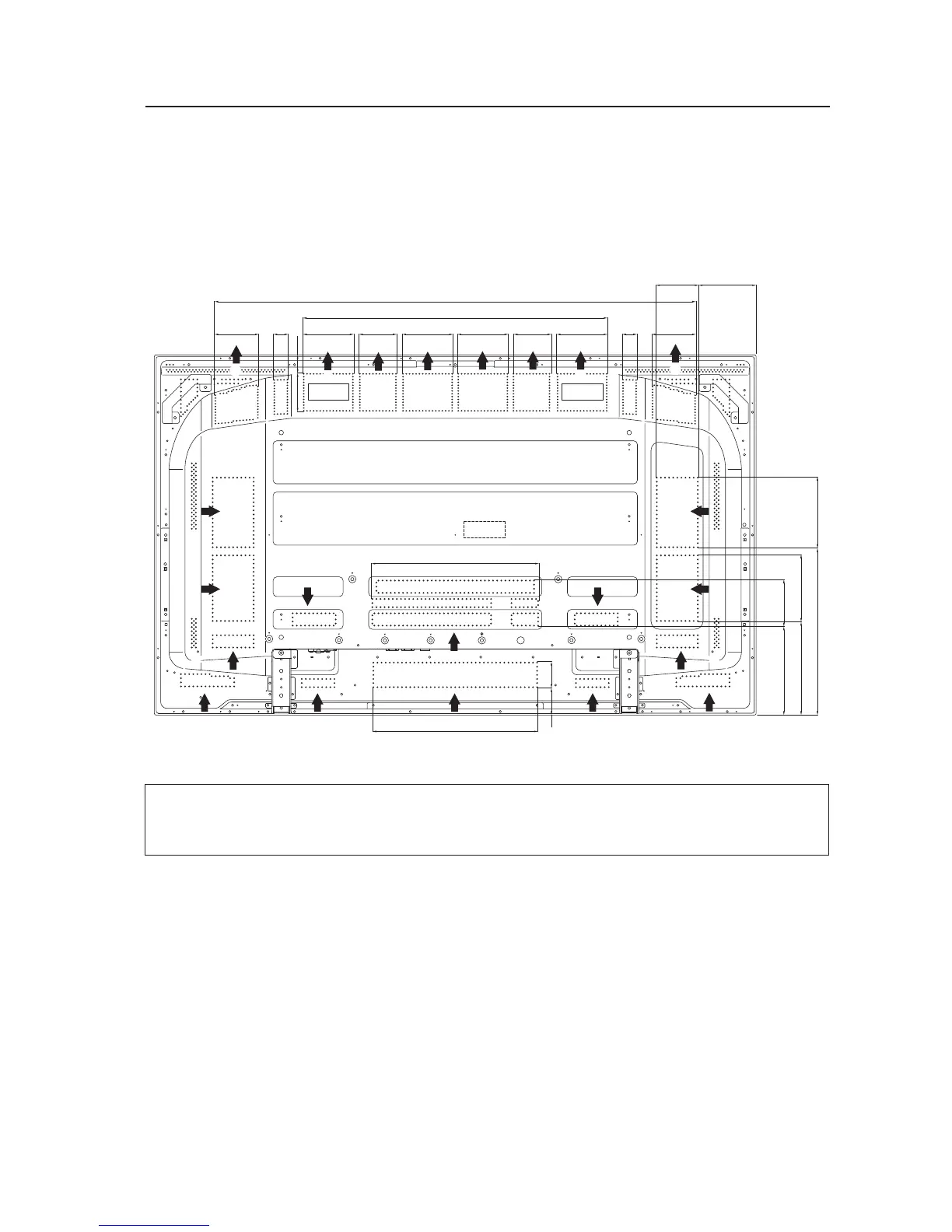

This unit has openings for effective ventilation. Vent locations are marked by arrows in the illustration below. The
arrows show the direction of airflow. To allow proper dissipation of heat from the unit, do not cover these openings.
(Unit : mm)
In a standard installation, three fans and part A draw hot air from the unit. All openings not assisted by fans serve as
air inlets. If the unit is hung from or embedded into a wall, special operating temperature limits and other limitations
may apply. Refer to section “3.4 Special Installation” (pg. 24) for more information.
108.4
36.4
124.4 92.4
44.694
FAN1
124.4
1176.4
744.4
124.4 92.4 124.4
FAN2
36.4
108.4
104.5 140.25
FAN3
409.5
174.5
114.5
164.5
407.75
216.35
227.75
66 64.4
404.4
A
A A A A
A
A
A
