66
Table Top Stand: PDK-TS26

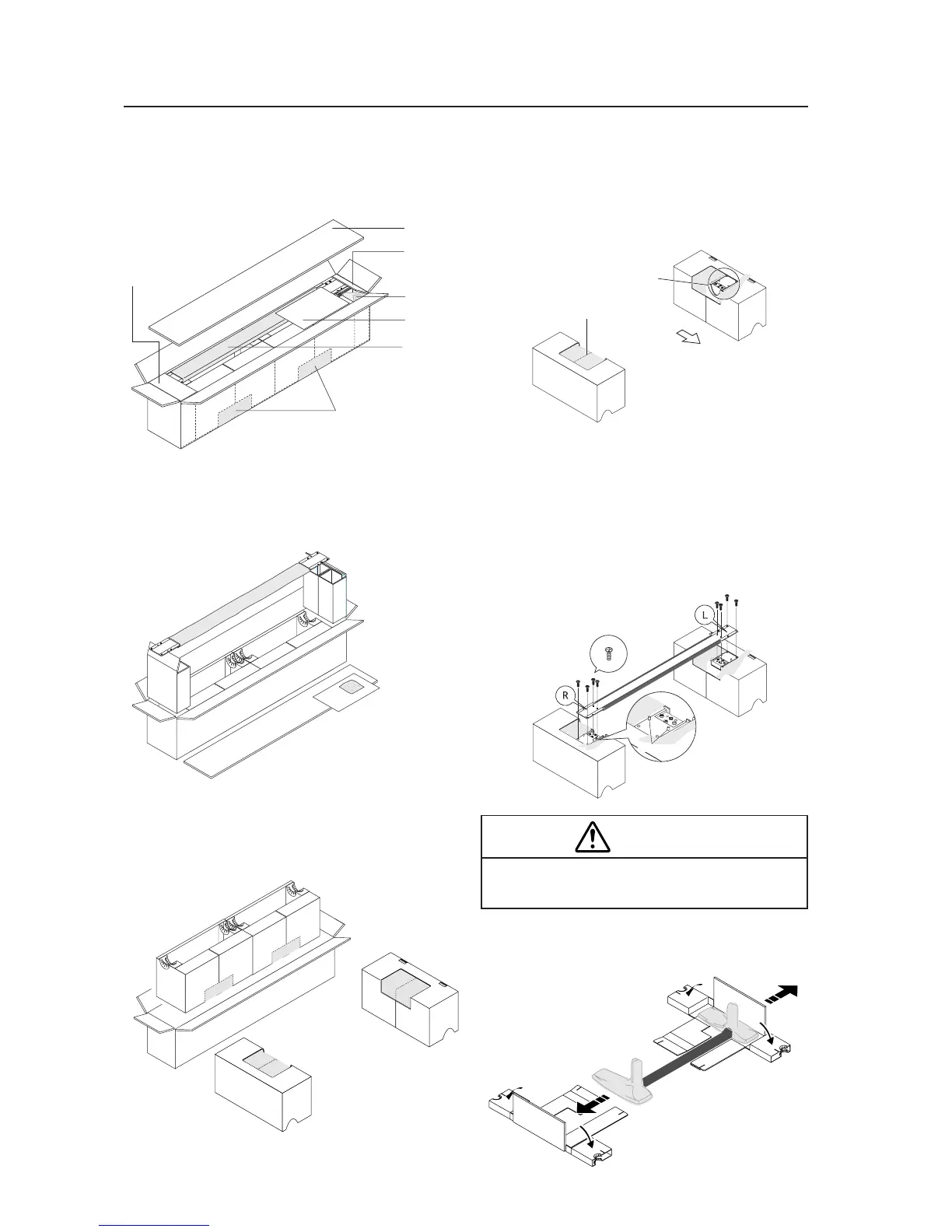

4.4.4 Stand assembling
1 Remove the cardboard and accessories (screws,
operating instructions) from the box.
2 Remove the bar then remove the shock absorbing
boxes from the left and right sides.
3 Remove the two boxes containing the feet, and set
them upside down on the floor.
Feet
(Covered with protective sheets)
View of packaged items
Bar
(Covered with
protective sheets)
Shock absorbing
boxes
Screws / Securing
brackets
Operating instructions
Cardboard
Shock
absorbing boxes
4 Tear off the protective sheets covering the feet from
their perforated lines so you can see their attach-
ments.
Place them so the attachments are towards you.
5 Take the protective sheet off the bar that you removed
in step 2, insert the bar aligned with the guide pins of
the feet.
If the bar and guide pins on the feet do not match,
the feet and bar are in reversed position. Reverse
the left and right ends of the bar and align it with the
pins again.
Then tighten it with the included stand assembly
screws (M4 × 10 mm).
Attachment
Perforated line
Toward you
Guide pins
6 Pick up the boxes containing the feet, turn them over
again, and put them back on the floor. Then take the
box out of its stand.
Tighten the screws firmly. The stand may fall over
causing injuries.
Caution
