Integrator Mode
S BY S SIZE/S BY S LAYOUT
Select a SIDE BY SIDE mode display, six options.
MODE1 MODE2 MODE3
NORMAL SBYS1 SBYS2 SBYS3
FULL SBYS4 SBYS5 SBYS6
PIP SIZE
Select the size of the PICTURE IN PICTURE sub-screen.
Note
It is also reflected in the sub-screen size when PIP has been set by “5.3.4 Adjustments and setting in the Menu
Mode: 13) SPLIT FREEZE Setting (pg. 116)”, “5.3.7 Adjustments and setting in the Menu Mode: 21) SPLIT FREEZE
Setting (pg. 141)”.
FADE PIP
If it is set to ON, it is possible to fade in/fade out (gradually appear/disappear) the sub-screen of Picture-in-picture.
Fade in occurs when the sub-screen has changed from no input to a signal.
It is possible to perform fade in/fade out with an RS-232C command at optional times. For details, refer to “5.5.5 List
of RS-232C Commands (pg. 194)”.
Note
It also operates during BANNER PIP.
AB
AB
A
B
A
B
B
A
B
A
682 (682)* 683 (683)*
682 683 341 1024 1024 341
512
(384)*
768
256
(192)*
768 768
341
(341)*
1024
(1024)*
1024
(1024)*
341
(341)*
768
(576)*
768
(576)*
256
(192)*
*: Numbers in ( ) represent a case of 16:9 contents.

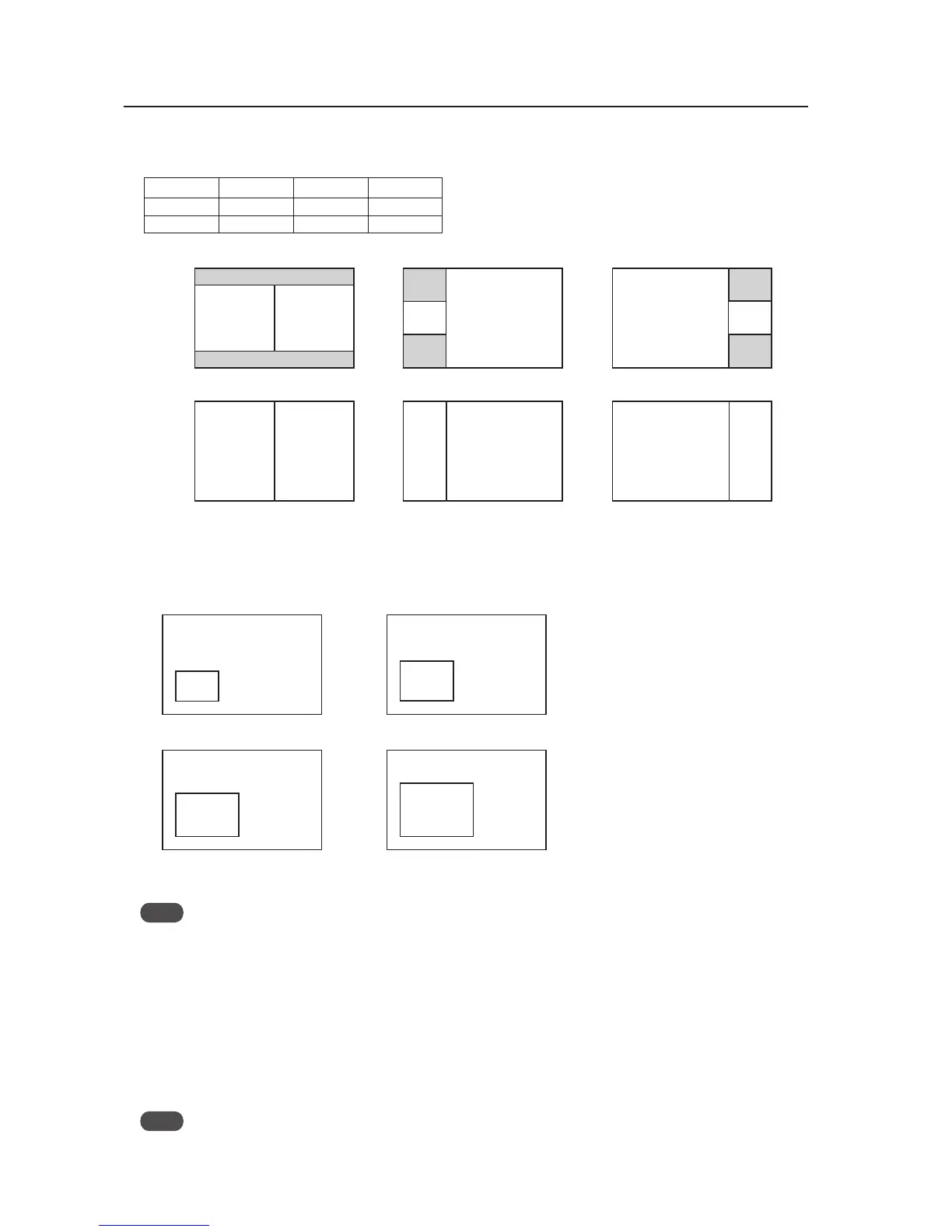

SIDE BY SIDE1
SIDE BY SIDE2 SIDE BY SIDE3
SIDE BY SIDE4
SIDE BY SIDE5 SIDE BY SIDE6
B
B
B
B
A
A
A
A
340
(340)*
256
(192)*
440
(440)*
640
(640)*
330
(248)*
480
(360)*
540
(540)*
405
(304)*
*: Numbers in ( ) represent a case of 16:9 contents.
PIP1
PIP2
PIP3 PIP4
