23

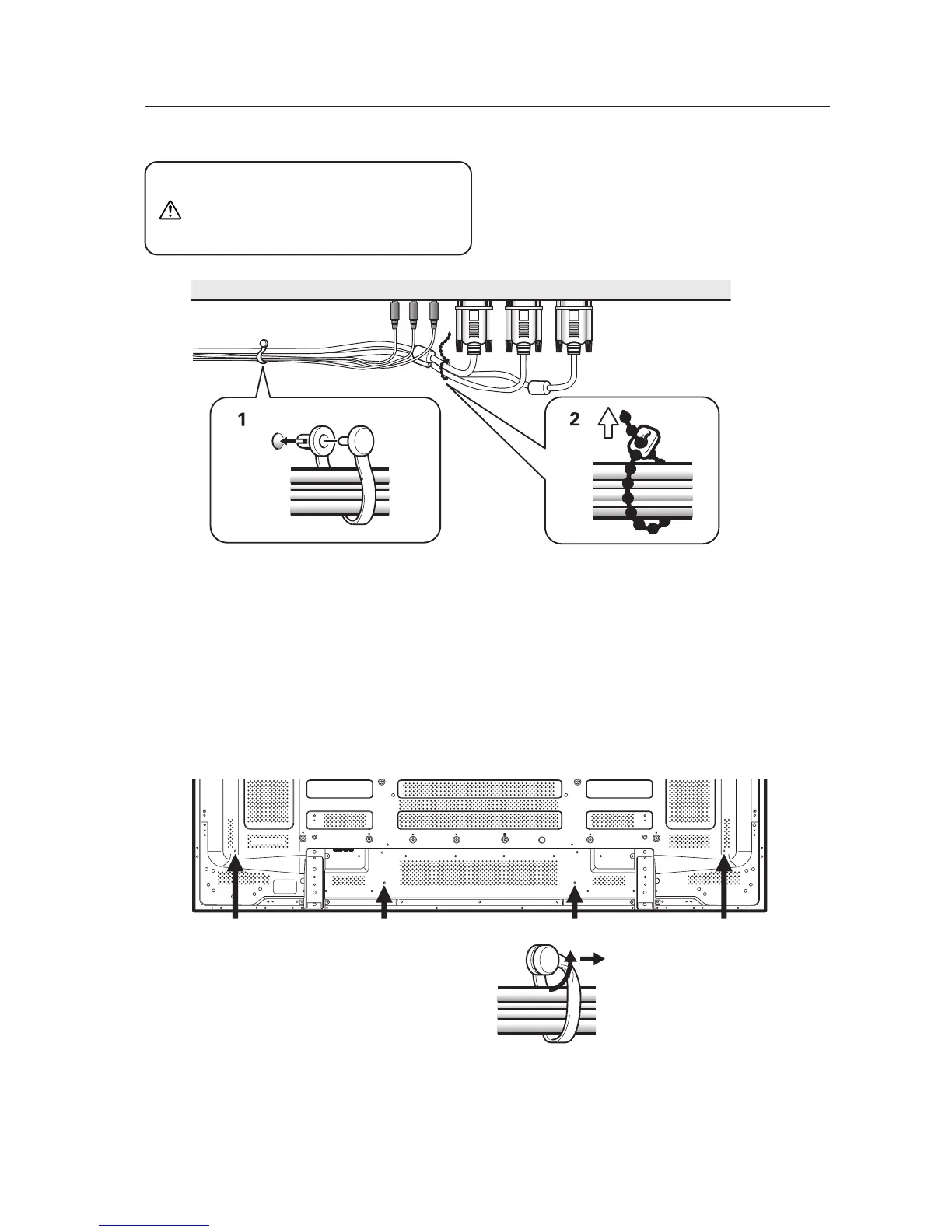

4) Arranging and securing cables with speed clamps and bead bands
Fasten cables using the supplied speed clamps.
Once speed clamps are fastened, they are
not easily removed.
Installation Procedures
* As viewed from the rear of the display.
1
2
2. Bunch separated cables together and secure them
with the provided bead bands.
Do not allow excessive stress to be placed on the
ends of cables.
Note
Cables can be routed to the right or left.
* As viewed from the rear of the display.
1. Organize cables together using the provided
speed clamps.
Insert 1 into an appropriate hole on the rear of the
unit then snap 2 into the back of 1 to fix the clamp.
Speed clamps are designed to be difficult to undo
once in place. Please attach carefully.
To attach the speed clamps to the main unit
Connect the speed clamps using the 4 holes marked with
“‡” below, depending on the situation.
To remove speed clamps
Using pliers, twist the clamp 90° and pull outward.
In some cases, the clamp may have deteriorated over
time. Removed speed clamps may not be re-usable.
To Next Page
