Piper PA-28RT-201T - Page 204

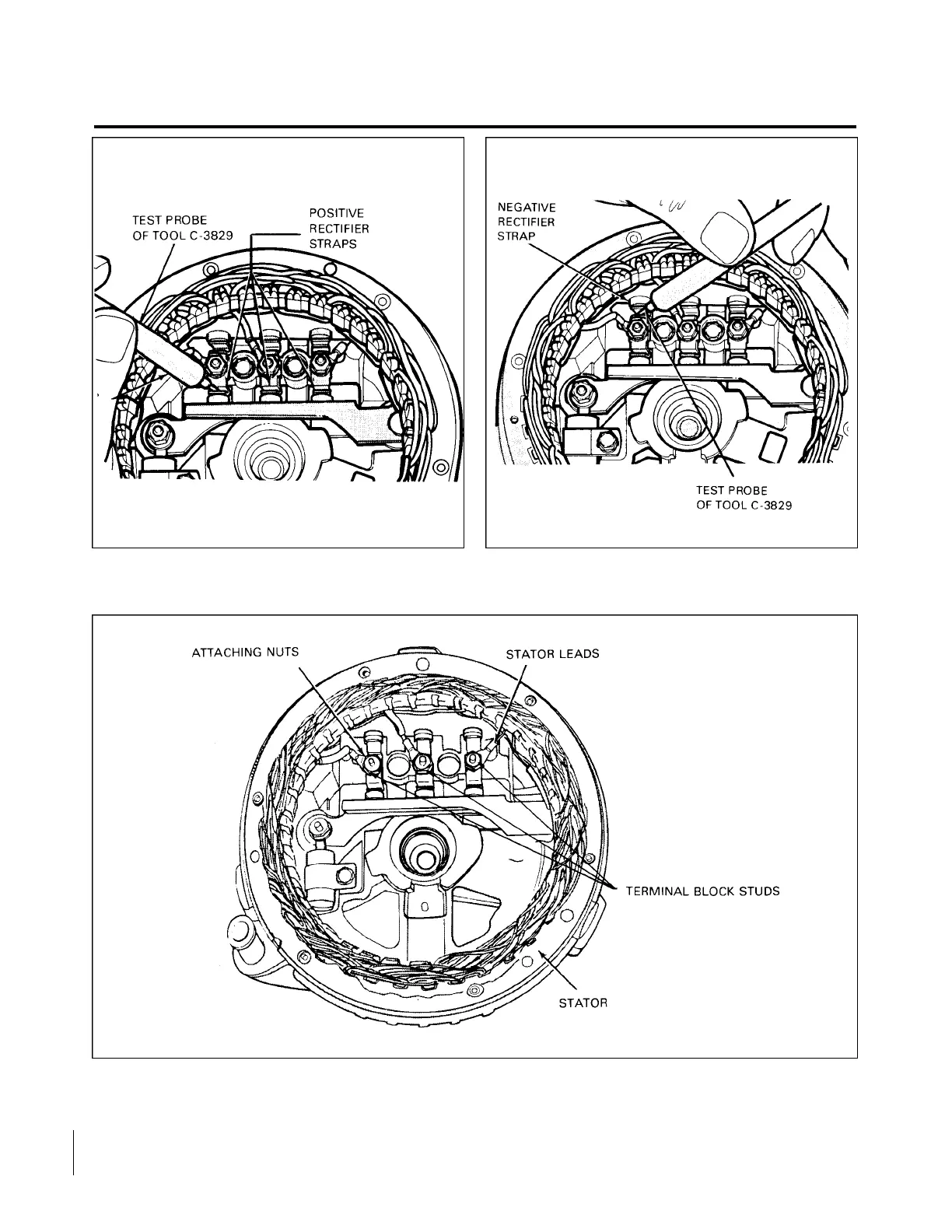

Figure 24-5. Testing Positive Rectifiers Figure 24-6. Testing Negative Rectifiers
With C-3829 Tester With C-3829 Tester
Figure 24-7. Rectifier End Shield and Stator Assembly
24-32-06
EFFECTIVITY: Page 24-17
CHRYSLER ALTERNATOR Revised: July 13, 1983
1I12
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
