Piper PA-28RT-201T - EXTERIOR PLACARDS AND MARKINGS

PIPER AIRCRAFT
PA-28RT-201/201T
*MAINTENANCE MANUAL
EXTERIOR PLACARDS AND MARKINGS.
3261
1. PLACARD - FLAP LEVER
24. PLACARD
- OLEO SERVICE INSTRUCTIONS (NOSE GEAR)
2. MEDALLION
- CONTROL WHEEL
25. PLACARD
- OLEO SERVICE INSTRUCTIONS (MAIN GEAR)
3. PLACARD
- A/P INTR.
26. PLACARD
- STABllATOR TRIM
4. PLACARD - MIKE
27. PLACARD
- "EMERGENCY DOWN"
5. PLACARD
- CABIN AFT
28. PLACARD
- "OVERRIDE ENGAGE"
6. PLACARD
- OXYGEN SUPPORT
29. PLACARD
- "EMERGENCY GEAR LEVER"
7. PLACARD - WARNING
30. PLACARD
- BAGGAGE LIMITATIONS
8. PLACARD
- DOME LIGHT MAXIMUM
31. PLACARD
- RUDDER TRIM
9. PLACARD - INSTRUMENT LIGHTS, PANEL 32. PLACARD - "SOFT WEAR ONLY"
10. PLACARD
- INSTRUMENT LIGHTS 33. PLACARD - "R" TANK, 36 GALLONS
1 1. PLACARD
- EXTERNAL POWER
34. PLACARD
- "L" TANK, 36 GALLONS
12. PLACARD
- WARNING 35. PLACARD - FUEL OFF
1 3. PLACARD
- PITCH TRIM
36. PLACARD - AIRCRAFTLIMITATIONS
14. PLACARD - WARNING PLACARD - AIRCRAFT LIMITATIONS
15. PLACARD
- E.L.T. LOCATION
37. PLACARD
- FUEL
16. PLACARD
- MIKE AND PHONE
38. PLACARD
- PIPER-AIRE
17. PLACARD
- MIKE JACK (WITH CONSOLE MIKE JACK)
39. PLACARD
- AIR CONDITIONING DOOR OPEN
18. PLACARD
- ALTITUDE REPORTER INSTALLED
40.
PLACARD
- ALTERNATE STATIC SOURCE
19. PLACARD
- OPEN
41. NAMEPLATE
20. PLACARD
- LATCH
42. PLACARD
- AUTOFLITE II
21. PLACARD - DOOR LOCK
43. MEDALLION
- PIPER
22. PLACARD
- TURN LIMIT CENTER MARK
44.
PLACARD
- HEATER AND DEFROSTER
23. PLACARD
- TURN LIMIT
5
45. PLACARD - COMPASS DEVIATION
46. PLACARD
- ENGINE CONTROLS
_I
DENOTES INTERNAL
DENOTES EXTERNAL

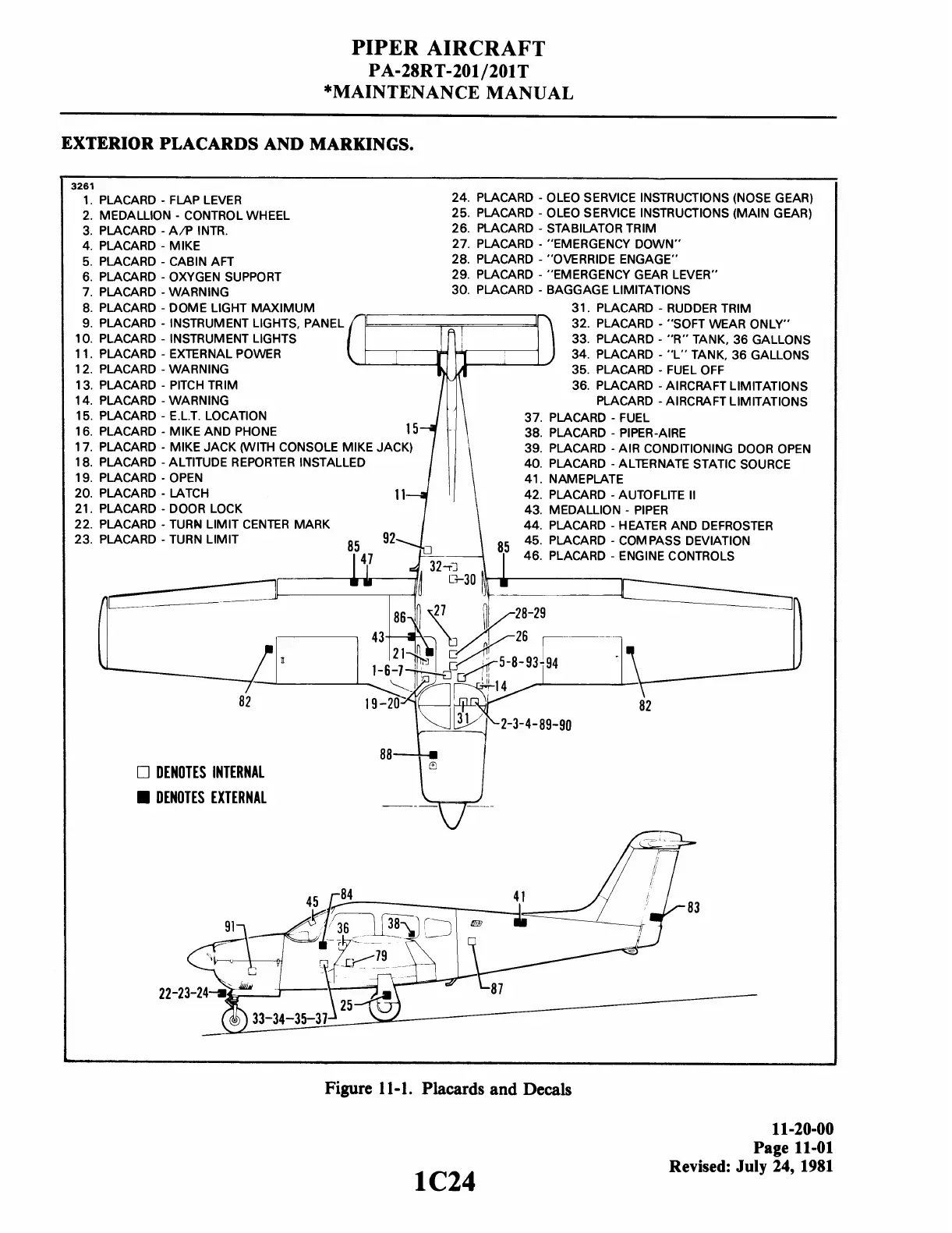

Figure 1 1 - 1. Placards and Decals
11-20-00
Page 11-01
Revised: July 24, 1981
