Piper PA-28RT-201T - FUEL PUMP, PA-28 RT-201; TURN AND BANK, PA-28 RT-201 AND 201 T; FUEL PUMP, PRIME SWITCH, DIVERTER VALVE AND MANIFOLD PRESSURE SWITCH, PA-28 RT-201 T

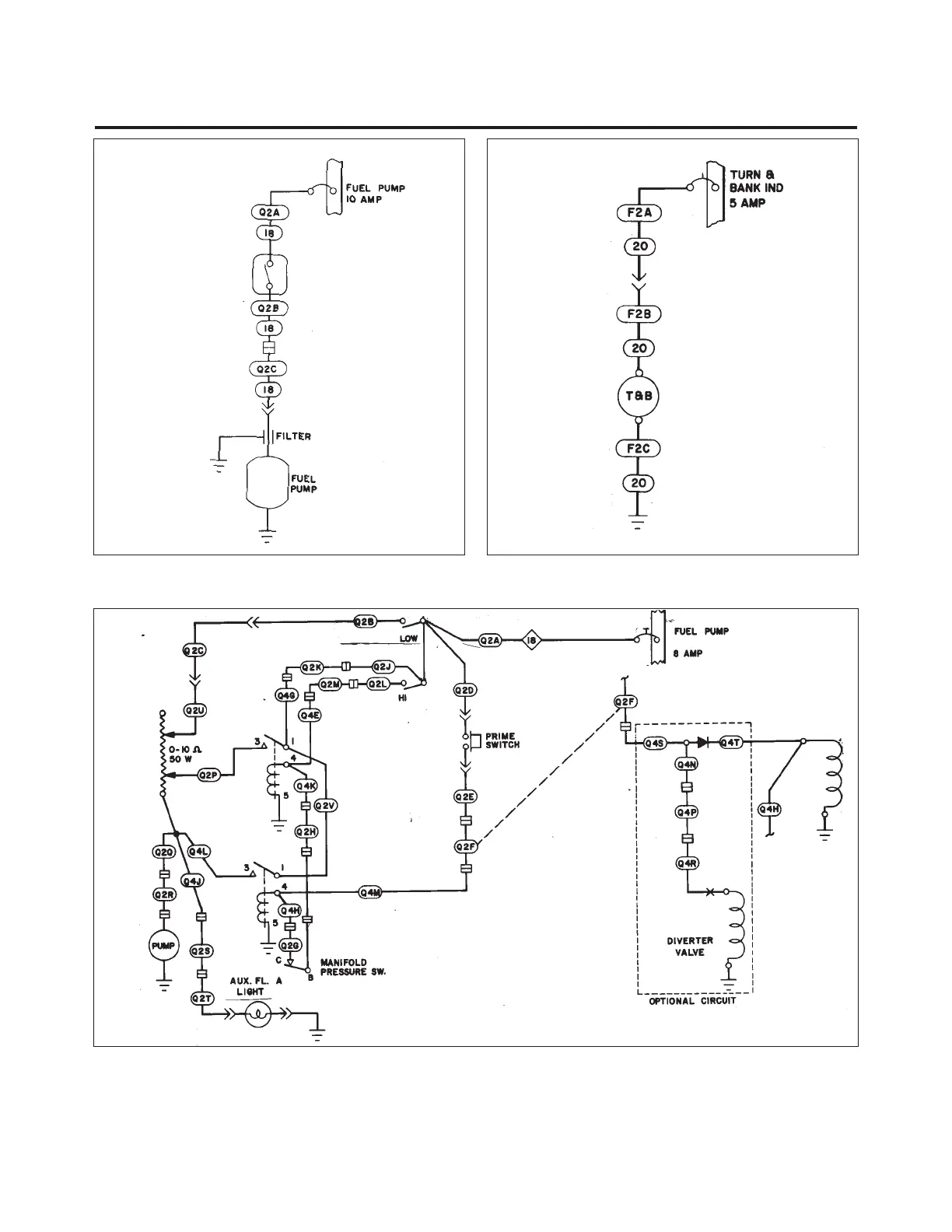

Figure 91-15. Fuel Pump, PA-28RT-201 Figure 91-16. Turn and Bank,
PA-28RT-201 and 201T
Figure 91-17. Fuel Pump, Prime Switch, Diverter Valve
and Manifold Pressure Switch, PA-28RT-201T
