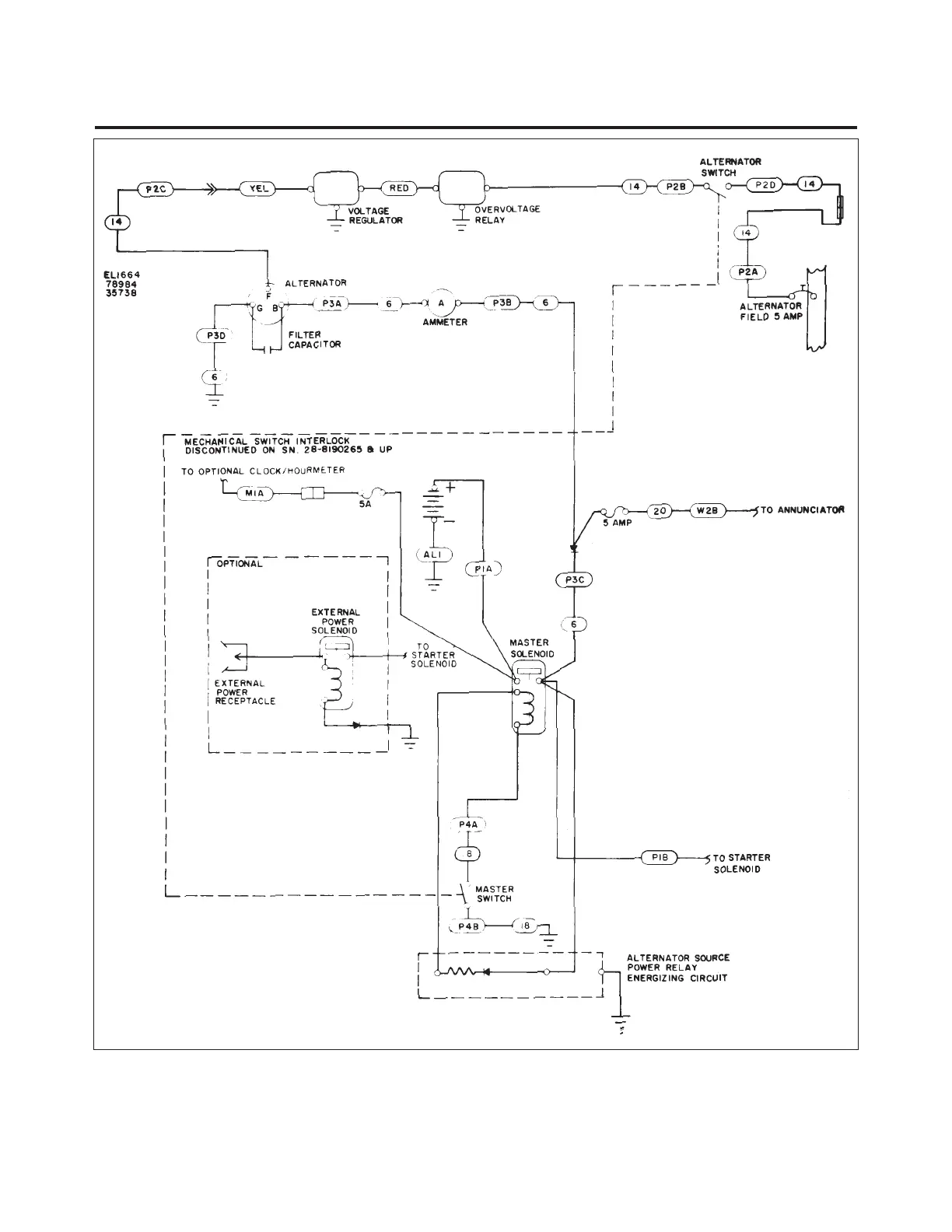

Figure 91-9. Alternator System/External Power, PA-28RT-201 S/N’s: 28R-8018001 to 8118005, PA-28RT-
201T S/N’s: 28R-8031001 to 813005
91-00-09
Page 91-24
Revised: August 17, 1982
3I12
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
