Piper PA-28RT-201T - ELECTRICAL WIRE CODING AND SYMBOLS

ELECTRICAL WIRE CODING AND SYMBOLS.

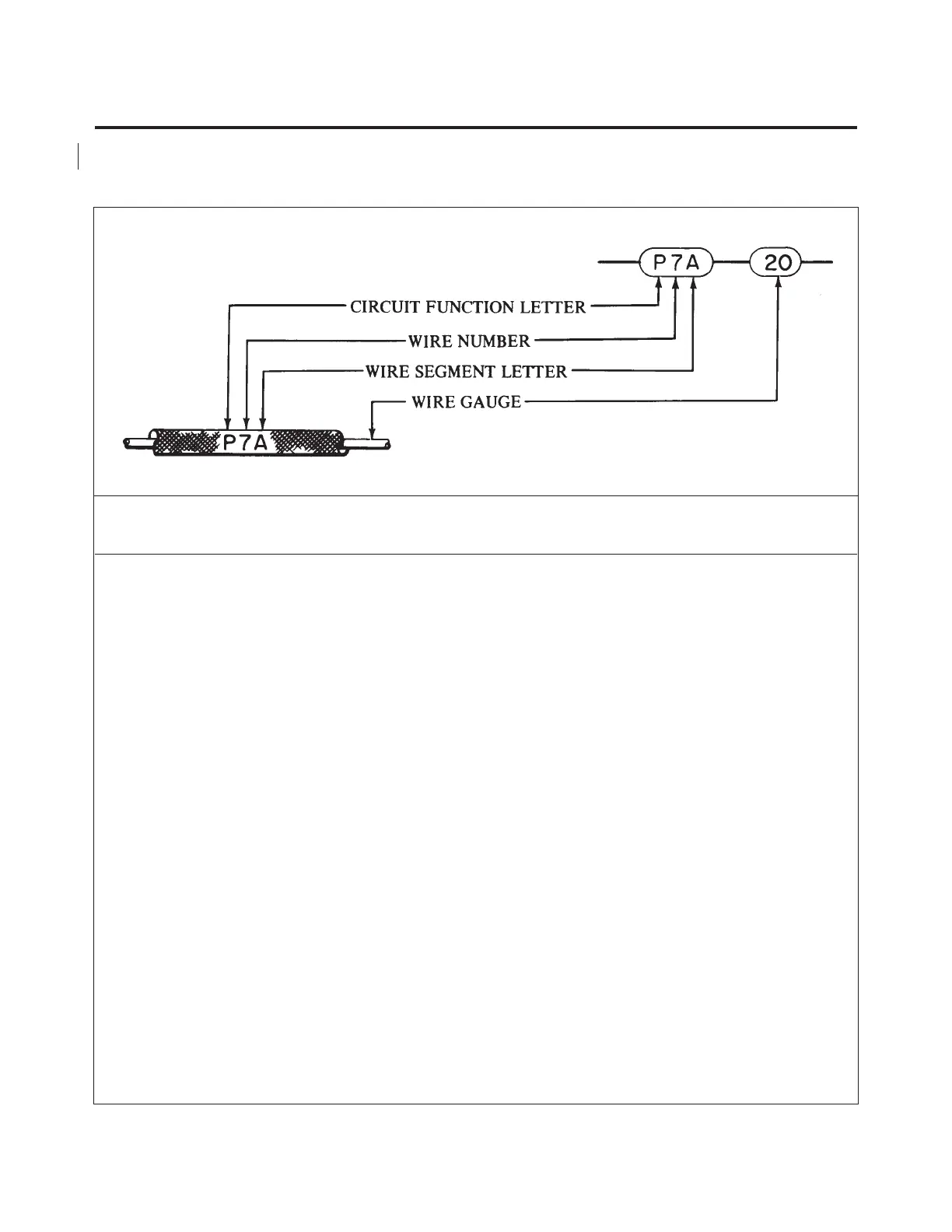

CHART 9106. ELECTRICAL WIRE CODING
CIRCUIT FUNCTION
LETTER CIRCUITS
A AUTOPILOT
C CONTROL SURFACE
E ENGINE INSTRUMENT
F FLIGHT INSTRUMENT
G LANDING GEAR
H HEATER - VENTILATION & DEICING
L LIGHTING
P POWER
Q FUEL & OIL
RP RADIO POWER
RG RADIO GROUND
RZ RADIO AUDIO & INTERPHONE
J IGNITION
W WARNING
K STARTER
91-00-09
Page 91-16
Revised: December 21, 1981
3I1
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
