Piper PA-28RT-201T - CIGAR LIGHTER, PA-28 RT-201;201 T; PITOT;STATIC, PA-28 R-201 AND 201 T; AVIONICS SWITCHING;EMERGENCY BUS

THIS SPACE INTENTIONALLY
LEFT BLANK

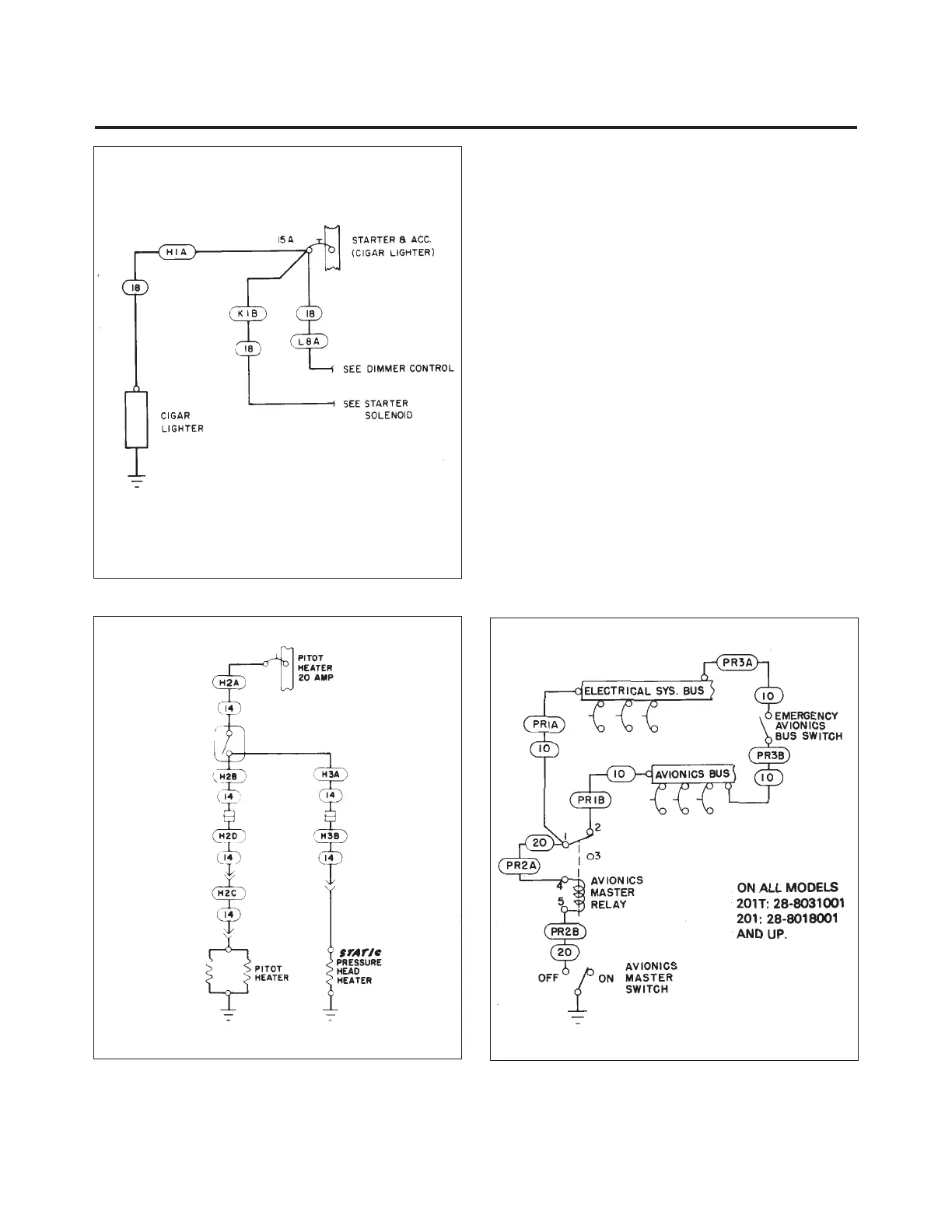

Figure 91-5. Cigar Lighter, PA-28RT-201/201T
Figure 91-6. Pitot/Static, PA-28R-201 and 201T Figure 91-7. Avionics Switching/Emergency Bus
91-00-09
Page 91-22
Revised: August 17, 1982
3I10
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
