Piper PA-28RT-201T - NAVIGATION LIGHTS, PA-28 RT-201, PA-28 RT-201 T; CABIN;OVERHEAD FLOOD LIGHT; CABIN;OVERHEAD FLOOD LIGHTS; DIMMER;SWITCH AND RADIO LIGHTS, PA-28 RT-201 (EARLY MODELS)

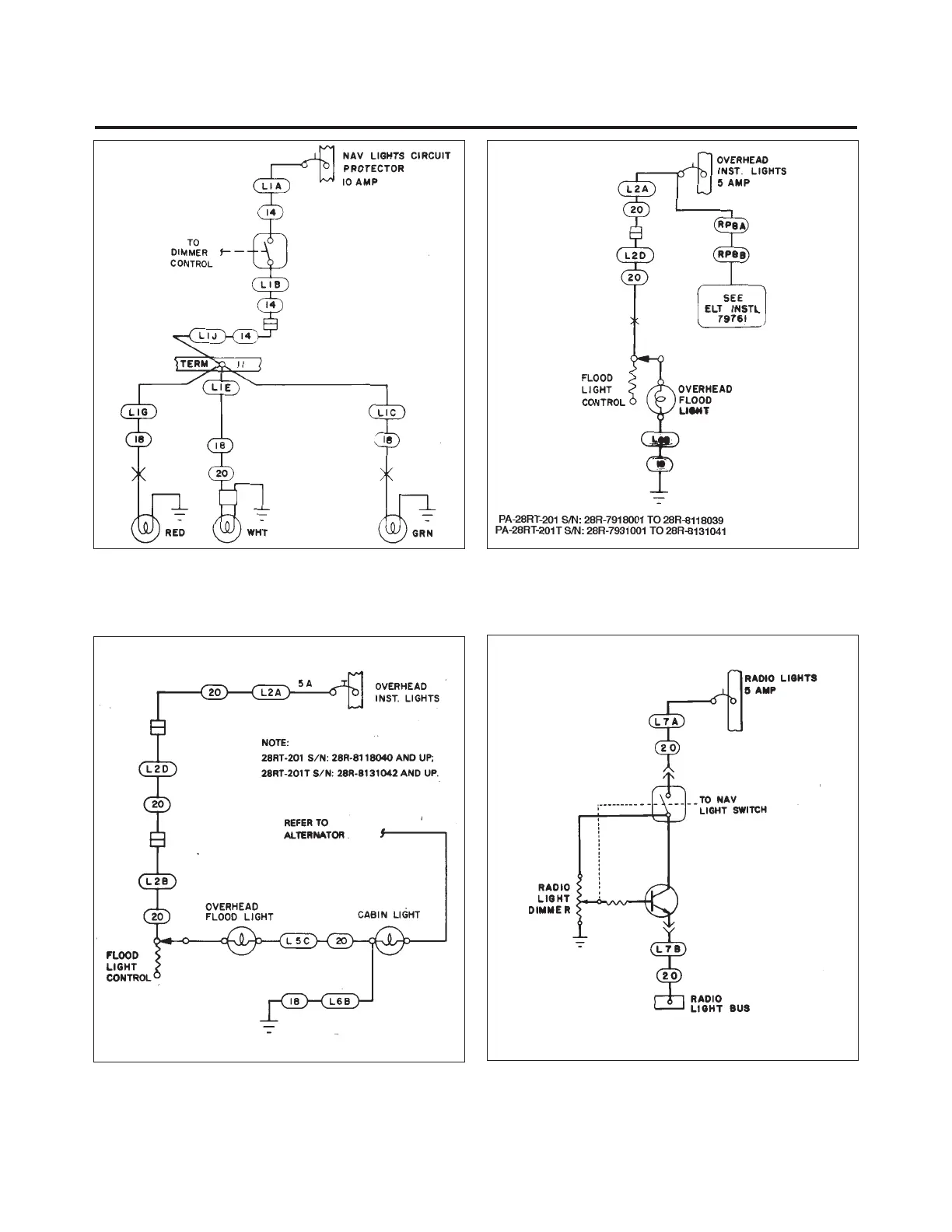

Figure 91-28. Navigation Lights, Figure 91-29. Cabin/Overhead Flood Light
PA-28RT-201 S/N’s: 28R-8118040 and up,
PA-28RT-201T S/N’s: 28R-8131042 and up
Figure 91-30. Cabin/Overhead Flood Lights Figure 91-31. Dimmer/Switch and Radio Lights,
PA-28RT-201 (Early Models)
91-00-09
Page 91-35
Revised: August 17, 1982
3I23
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
