Piper PA-28RT-201T - DIMMER; INSTRUMENT LIGHTS CONTROL, PA-28 RT-201 T (EARLY MODELS); DIMMER; INSTRUMENT LIGHTS CONTROL, PA-28 RT-201 T (LATER MODELS)

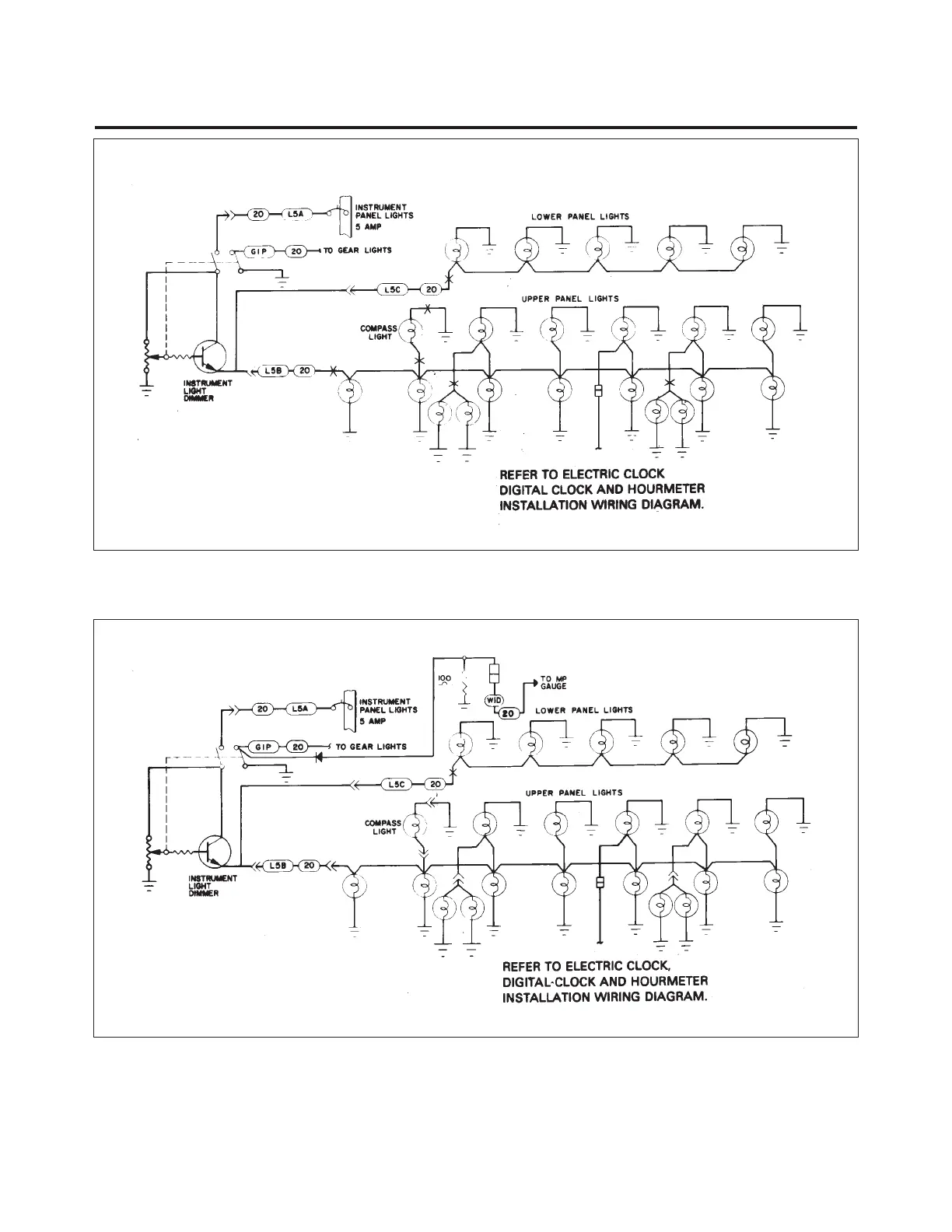

Figure 91-32. Dimmer/ Instrument Lights Control,
PA-28RT-201T (Early Models)
Figure 91-33. Dimmer/ Instrument Lights Control,
PA-28RT-201T (Later Models)
