Piper PA-28RT-201T - Page 206

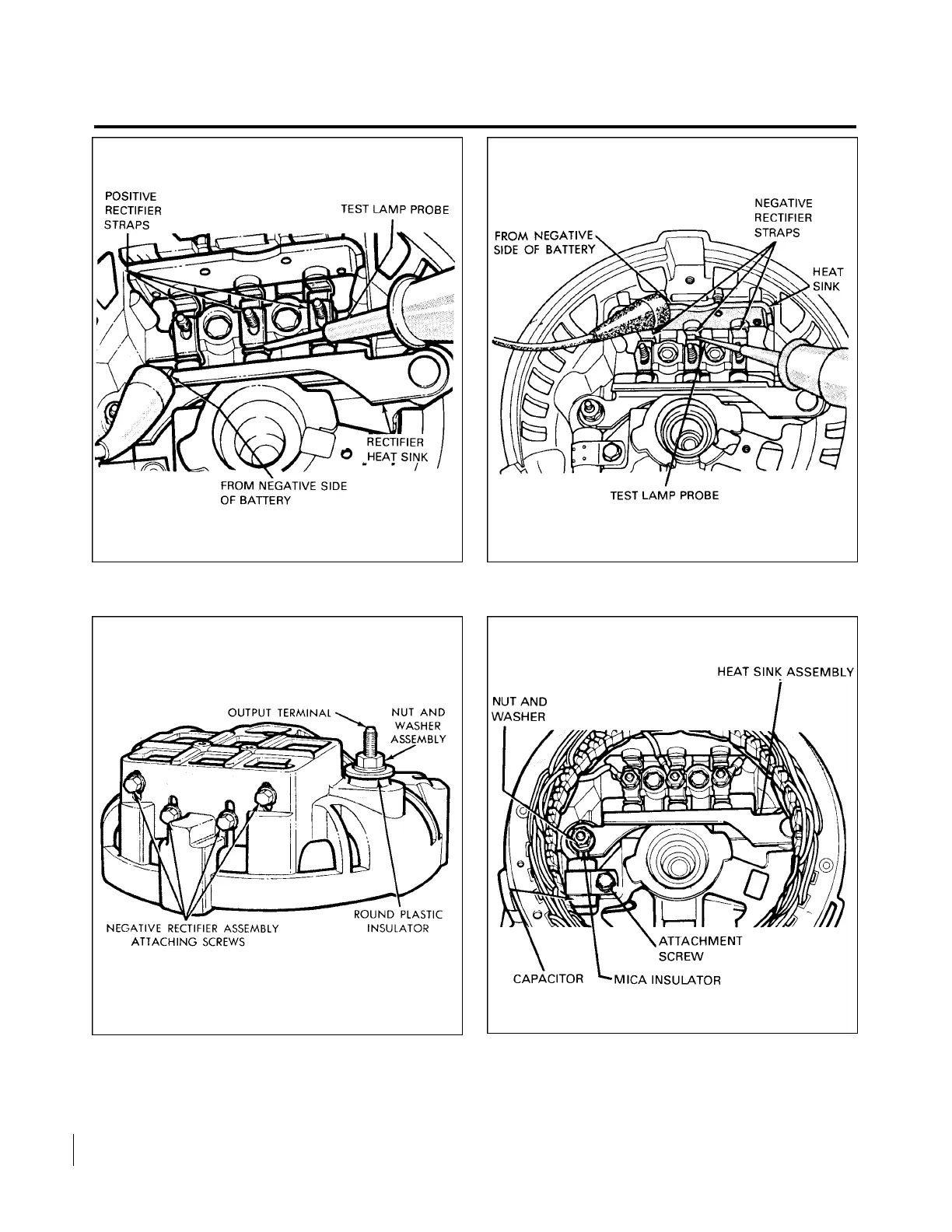

Figure 24-8. Testing Positive Rectifiers Figure 24-9. Testing Negative Rectifiers
With Test Lamp With Test Lamp
Figure 24-l0. Rectifier and Heatsink Figure 24-l l. Rectifier End Shield Assembly
Assembly Removal
24-32-08
EFFECTIVITY: Page 24-19
CHRYSLER ALTERNATOR Revised: July 13, 1983
