Piper PA-28RT-201T - Page 210

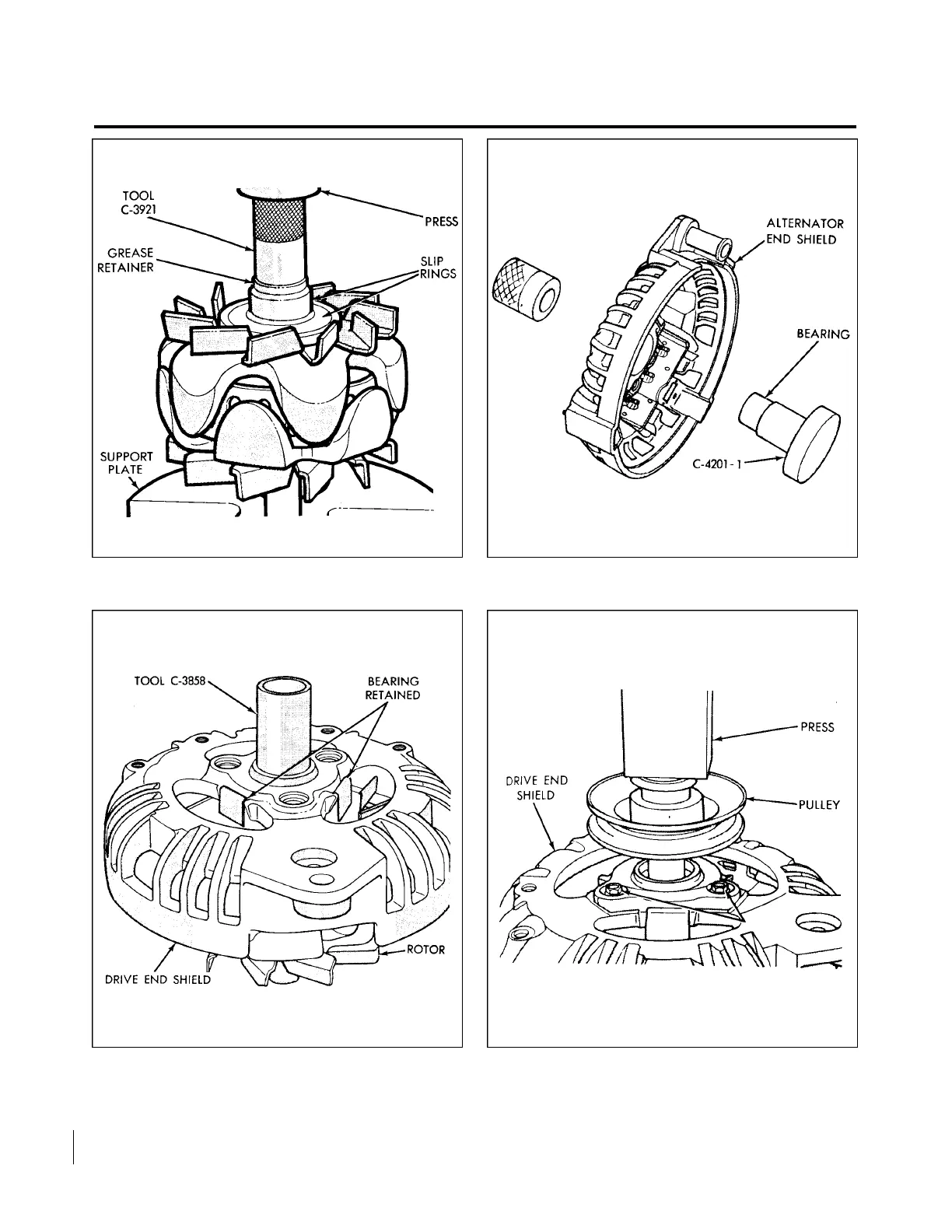

Figure 24-18. Installation of Grease Retainer Figure 24-l9. Installation of Rectifier End
Shield Bearing
Figure 24-20. Installation of Drive End Figure 24-21. Installation of Pulley
Shield Bearing
24-32-14
EFFECTIVITY: Page 24-23
CHRYSLER ALTERNATOR Revised: July 13, 1983
1I18
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
