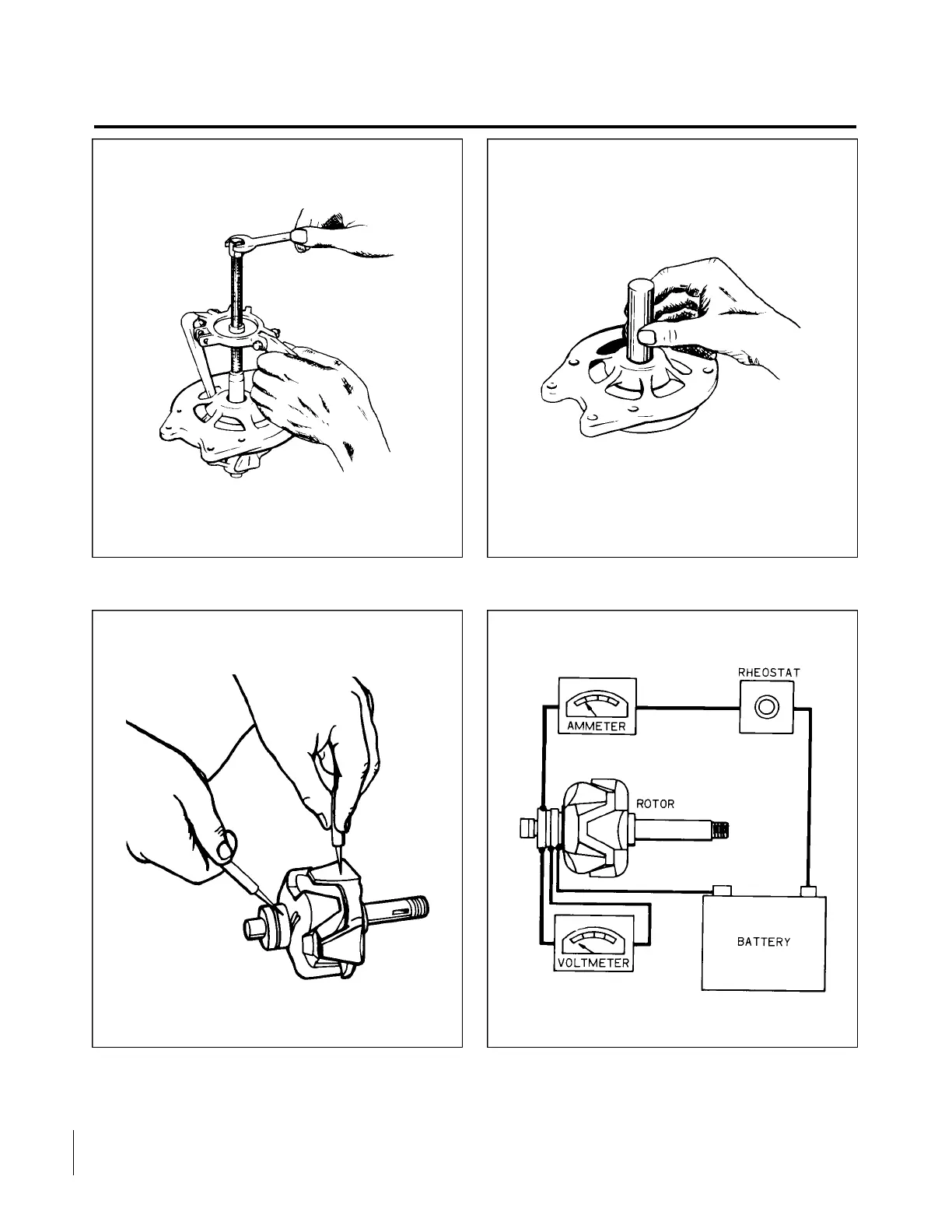

Figure 24-31. Removal of Drive End Head Figure 24-32. Removal of End Head Bearing
Figure 24-33. Testing Rotor for Ground Figure 24-34. Testing Rotor for Shorts
