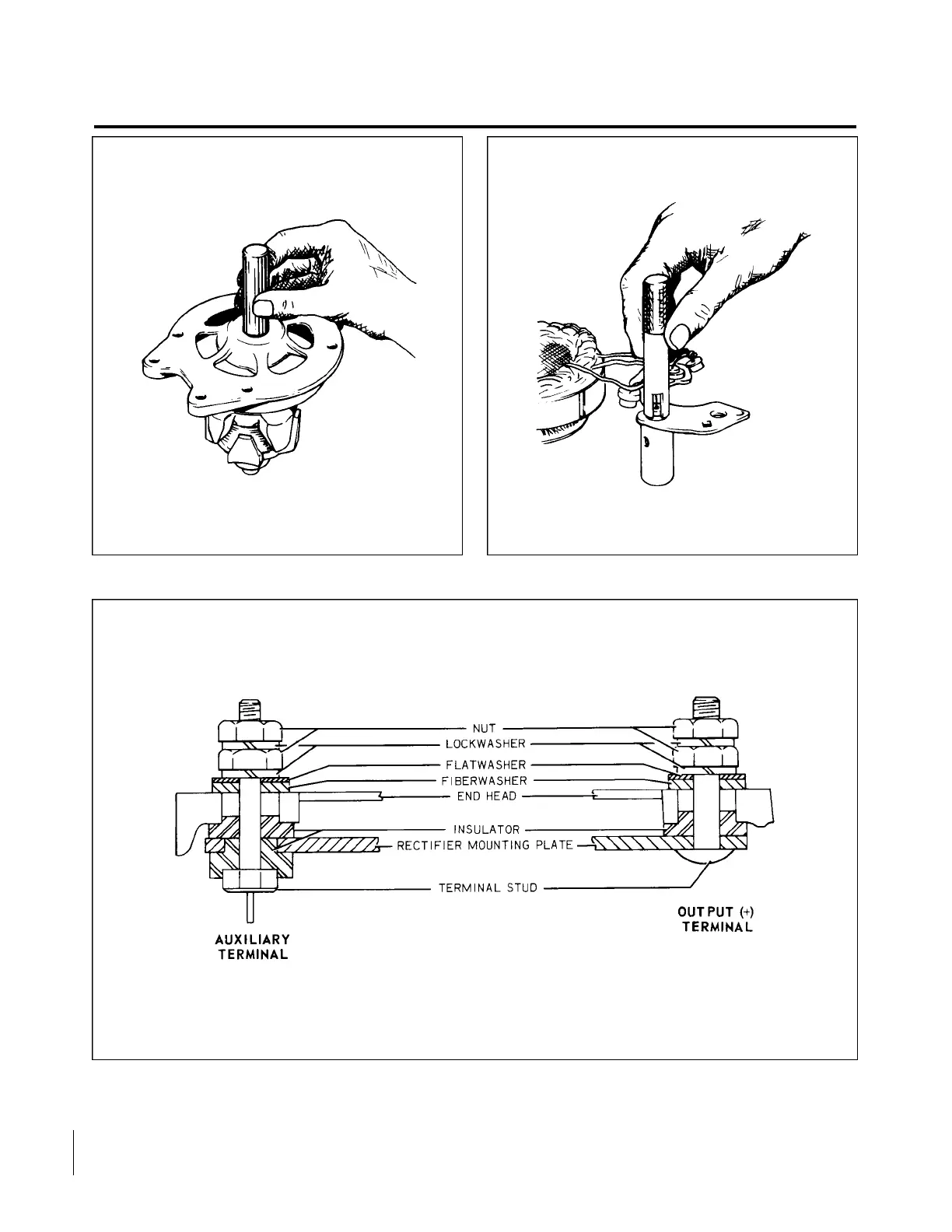

Figure 24-35. Installation of Drive End Head Figure 24-36. Installation of Rectifier
Figure 24-37. Terminal Assembly (Prestolite)
