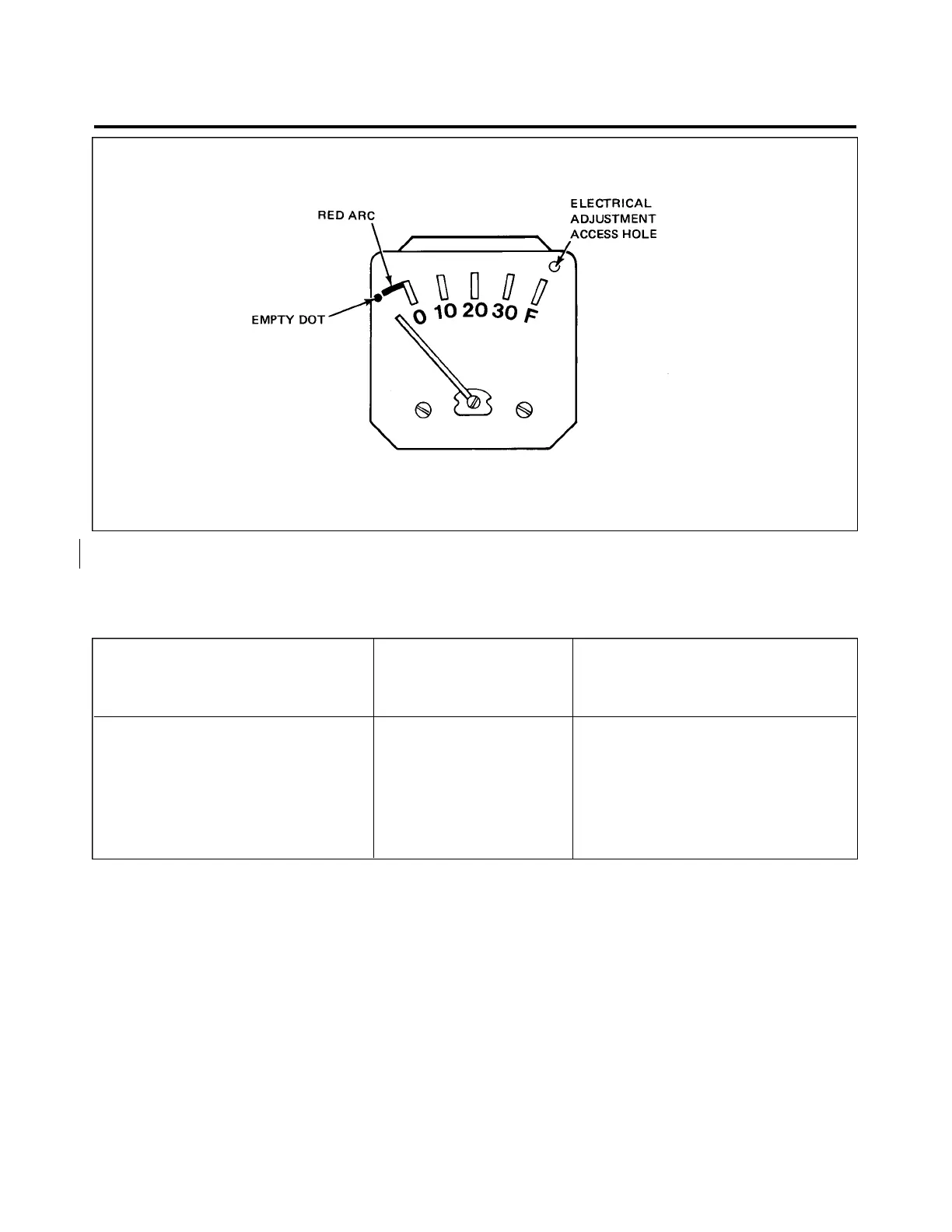

Figure 28-8. Fuel Gauge
CHART 2802. TRANSMITTER/FUEL GAUGE TOLERANCES
Tolerance
Actual Fuel in Gauge Reading (Plus or Minus)
Tank (U.S. Gal.) (U.S. Gal.) (Needle-Widths)
Full F 2
32.5 30 2
22.5 20 2
12.5 10 1
2.5 Zero Plus 0-Minus 1
0 Empty Empty Dot 1/2
28-40-04
Page 28-19
Revised: December 21, 1981
