Page #323 background imageLoading...
Page #323 background image

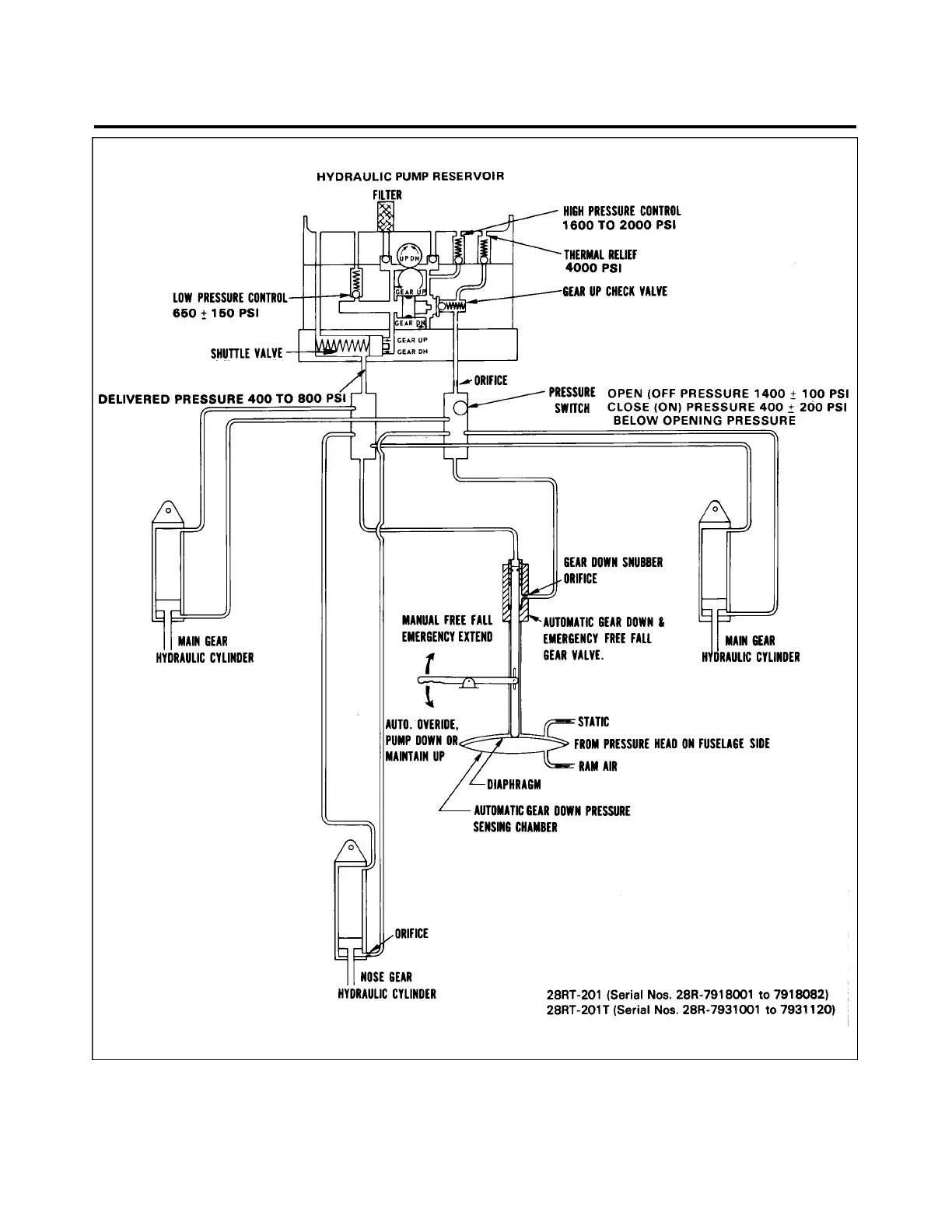

Figure 29-1. Schematic Diagram of Hydraulic System
29-00-02
Page 29-02
Revised: November 6, 1979
2B20
PIPER AIRCRAFT
PA-28RT-201 / 201T
MAINTENANCE MANUAL
